Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Instrument panel tweeter LH | 2. | Front tweeter LH | 3. | Steering switch |
| 4. | Multifunction switch | 5. | Preset switch | 6. | Front tweeter RH |
| 7. | Instrument panel tweeter RH | 8. | Display unit | 9. | Center speaker |
| 10. | AV control unit (view with center stack removed) | 11. | Microphone | 12. | USB interface |
| 13. | Front auxiliary input jacks | 14. | Front door speaker LH | 15. | Front door speaker RH |
| 16. | Rear door speaker LH | 17. | Rear door speaker RH | 18. | Rear side speaker LH |

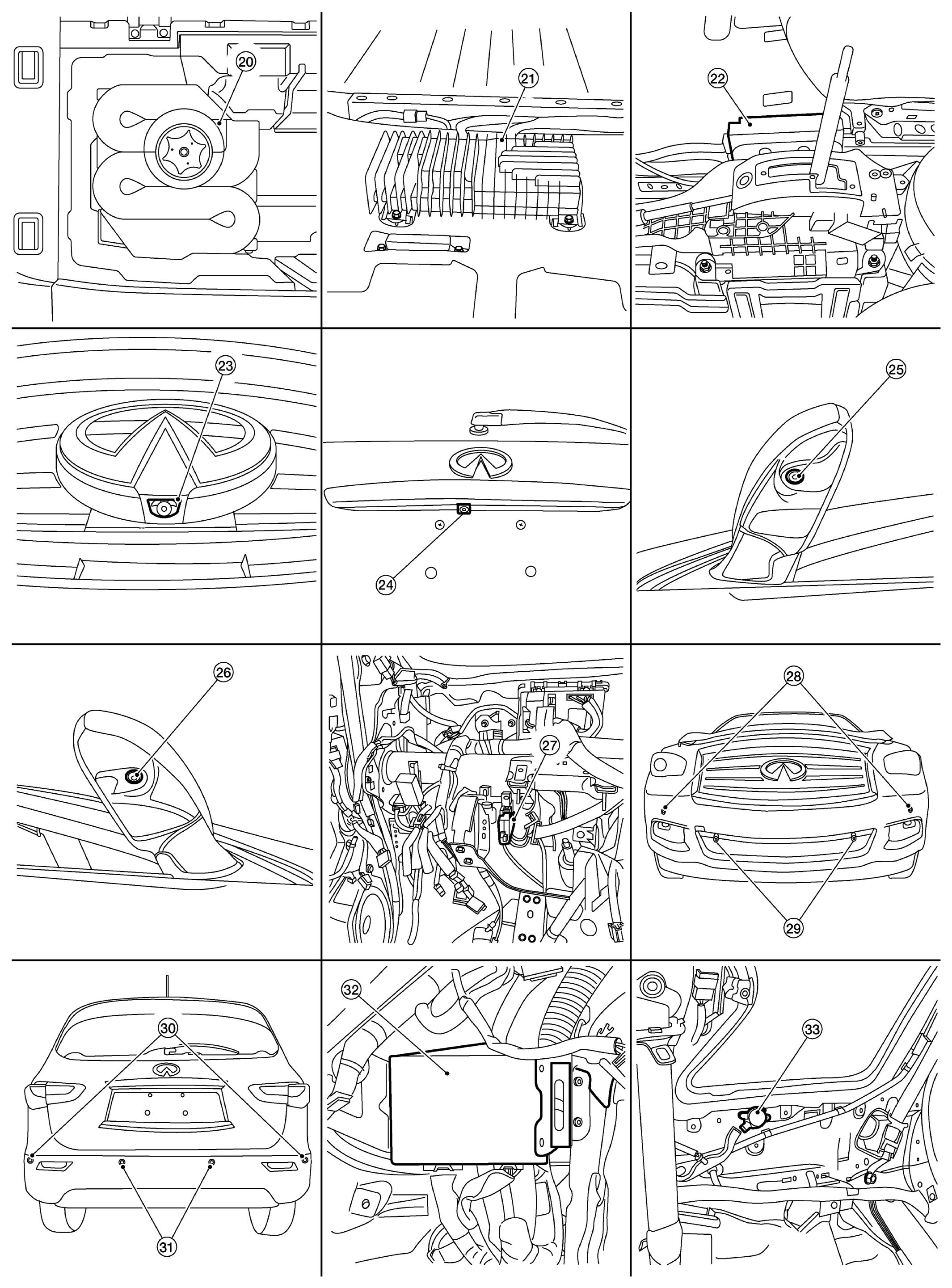

| 19. | Rear side speaker RH | 20. | Subwoofer | 21. | Bose® speaker amp. |
| 22. | Around view monitor control unit | 23. | Front camera | 24. | Rear view camera |
| 25. | Door mirror LH (side camera) | 26. | Door mirror RH (side camera) | 27. | Sonar control unit |
| 28. | Front sonar sensors outer | 29. | Front sonar sensors inner (if equipped) | 30. | Rear sonar sensors outer |
| 31. | Rear sonar sensors inner (if equipped) | 32. | Video distributor (if equipped) | 33. | Sonar buzzer |

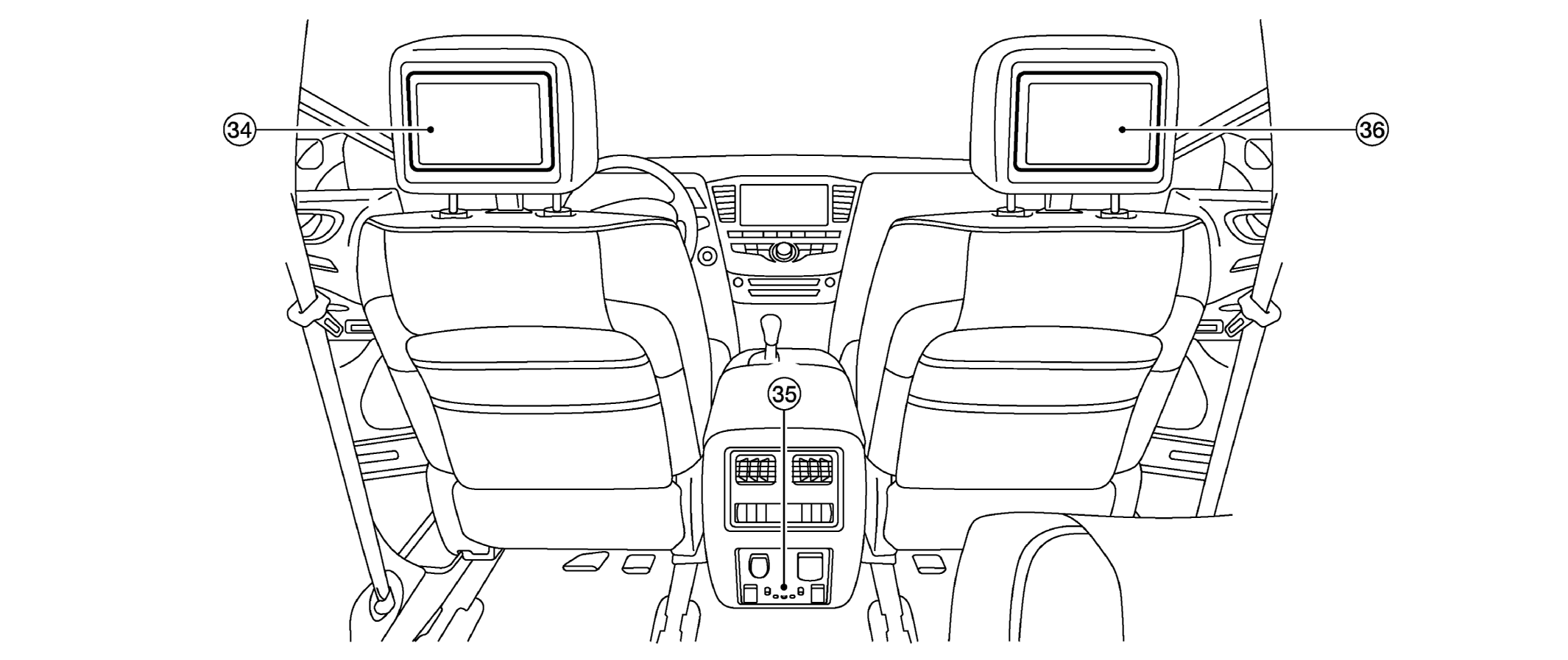

| 34. | Headrest display unit (driver seat) (if equipped) | 35. | Rear auxiliary input jacks (if equipped) | 36. | Headrest display unit (passenger seat) (if equipped) |
