Calibration Flowchart
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

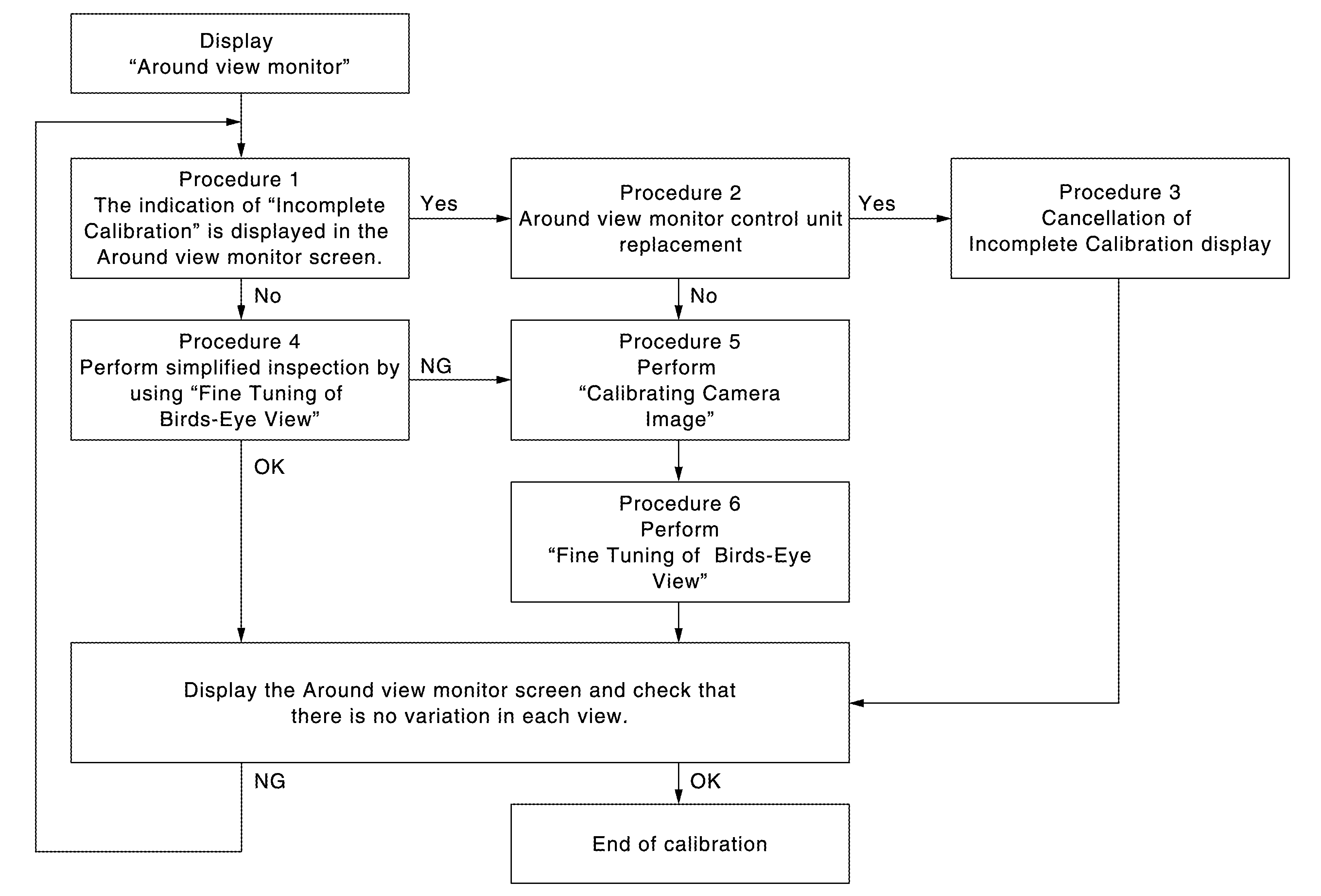

Following the flowchart shown in illustration, perform the calibration.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:

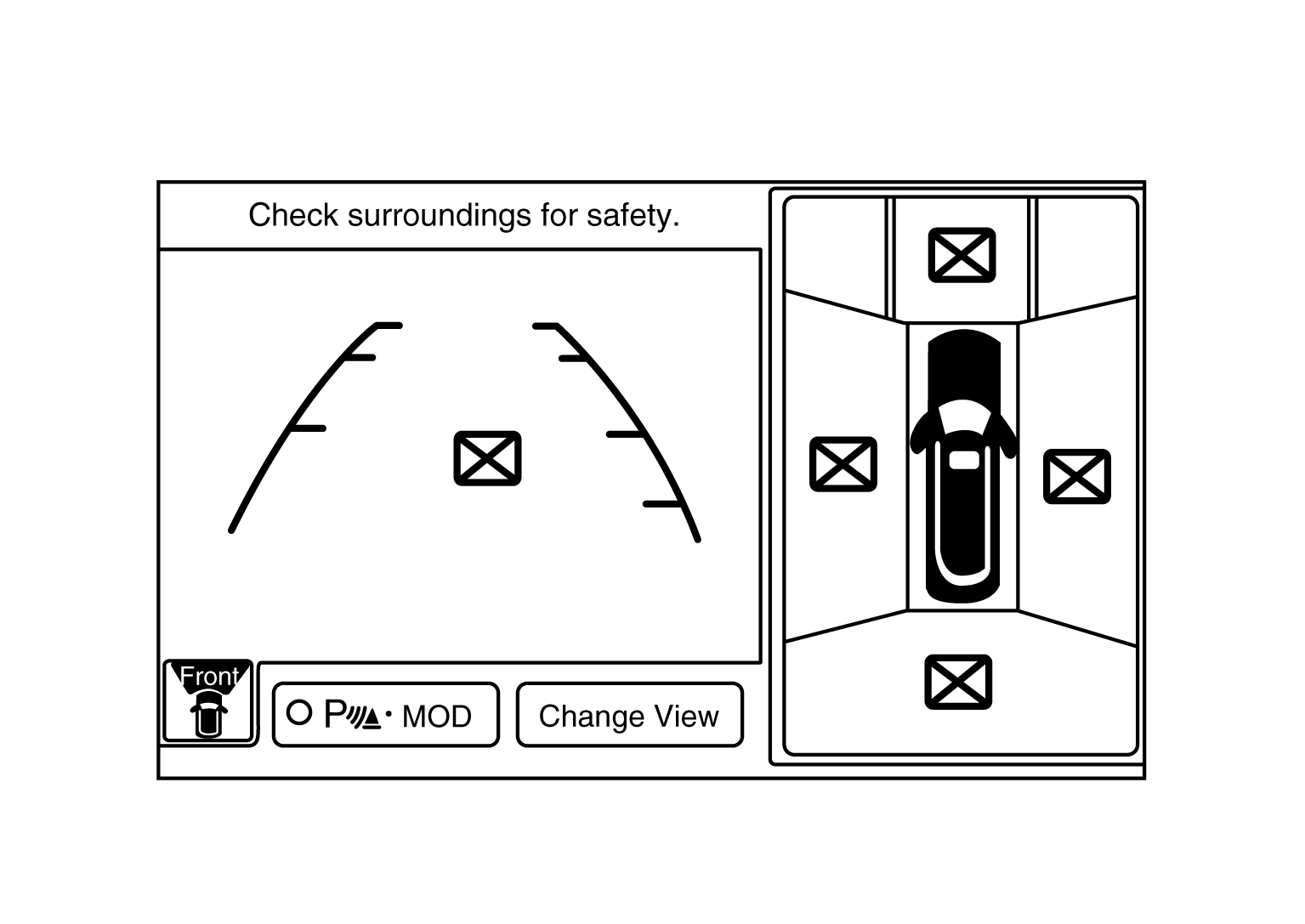

View in the incomplete calibration state is indicated by "
" on the around view monitor.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
