Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

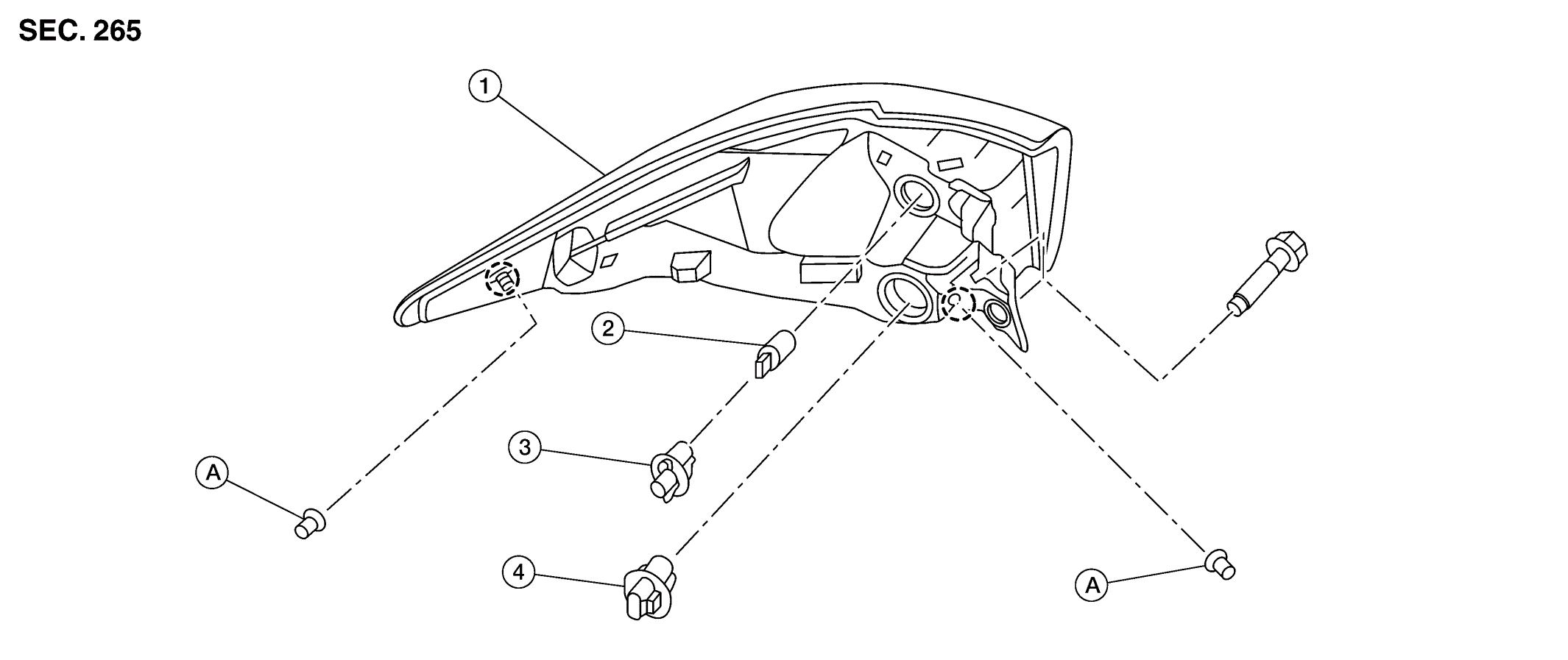

GNSAWLIA2196ZZ-196Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear combination lamp 2. Rear turn signal bulb 3. Rear turn bulb socket
4. Rear LED lamp harness connector A. Grommet MARU-H Locating pin
