Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

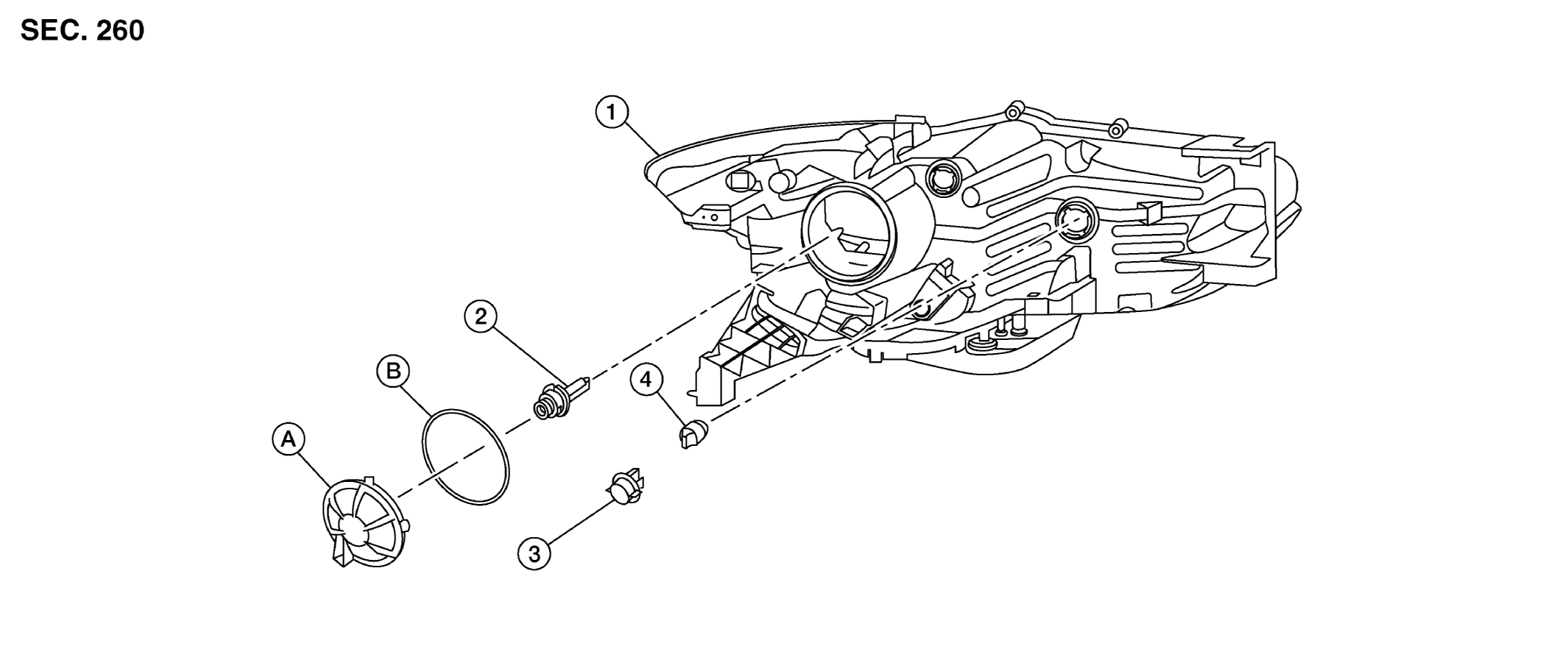

GNSAWLIA2793ZZ-793Courtesy of NISSAN NORTH AMERICA, INC.
1. Front combination lamp 2. Xenon bulb 3. Front turn signal lamp socket
4. Parking lamp socket A. Seal packing B. Plastic cover
