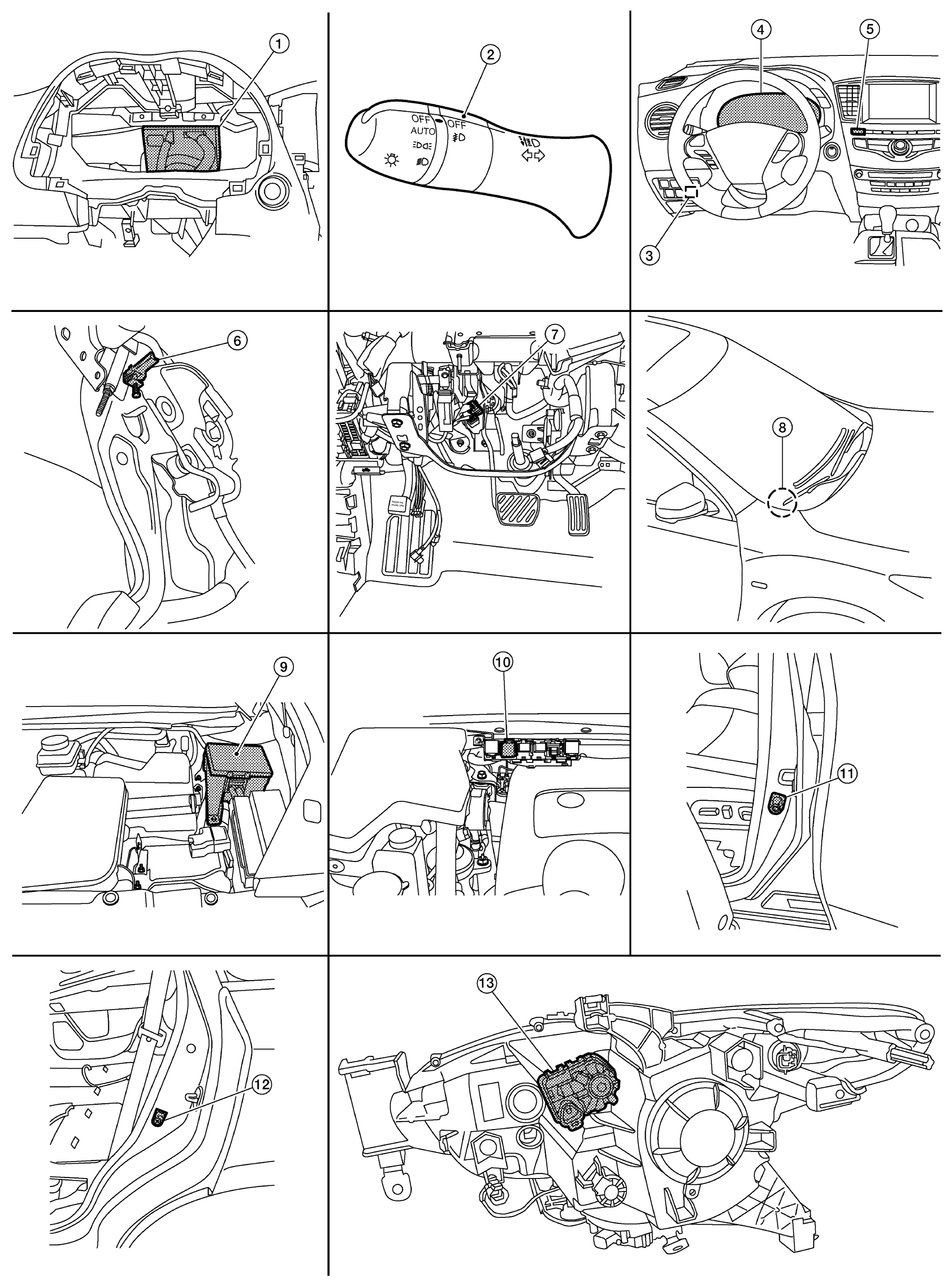

Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | BCM (view with combination meter removed) |
2. | Combination switch (lighting and turn signal switch) |
3. | Headlamp aiming switch |
| 4. | Combination meter | 5. | Multifunction switch (hazard switch) |
6. | Parking brake switch |
| 7. | Stop lamp switch | 8. | Optical sensor | 9. | IPDM E/R, (Front fog lamp relay, Headlamp high relay, Headlamp low relay, Tail lamp relay) |
| 10. | Daytime running light relay | 11. | Front door switch LH (RH similar) |
12. | Rear door switch LH (RH similar) |
| 13. | Front combination lamp RH (headlamp aiming motor) (LH similar) |
