Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

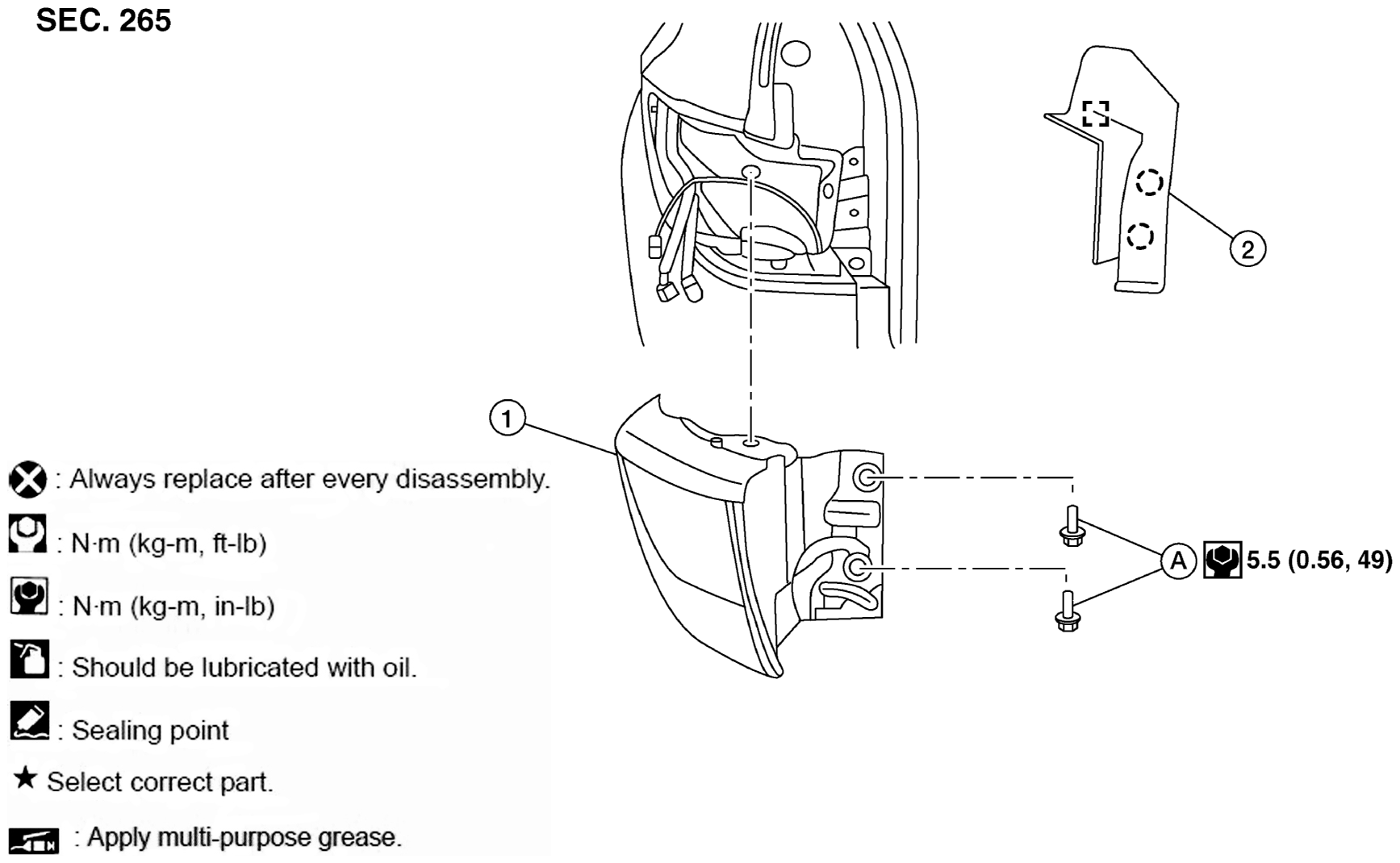

Fig 1: Rear Combination Lamp With Torque Specifications
GNSAWLIA2791ZZ-791Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear combination lamp 2. Rear combination lamp bolt cover A. Bolt
SHIKAKU-H Metal clip MARU-H Pawl
