Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

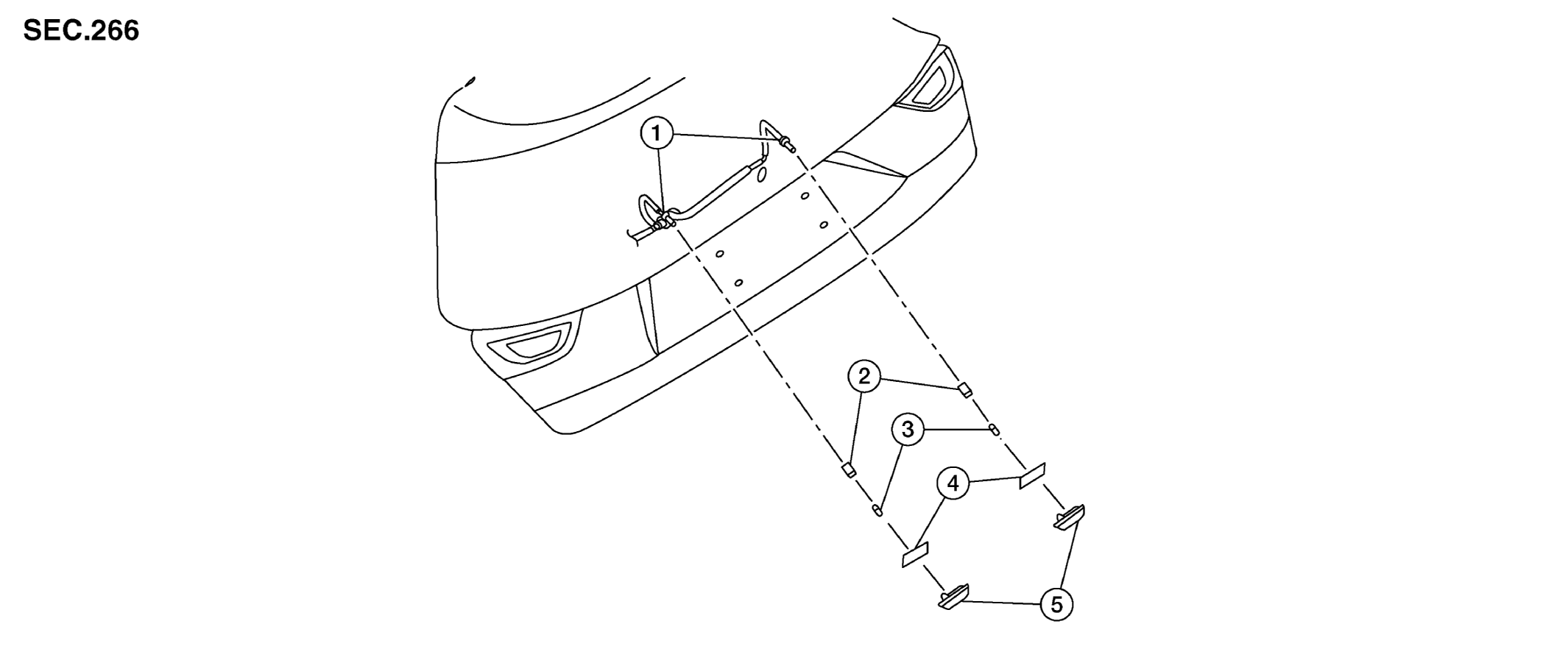

GNSAWLIA2792ZZ-792Courtesy of NISSAN NORTH AMERICA, INC.
1. License plate lamp harness 2. License plate lamp socket 3. License plate lamp bulb
4. License plate lamp gasket 5. License plate lamp
