Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

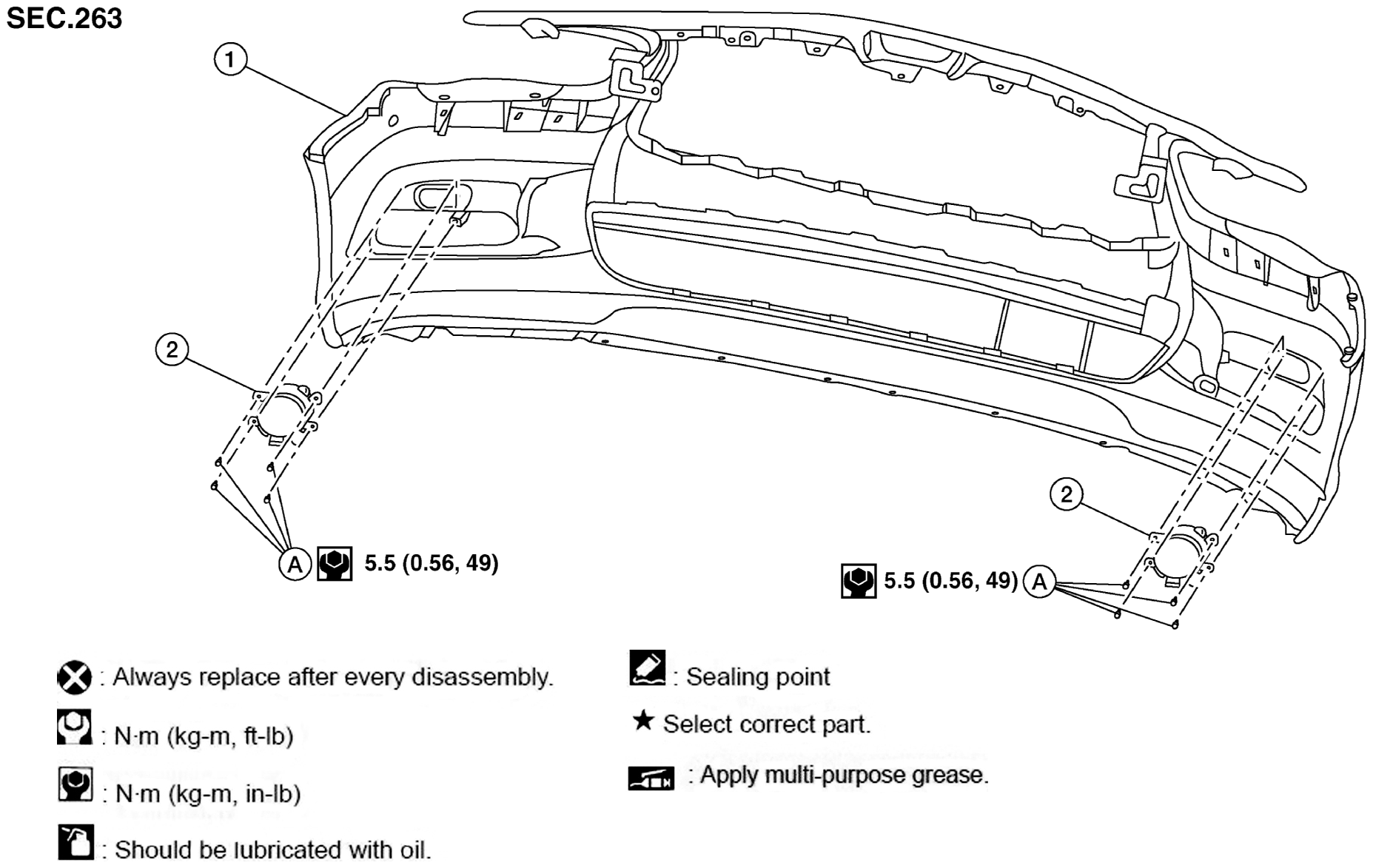

Fig 1: Front Fog Lamp With Torque Specifications
GNSALLIA2015ZZ-015Courtesy of NISSAN NORTH AMERICA, INC.
1. Front bumper fascia 2. Front fog lamp A. Bolt
