Aiming Adjustment Screw

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

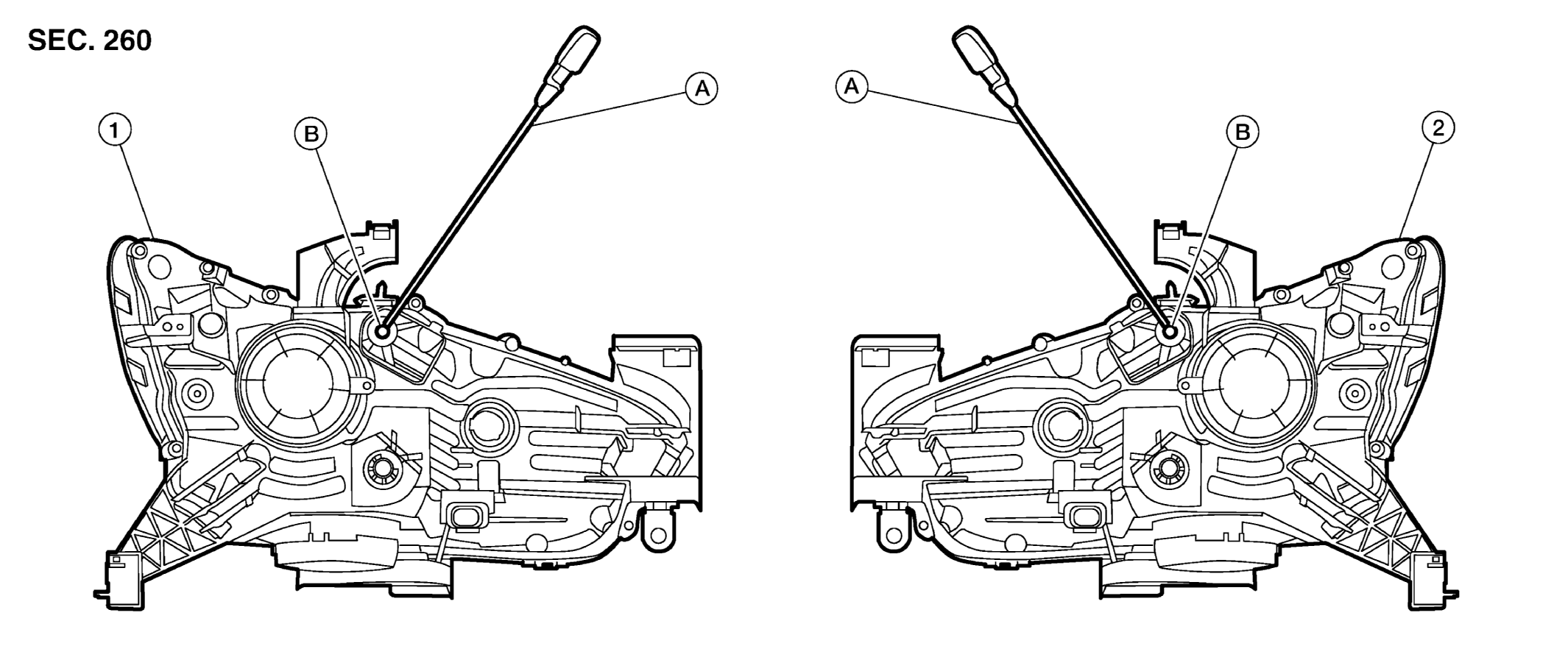

GNSAWLIA2806ZZ-806Courtesy of NISSAN NORTH AMERICA, INC.
A. Front combination lamp (LH) B. Front combination lamp (RH) A. :Suitable tool
B. Headlamp LH HI/LO (UP/DOWN) adjustment screw
