Aiming Adjustment Procedure: Notes
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

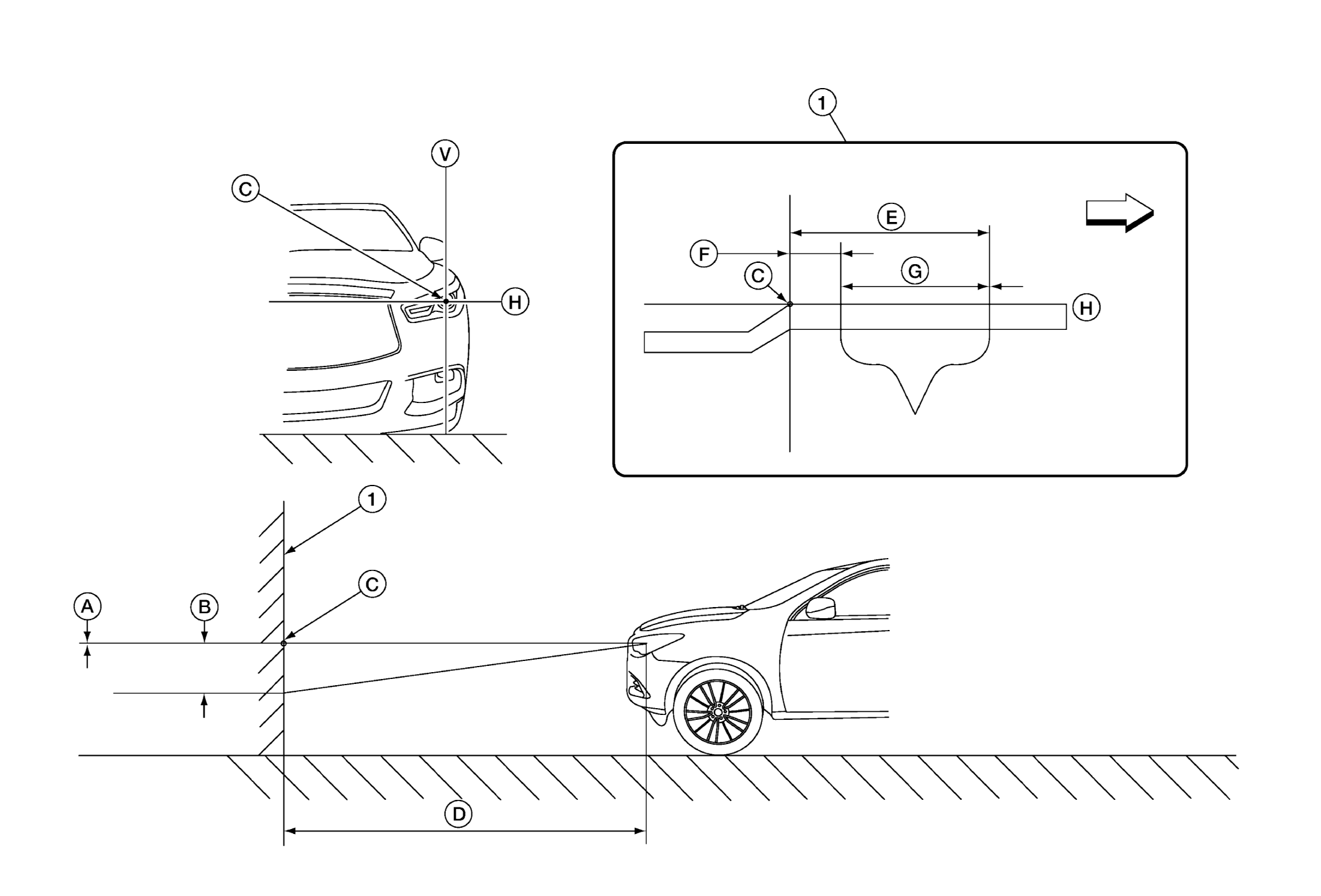

Aiming Chart
| 1. | Adjustment screen | A. | Highest cutoff line height | B. | Lowest cutoff line height |
| C. | Headlamp bulb center (H-V point) | D. | Distance of headlamp aiming screen from vehicle 7.62 m (25 ft) | E. | Maximum aim evaluation distance from vertical center on aiming screen 399 mm (3°R) |
| F. | Minimum aim evaluation distance from vertical center on aiming screen 133 mm (1°R) | G. | Aim evaluation area | H. | Horizontal aiming evaluation line |
| V. | Vertical aiming evaluation line | Right |
| A (Highest cutoff line height) | 13.3 mm (0.5 in) | 0.1° up |
| B (Lowest cutoff line height) | 53.2 mm (2.1 in) | 0.4° down |
