Aiming Adjustment
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Check the following conditions before performing the aiming adjustment.
- Keep all tires inflated to correct pressure.
- Place vehicle on level ground.
- See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and tools). Have the driver or equivalent weight placed in driver seat.
- When performing adjustment, if necessary, cover the headlamps and opposite fog lamp.

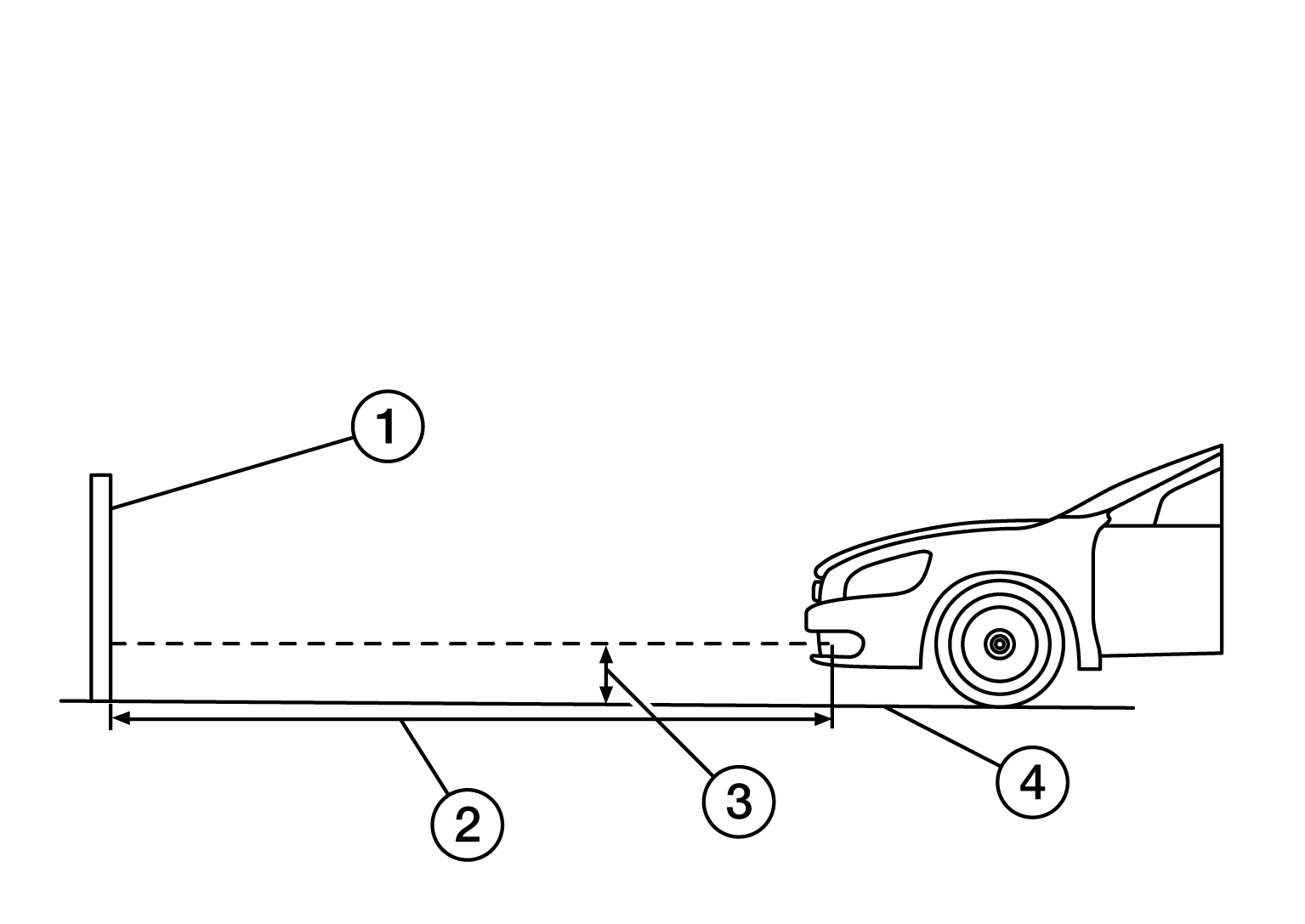

- Set the distance between the screen and the center of the fog lamp lens as shown in illustration.
(1) Aiming screen or a matte white surface
(2) 7.62 m (25 ft)
(3) Floor to center of fog lamp lens
(4) Floor
- Turn front fog lamps ON.

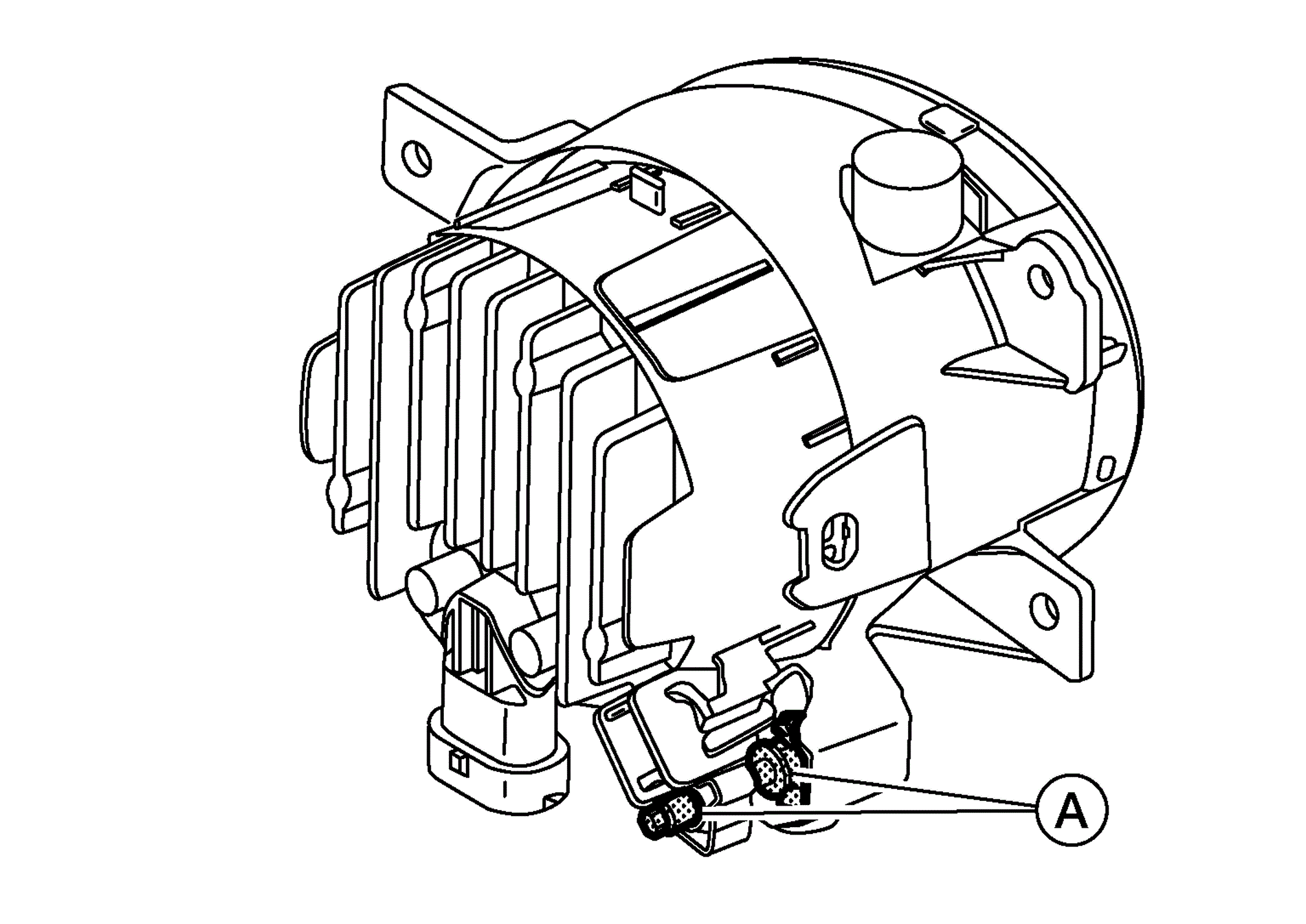

- Access adjustment screw (A) from underneath front bumper. Use a suitable tool to adjust. Turn screw clockwise to raise pattern and counterclockwise to lower pattern. Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is 100 mm (4 in) below the height of the fog lamp centers as shown in illustration.
1. Vertical center line of fog lamp (LH) 2. Lamp center above ground 3. Fog lamp high intensity area (LH) 4. Vertical center line of fog lamp (RH) 5. Vertical center axis A. 100mm (4in) NOTE:(LH) Fog lamp aiming specifications shown in illustration, (RH) similar.
