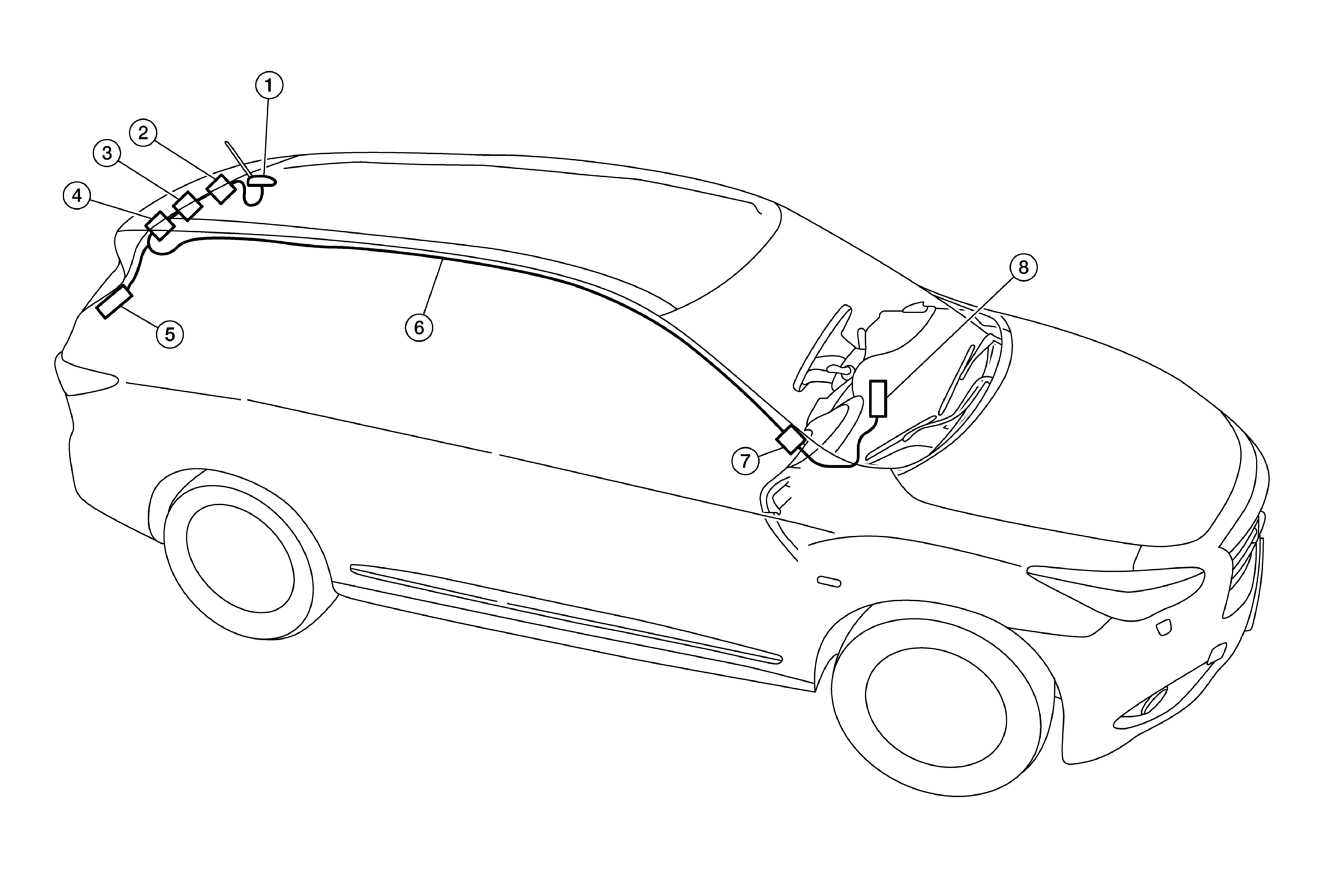

Location Of Antennas
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Antenna base (satellite antenna and antenna amp) |
2. |
M502 |
3. |
M501 |
| 4. |
M503, M504 |
5. |
M505 |
6. |
Antenna Feeder |
| 7. |
M95, M500 |
8. |
AV control unit M124 |
|
|
