Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

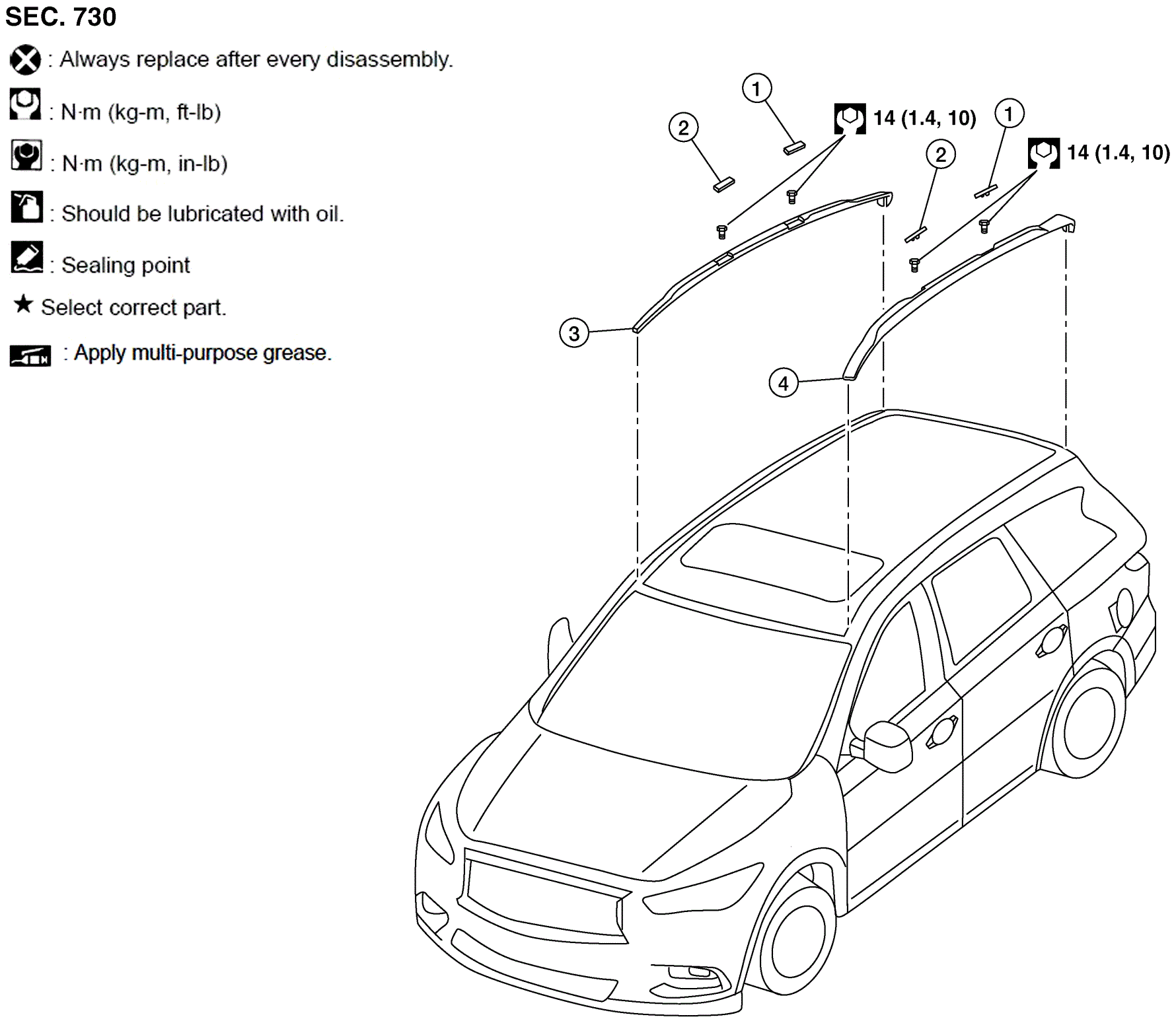

Fig 1: Roof Rack With Torque Specifications
GNSAWKIA3978ZZ-978Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear bolt cover (LH/RH) 2. Front bolt cover (LH/RH) 3. Roof rack (RH)
4. Roof rack (LH)
