Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

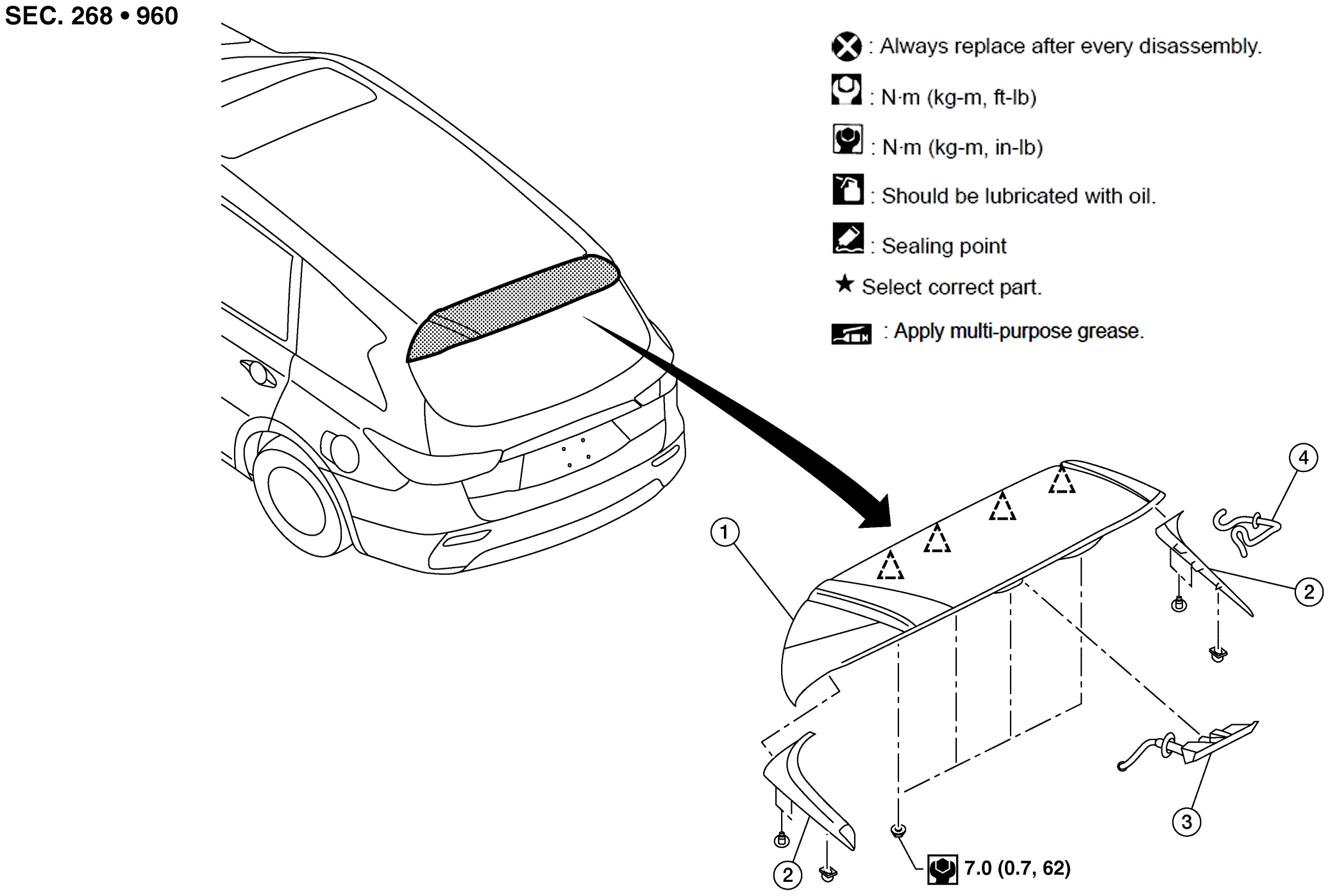

Fig 1: Rear Spoiler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear spoiler	2.	Rear spoiler side trim cover (LH/RH)	3.	High-mounted stop lamp
4.	Rear washer nozzle		Clip
