Removal And Installation: Installation
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
NOTE:
Unit: mm (in)

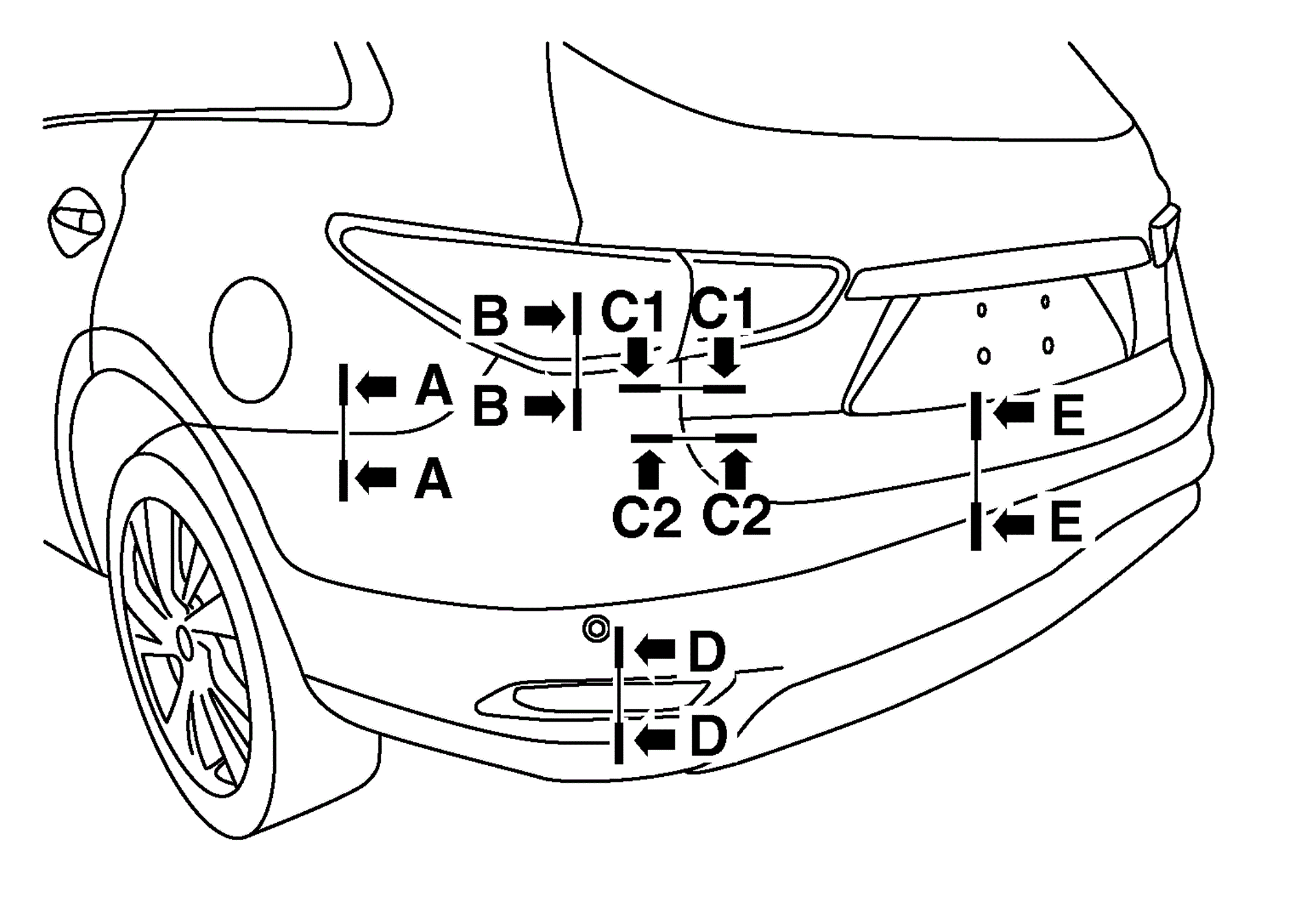

| Section | Measurement | Minimum | Target Value | Maximum |
|---|---|---|---|---|
| A-A | Clearance | 0.0 (0.00) | 0.3 (0.01) | 1.3 (0.05) |
| A-A | Surface height | 0.0 (0.00) | 1.0 (0.04) | 2.0 (0.08) |
| B-B | Clearance | 0.0 (0.00) | 1.5 (0.06) | 3.0 (0.12) |
| C1-C1 | Clearance | 5.0 (0.12) | 7.0 (0.28) | 9.0 (0.35) |
| C1-C1 | Surface height | -2.0 (-0.08) | 0.0 (0.00) | 2.0 (0.08) |
| C2-C2 | Clearance | 5.0 (0.12) | 7.0 (0.28) | 9.0 (0.35) |
| D-D | Clearance | 4.5 (0.18) | 7.0 (0.28) | 9.5 (0.37) |
| E-E | Clearance | 5.6 (0.22) | 8.0 (0.31) | 10.4 (0.41) |
