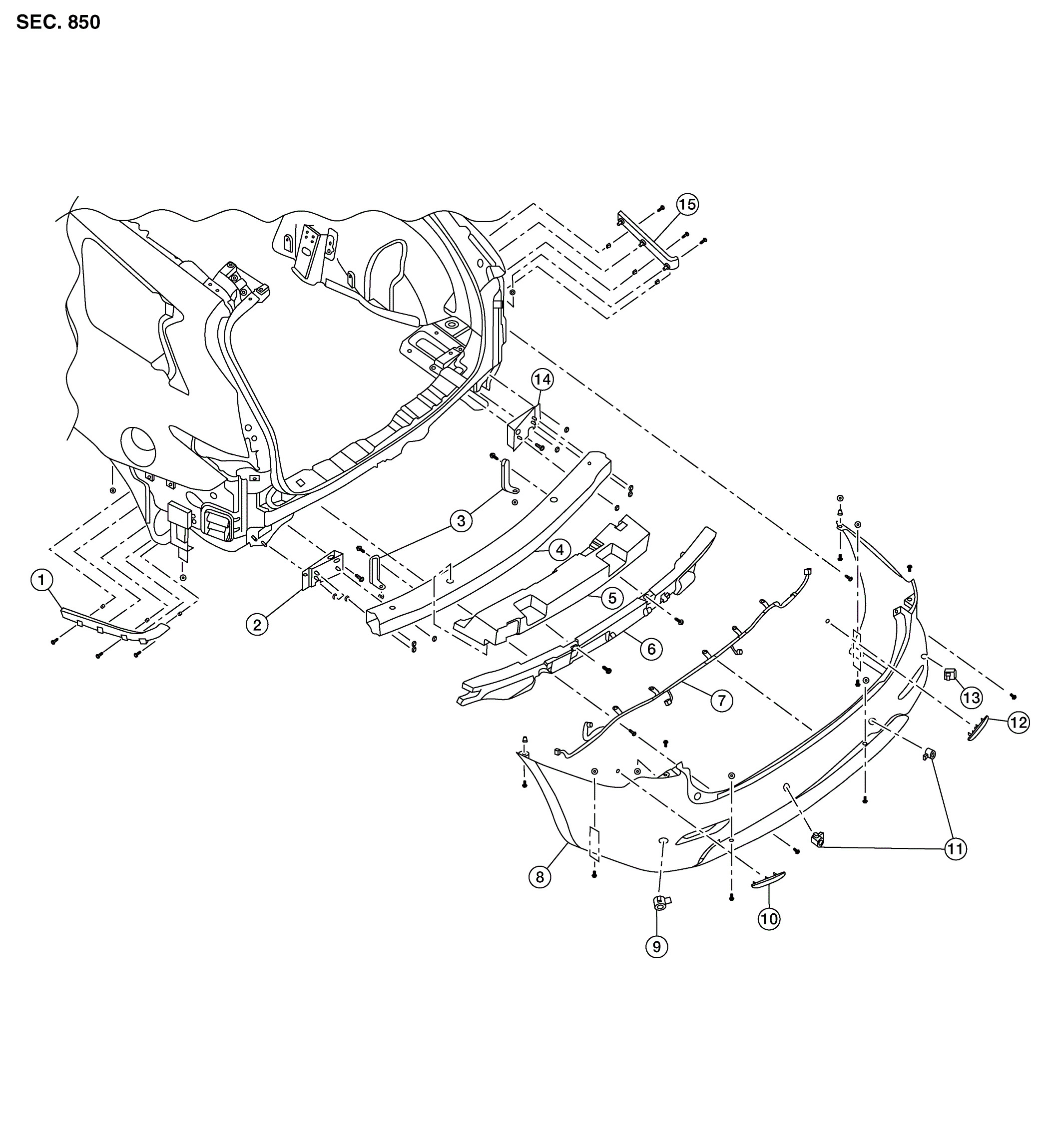

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Rear bumper side bracket (LH) | 2. | Rear bumper reinforcement support (LH) | 3. | Rear bumper fascia lower bracket (LH/RH) |
| 4. | Rear bumper reinforcement | 5. | Rear bumper energy absorber 1 | 6. | Rear bumper energy absorber 2 |
| 7. | Rear sonar sensor harness | 8. | Rear bumper fascia | 9. | Rear sonar sensor outer (LH) (if equipped) |
| 10. | Rear bumper fascia reflector (LH) | 11. | Rear sonar sensors inner (LH/RH) (if equipped) | 12. | Rear bumper fascia reflector (RH) |
| 13. | Rear sonar sensor outer (RH) (if equipped) | 14. | Rear bumper reinforcement support (RH) | 15. | Rear bumper side bracket (RH) |
