Removal And Installation: Installation

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

NOTE:

The following table shows the specified values for checking normal installation status.
Fitting adjustment cannot be performed.

Courtesy of NISSAN NORTH AMERICA, INC.

Unit: mm (in)

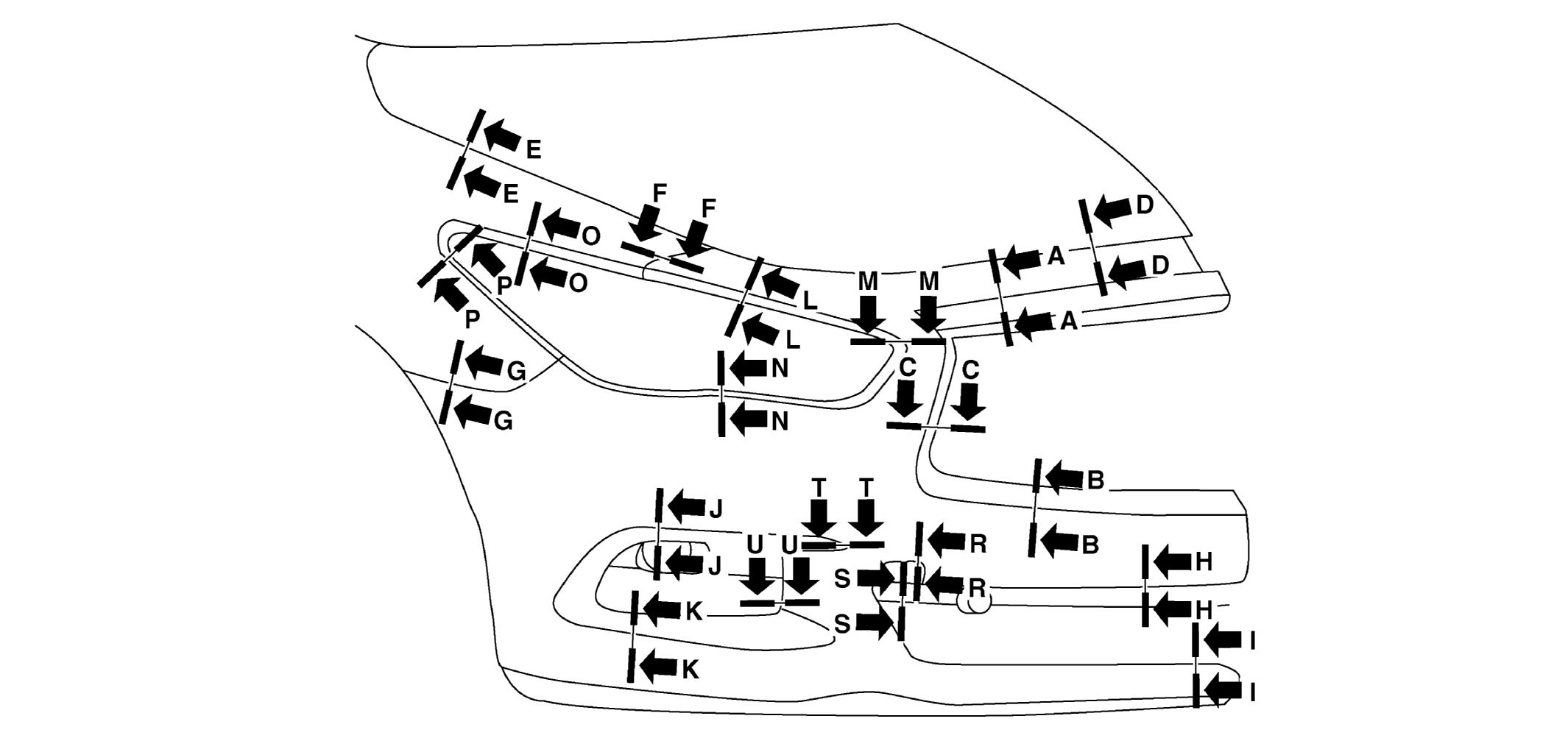

Section	Measurement	Minimum	Target Value	Maximum
A-A	Clearance	0.2 (0.01)	1.5 (0.06)	2.8 (0.11)
A-A	Surface height	-0.8 (-0.03)	0.3 (0.01)	1.1 (0.04)
B-B	Clearance	0.2 (0.01)	1.5 (0.06)	2.8 (0.11)
C-C	Clearance	0.2 (0.01)	1.5 (0.06)	2.8 (0.11)
D-D	Clearance	2.1 (0.08)	4.1 (0.16)	6.1 (0.24)
D-D	Surface height	-0.5 (-0.02)	1.0 (0.04)	2.5 (0.10)
E-E	Clearance	2.5 (0.10)	3.5 (0.14)	4.5 (0.18)
E-E	Surface height	-0.5 (0.02)	1.0 (0.04)	2.5 (0.10)
F-F	Clearance	0.0 (0.00)	0.0 (0.00)	0.7 (0.03)
F-F	Surface height	-1.0 (-0.04)	0.0 (0.00)	1.0 (0.04)
G-G	Clearance	0.3 (0.01)	0.3 (0.01)	1.1 (0.04)
G-G	Surface height	-0.3 (-0.01)	0.7 (0.04)	1.7 (0.07)
H-H	Clearance	0.0 (0.00)	0.1 (0.04)	2.0 (0.08)
I-I	Clearance	0.0 (0.00)	1.0 (0.04)	2.0 (0.08)
J-J	Clearance	0.0 (0.00)	1.0 (0.04)	2.0 (0.08)
K-K	Clearance	0.0 (0.00)	1.0 (0.04)	2.0 (0.08)
L-L	Clearance	0.2 (0.01)	1.5 (0.06)	3.2 (0.13)
M-M	Clearance	0.2 (0.01)	1.5 (0.06)	3.2 (0.13)
N-N	Clearance	0.2 (0.01)	1.5 (0.06)	3.2 (0.13)
O-O	Clearance	0.2 (0.01)	1.5 (0.06)	3.0 (0.12)
P-P	Clearance	0.1 (0.01)	1.5 (0.06)	2.9 (0.11)
R-R	Clearance	0.0 (0.00)	0.5 (0.02)	1.0 (0.04)
R-R	Surface height	-0.2 (-0.01)	0.3 (0.01)	0.8 (0.03)
S-S	Clearance	0.0 (0.00)	1.0 (0.04)	2.0 (0.08)
T-T	Clearance	-0.2 (-0.01)	1.0 (0.04)	2.2 (0.09)
U-U	Clearance	0.0 (0.00)	0.0 (0.00)	1.2 (0.05)
