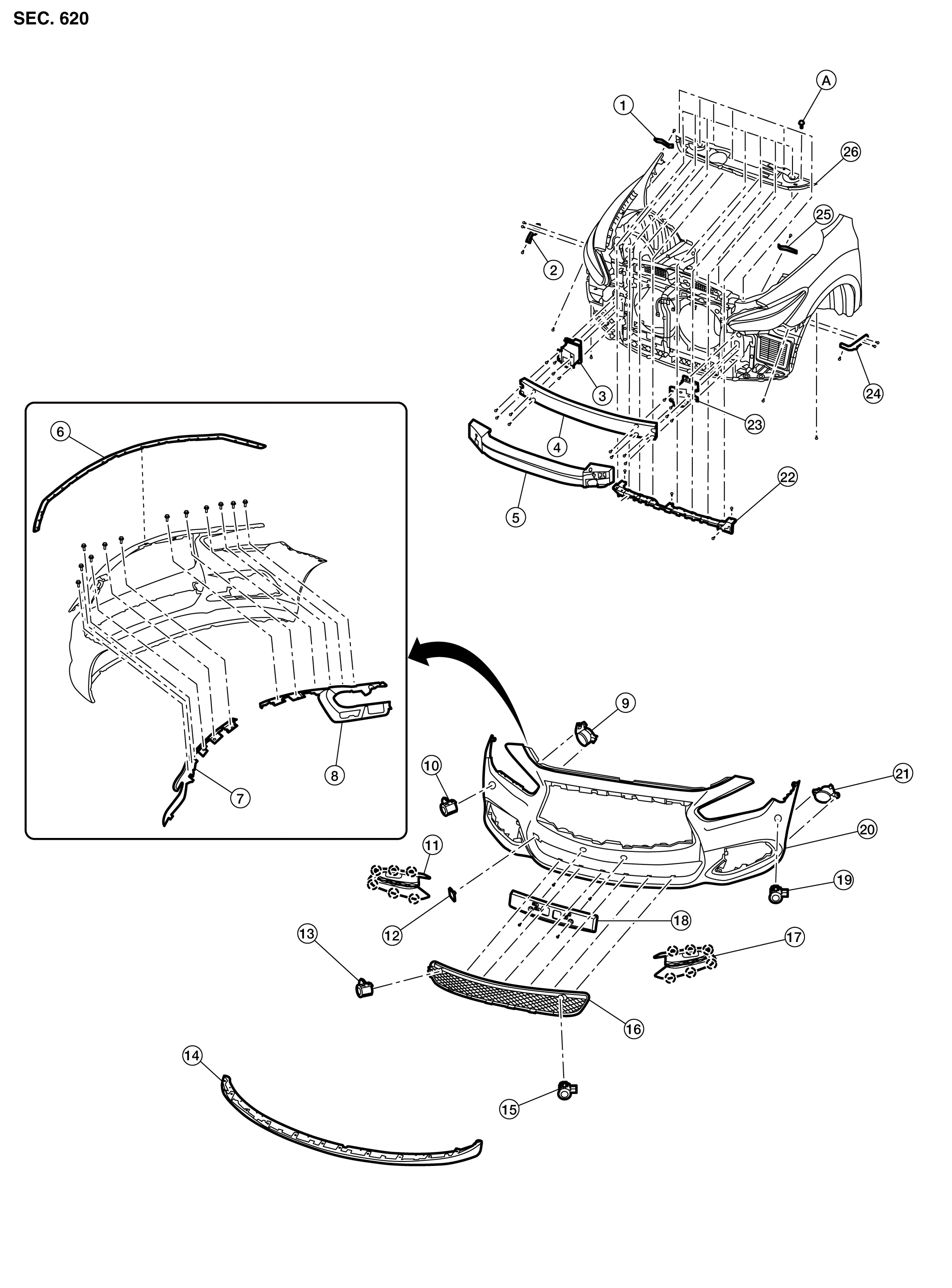

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Front bumper fascia upper bracket (RH) | 2. | Front bumper side bracket (RH) | 3. | Front bumper reinforcement support (RH) |
| 4. | Front bumper reinforcement | 5. | Front energy absorber | 6. | Front bumper fascia hood seal |
| 7. | Front bumper fascia inner stiffener (LH) | 8. | Front bumper fascia inner stiffener (RH) | 9. | Front fog lamp (RH) |
| 10. | Front sonar sensor outer [RH (if equipped)] | 11. | Front fog lamp finisher (RH) | 12. | Tow cover |
| 13. | Front sonar sensor inner [RH (if equipped)] | 14. | Front spoiler | 15. | Front sonar sensor inner [LH (if equipped)] |
| 16. | Front lower grille | 17. | Front fog lamp finisher (LH) | 18. | Front license plate bracket |
| 19. | Front sonar sensor outer [LH (if equipped)] | 20. | Front bumper fascia | 21. | Front fog lamp (LH) |
| 22. | Front bumper fascia upper retainer bracket | 23. | Front bumper reinforcement support (LH) | 24. | Front bumper fascia upper bracket (LH) |
| 25. | Front bumper side bracket (LH) | 26. | Core support cover | A. | Clip |
| Pawl |
