Warning Lamp Display

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Condition		Description	Display on combination meter
Warning display	When the dynamic driver assistance switch is turned ON with settings of DCA system, LDP system and Blind Spot Intervention system OFF	The DCA system is not activated. The DCA system switch indicator blinks.	Courtesy of NISSAN NORTH AMERICA, INC.

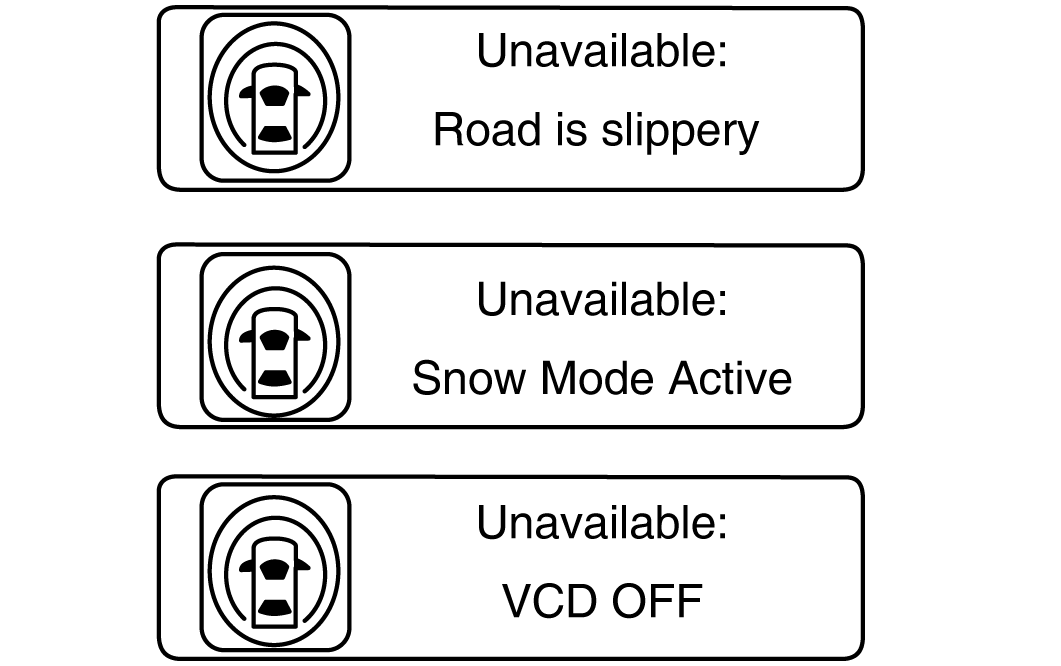

	When the road is slippery and VDC or ABS (including the TCS) operates When the VDC is turned OFF When the SNOW mode switch is turned ON	The DCA system is automatically canceled. The chime will sound and the DCA system switch indicator will blink. NOTE: The system operates if the dynamic driver assistance switch is turned OFF→ON after the condition improves.	Courtesy of NISSAN NORTH AMERICA, INC.

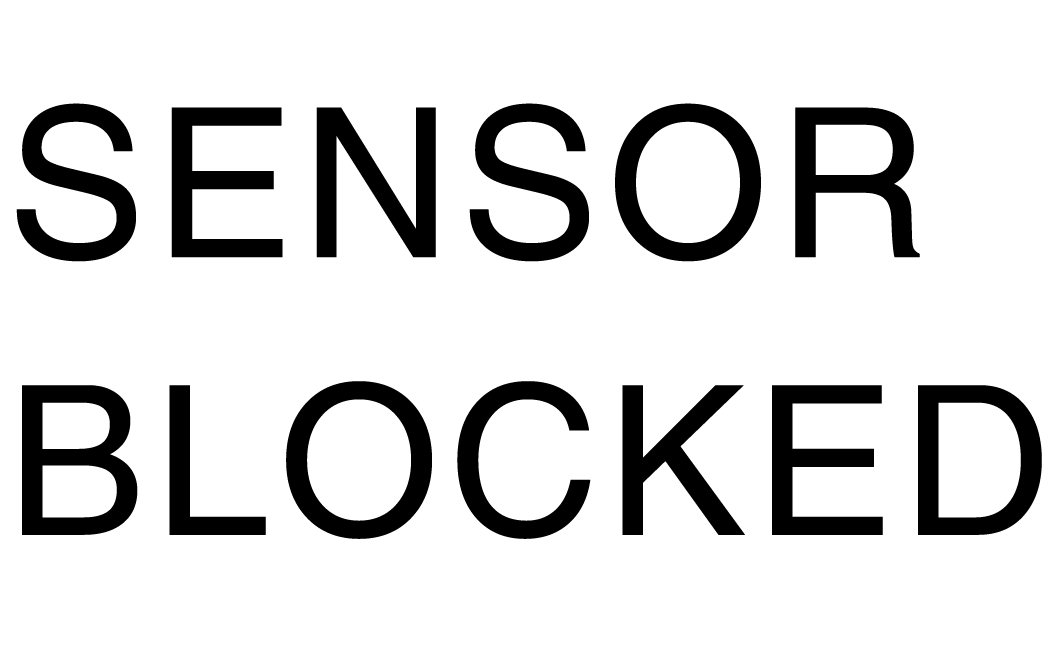

	When the sensor window is dirty, making it impossible to detect a vehicle ahead	The DCA system is automatically canceled. The chime sounds and the ICC system warning lamp will come on and the "Sensor Blocked" indicator will appear. NOTE: Stop the vehicle in a safe location and turn the ignition switch OFF. Clean the dirty area. The system returns to normal condition when turning the ignition switch ON again.	Courtesy of NISSAN NORTH AMERICA, INC.
	When the DCA system is not operating properly	The chime sounds and the DCA system warning indicator (orange) will come on. NOTE: Turn the ignition switch OFF, and then turn the ignition switch ON again. If there is no malfunction, the system returns to the normal condition.	Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

When the DCA system is automatically canceled, the cancellation condition can be displayed on "WORK SUPPORT" of CONSULT (ICC/ADAS).
