Component Parts Location

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

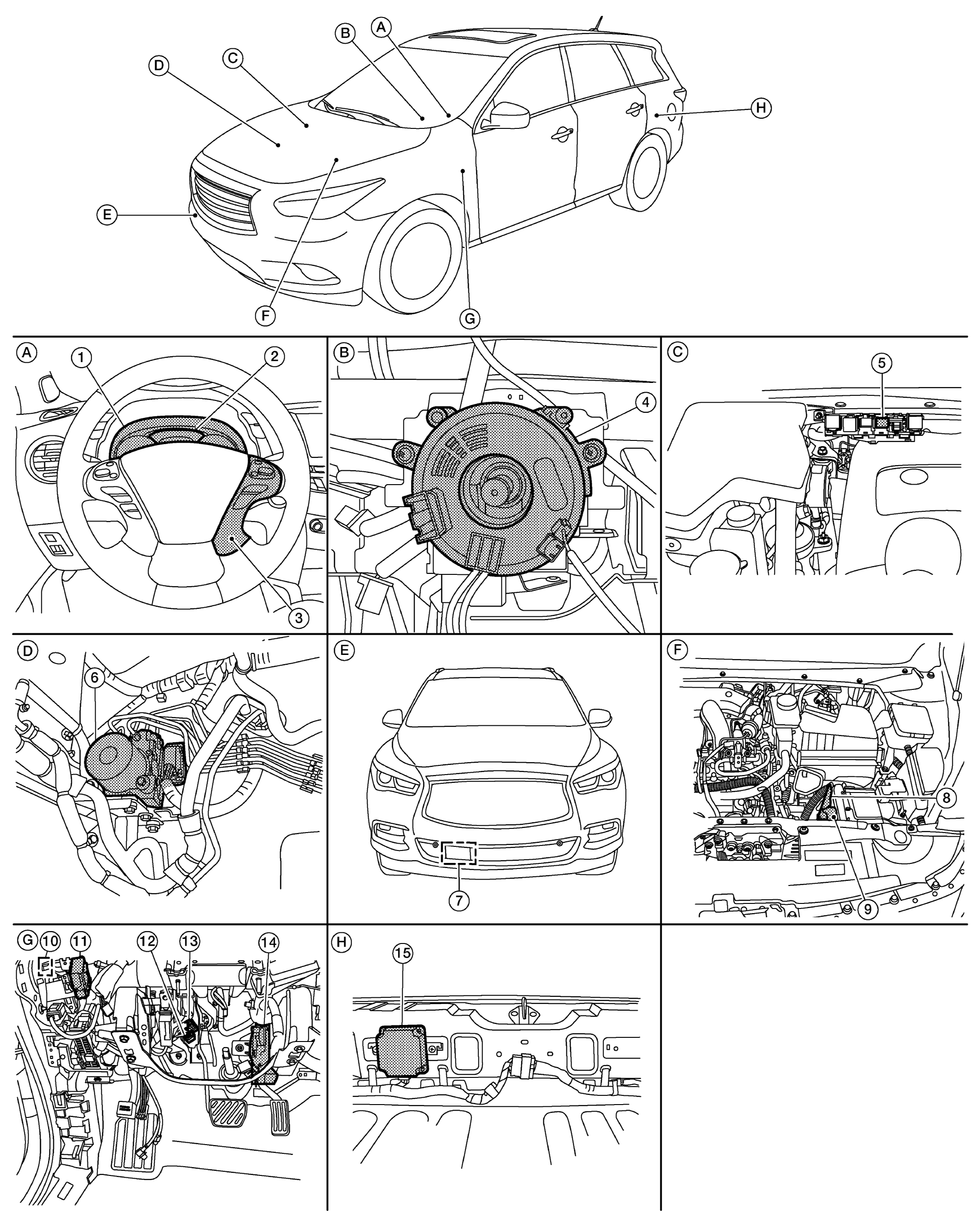

GNSALOIA0384ZZ-384Courtesy of NISSAN NORTH AMERICA, INC.
1. Combination meter
Refer to COMPONENT DESCRIPTION .		 2. Vehicle information display, ICC system warning lamp
(On the combination meter)		 3. ICC steering switch
4. Steering angle sensor (view with steering wheel removed)
Refer to COMPONENT DESCRIPTION .		 5. ICC brake hold relay 6. ABS actuator and electric unit (control unit)
Refer to COMPONENT DESCRIPTION .
7. ICC sensor
Refer to COMPONENT DESCRIPTION .		 8. ECM
Refer to COMPONENT DESCRIPTION .		 9. TCM
Refer to COMPONENT DESCRIPTION .
10. Warning buzzer 11. Driver Assistance Buzzer Control Module 12. Stop lamp switch
13. Brake pedal position switch 14. Accelerator pedal actuator 15. ADAS control unit (view of rear luggage room area with rear panel assembly removed)
Refer to COMPONENT DESCRIPTION .
