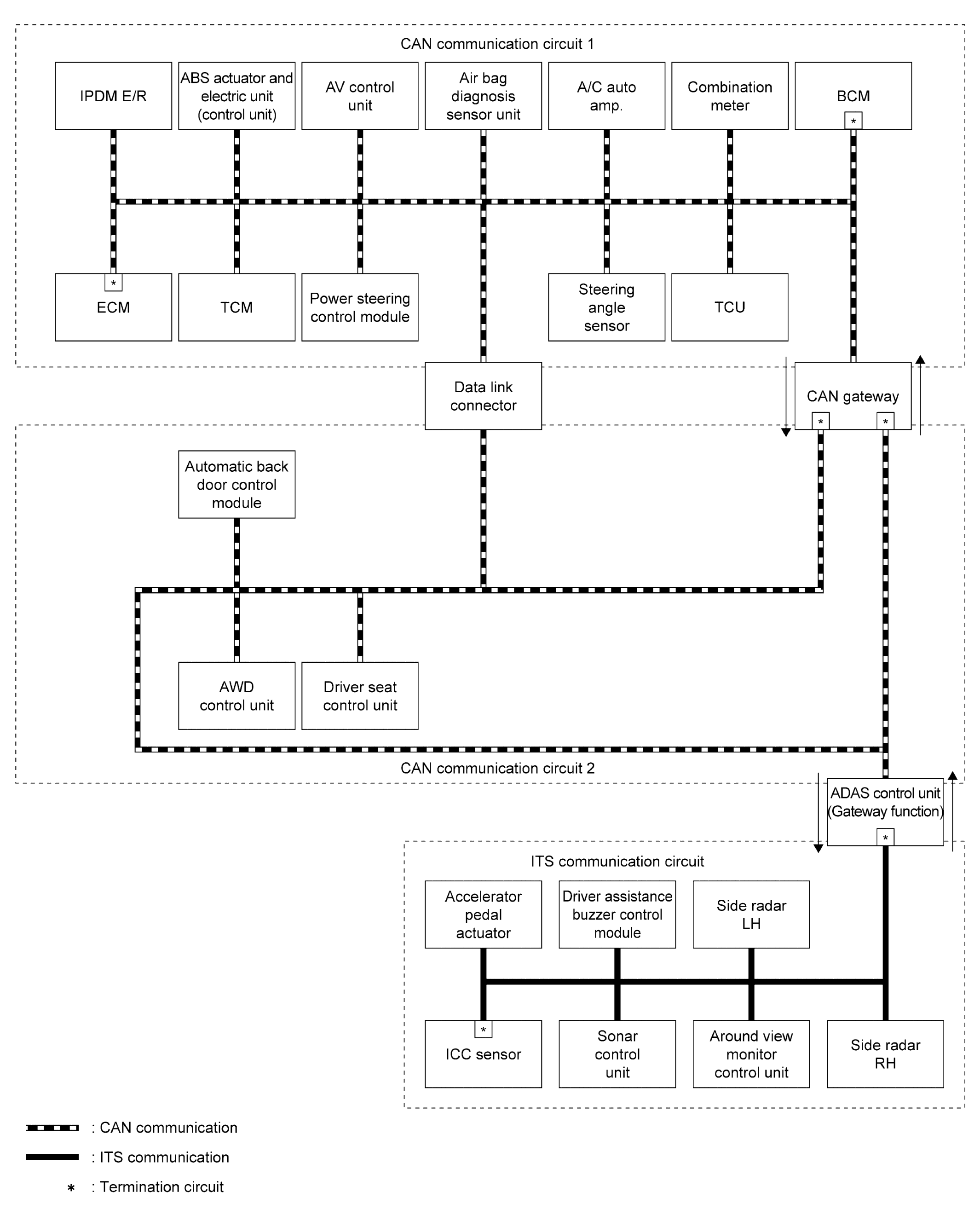

With Around View Monitor And ICC Without LDP System

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
GNSJSMIA2766GB-766Courtesy of NISSAN NORTH AMERICA, INC.
