Cross-Sectional View

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

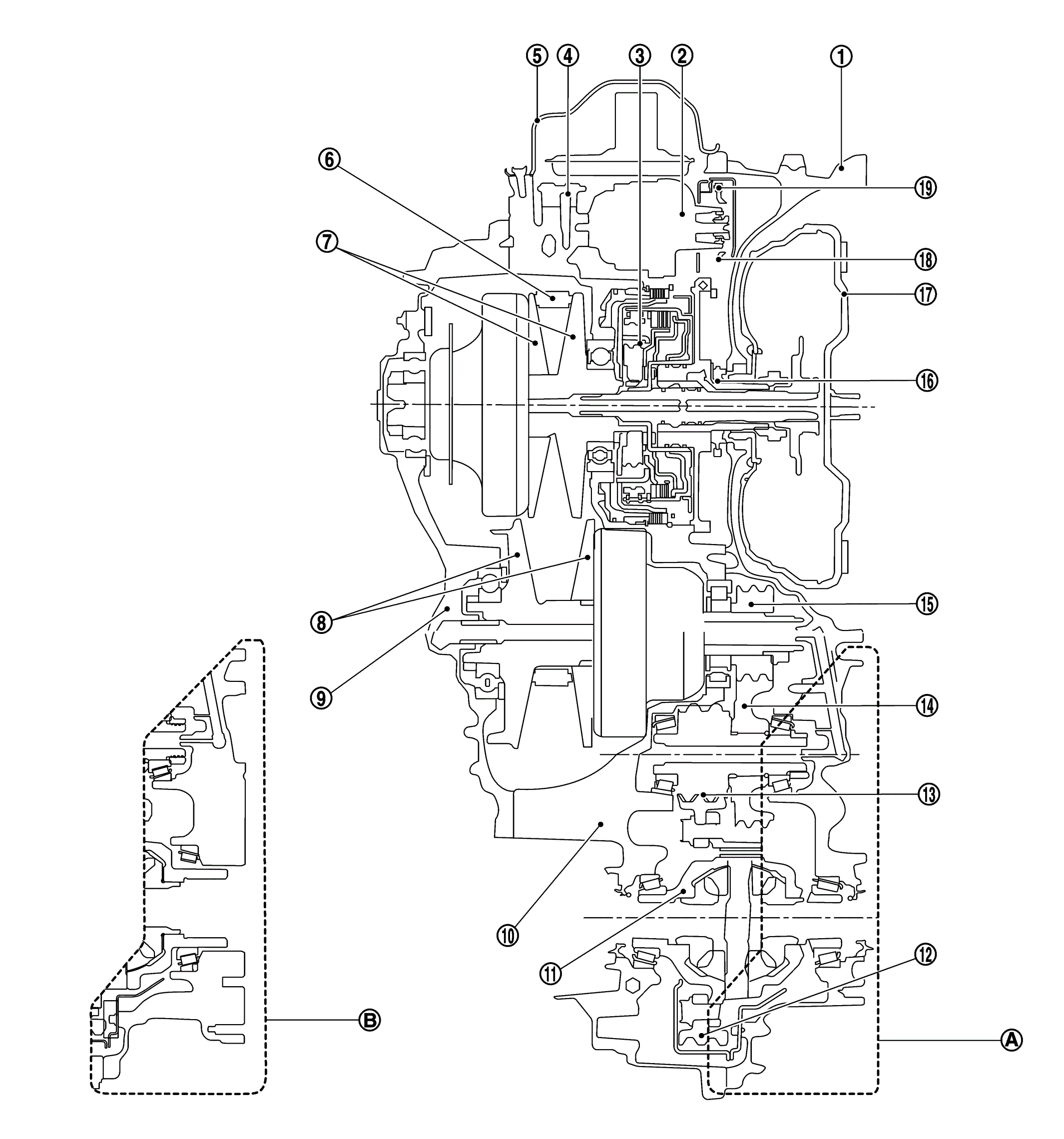

GNSJSDIA4088ZZ-088Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Converter housing WHITE-2 Oil pump WHITE-3 Planetary gear
WHITE-4 Control valve WHITE-5 Oil pan WHITE-6 Chain belt
WHITE-7 Planetary pulley WHITE-8 Secondary pulley WHITE-9 Side cover
WHITE-10 Transaxle case WHITE-11 Differential case WHITE-12 Final gear
WHITE-13 Reduction gear WHITE-14 Idler gear WHITE-15 Output gear
WHITE-16 Drive sprocket WHITE-17 Torque converter WHITE-18 Driven sprocket
WHITE-19 Oil pump chain
MARU-A-W FWD models MARU-B-W AWD models
