Component Parts Location

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

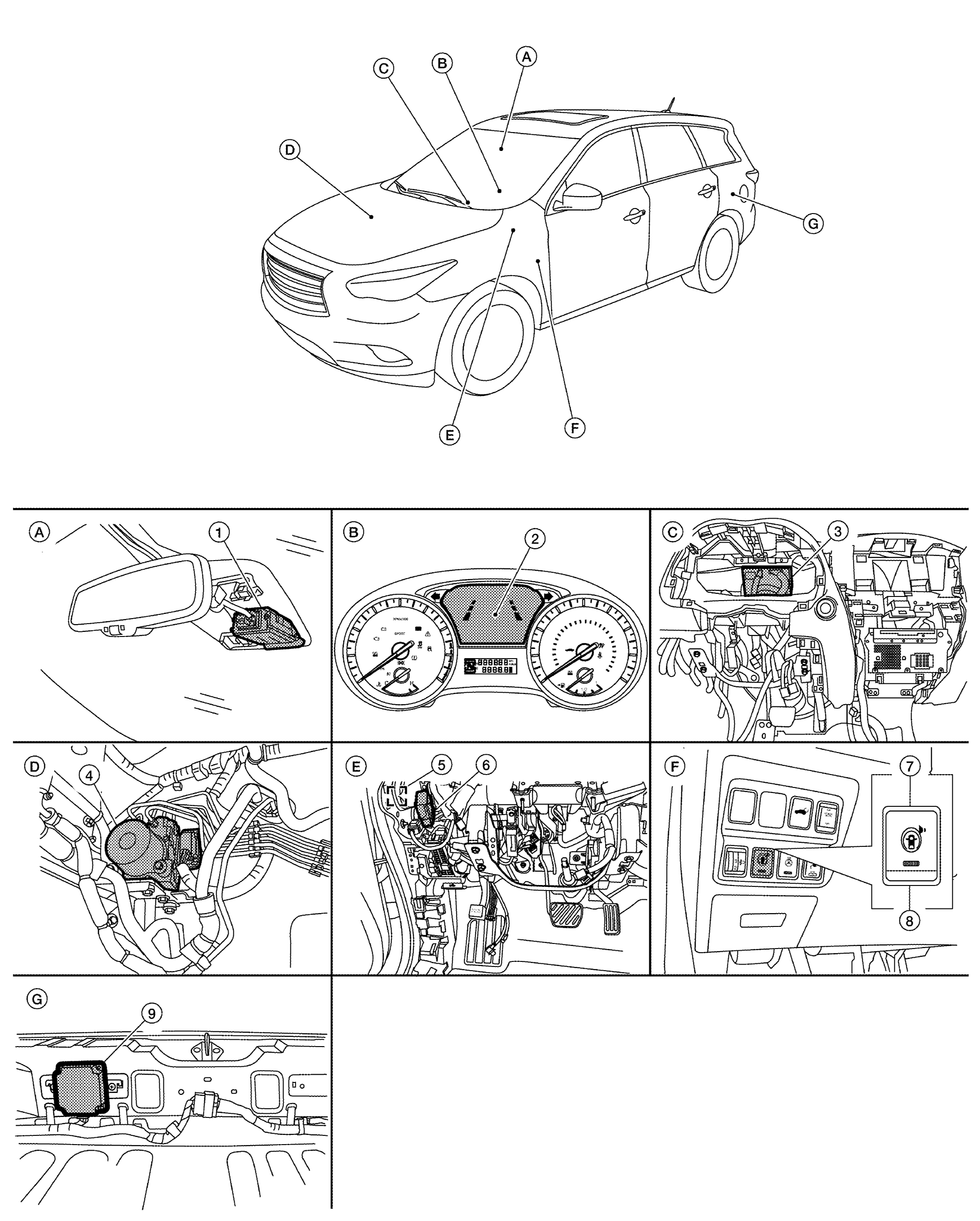

GNSALOIA0396ZZ-396Courtesy of NISSAN NORTH AMERICA, INC.
1. Lane camera unit 2. Vehicle information display 3. BCM (with the combination meter removed)
Refer to COMPONENT DESCRIPTION
4. ABS actuator and electric unit (control unit)
Refer to COMPONENT DESCRIPTION .		 5. Warning buzzer
(view with instrument lower panel LH removed)		 6. Driver Assistance Buzzer Control Module
7. Warning systems switch 8. Warning systems ON indicator 9. ADAS control unit
(view of rear luggage room area with rear panel assembly removed)
Refer to COMPONENT DESCRIPTION .
