Seat Cushion: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the third row seat. Refer to REMOVAL AND INSTALLATION .
  2. Remove seat cushion pad and seat cushion trim.
    G08430845Courtesy of NISSAN NORTH AMERICA, INC.

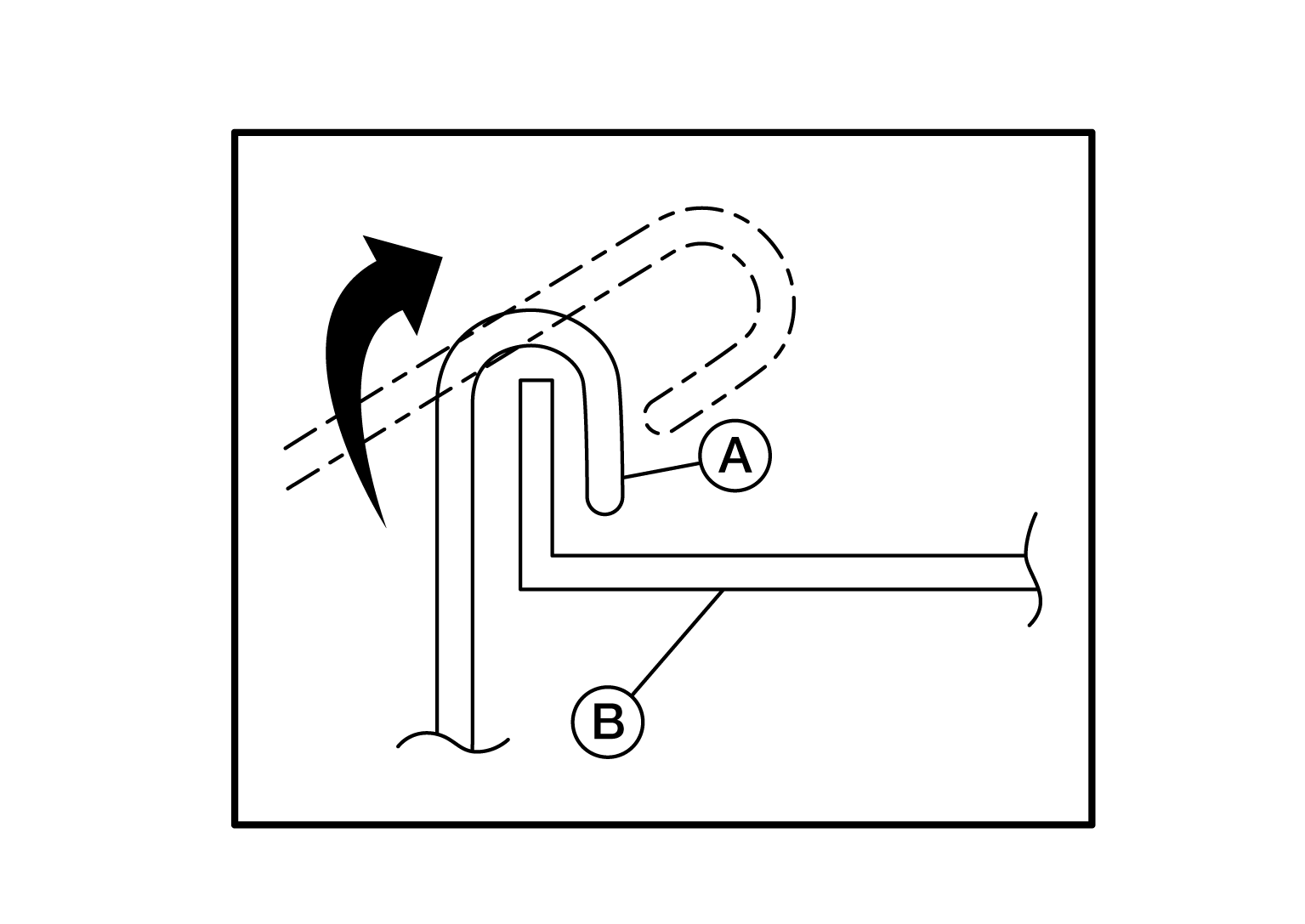

    1. Release the J-clips (A) holding the seat cushion trim to the seat frame (B).
    2. Release the elastic band and remove the seat belt buckles (LH/RH) from the seat cushion.
    3. Remove the seat cushion pad and seat cushion trim as an assembly from the seat frame assembly.
  3. Separate the seat cushion trim from the seat cushion pad.
    GNSALJIA0837ZZ-837Courtesy of NISSAN NORTH AMERICA, INC.

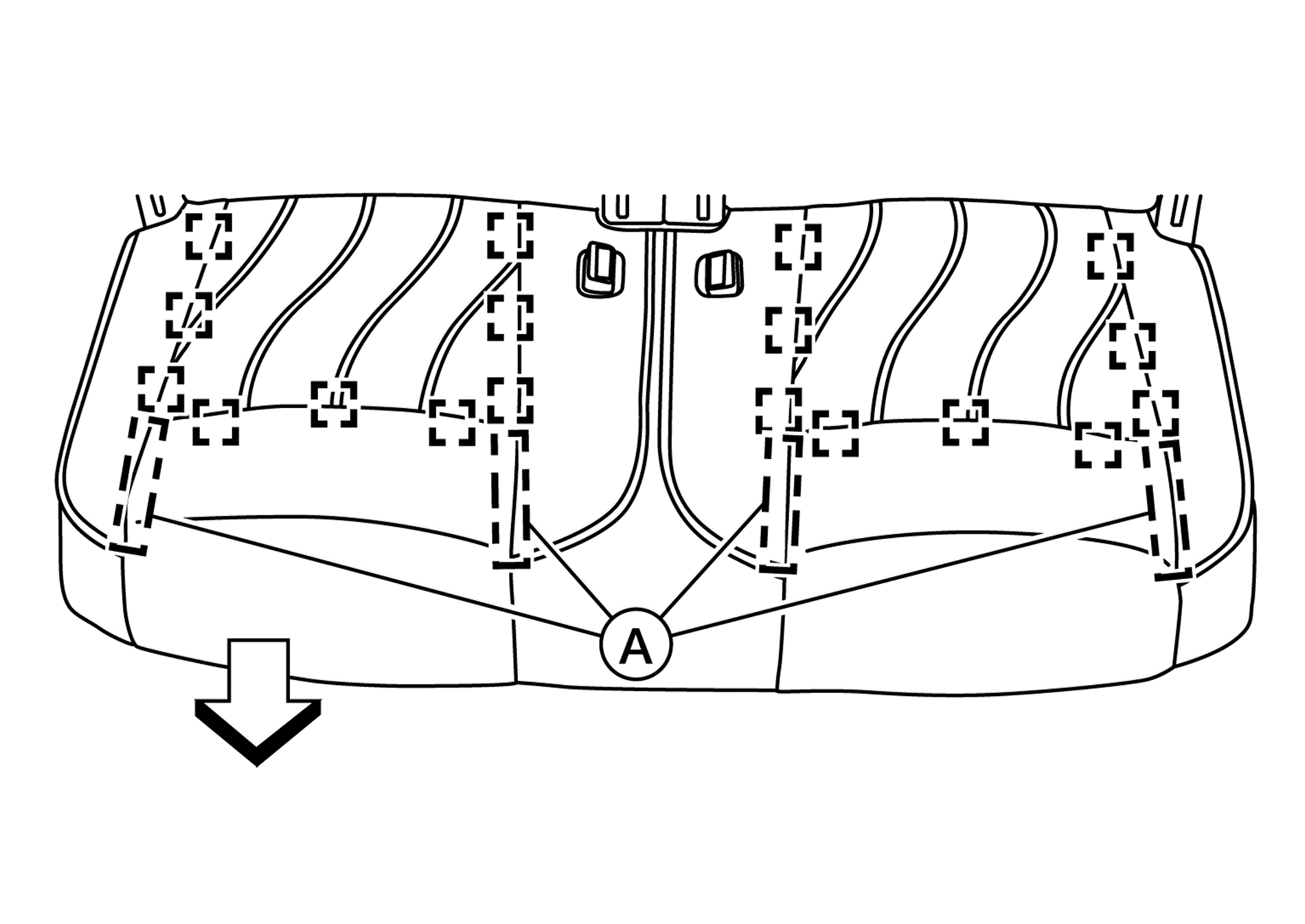

    1. Pull seat cushion trim upward to release hook fasteners (A).
    2. Remove hog rings and separate the seat cushion trim from the seat cushion pad.
      NOTE:

      Remove all pieces of hog rings and discard them.

      SHIKAKU-H : Hog ring

      ARROW : Front

  4. Remove the screw, release the metal clip and pawls, then remove the seat hinge finishers (LH/RH) from the seat frame.
  5. Release the pawls and remove the seat hinge finisher (center) from the seat frame.
