Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

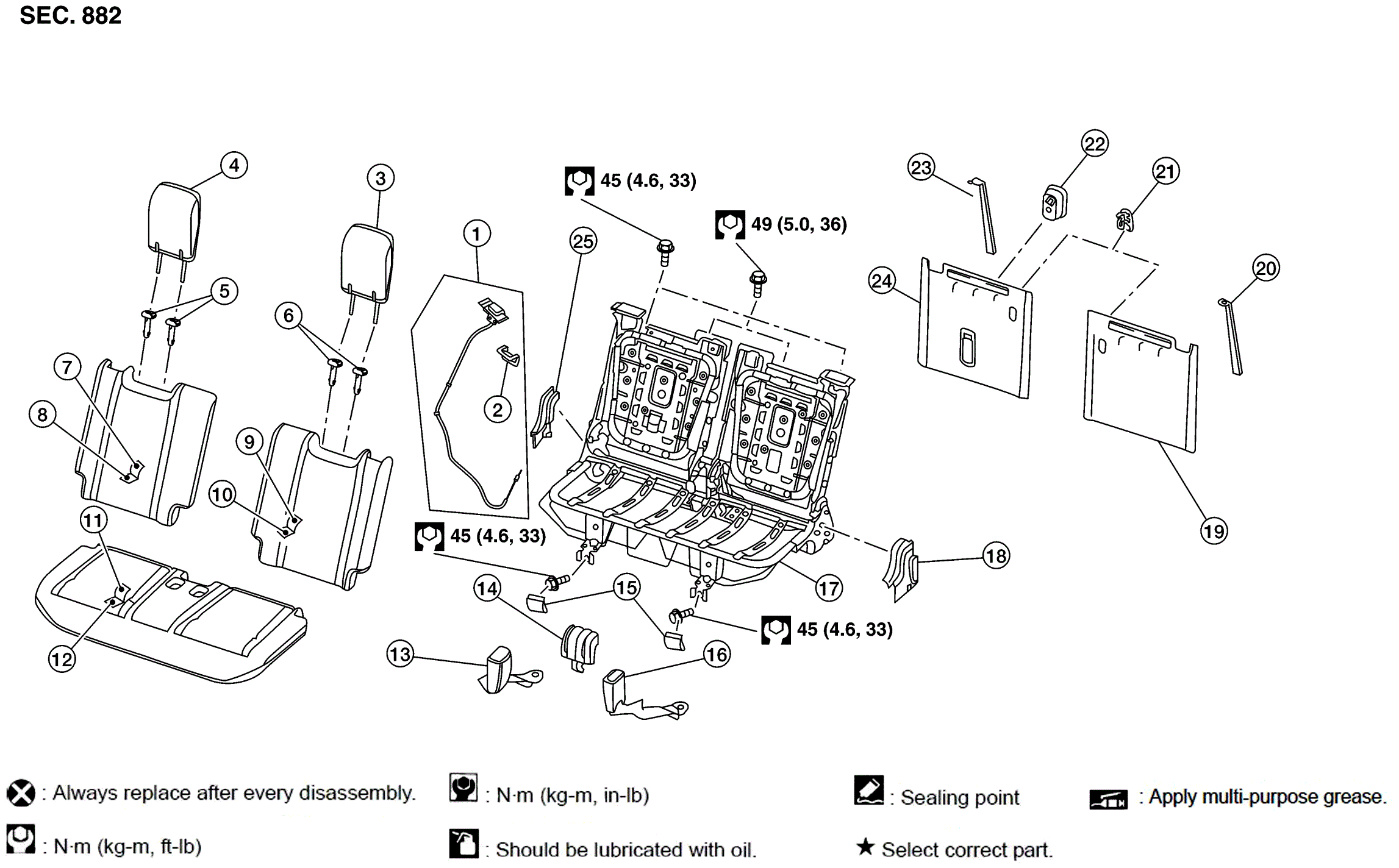

MANUAL SEAT
| 1. | Seatback release lever and cable (LH/RH) | 2. | Seatback release lever finisher (LH/RH) | 3. | Headrest (LH) |
| 4. | Headrest (RH) | 5. | Headrest holders (RH) | 6. | Headrest holders (LH) |
| 7. | Seatback trim (RH) | 8. | Seatback pad (RH) | 9. | Seatback trim (LH) |
| 10. | Seatback pad (LH) | 11. | Seat cushion trim | 12. | Seat cushion pad |
| 13. | Seat belt buckle (RH) | 14. | Seat hinge finisher (center) | 15. | Seat bolt finisher |
| 16. | Seat belt buckle (LH) | 17. | Seat frame assembly | 18. | Seat hinge finisher (LH) |
| 19. | Seatback board (LH) | 20. | Seatback pull strap (LH) | 21. | Seatback cargo hook |
| 22. | Tether anchor finisher | 23. | Seatback pull strap (RH) | 24. | Seatback board (RH) |
| 25. | Seatback hinge finisher (RH) |

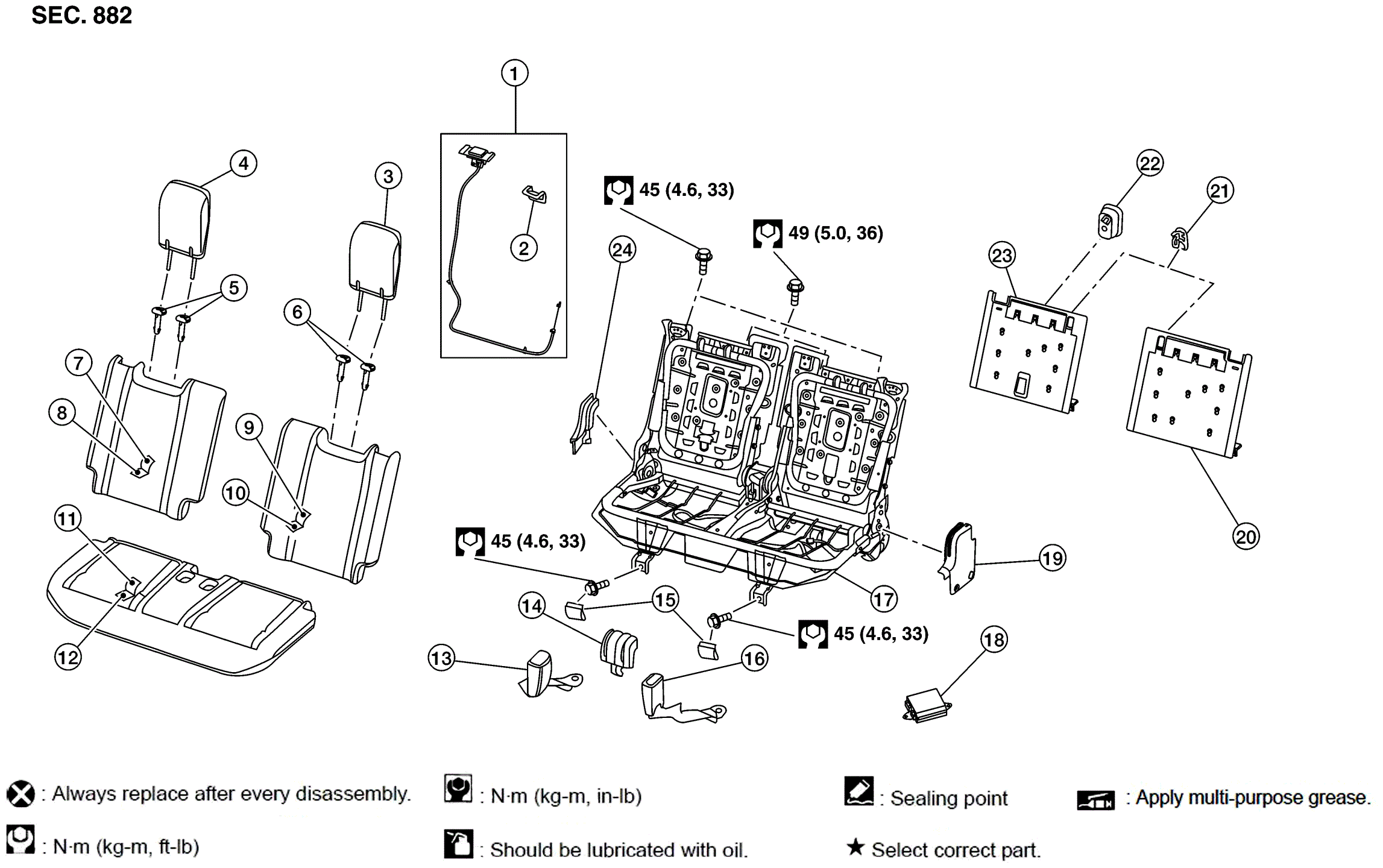

POWER SEAT
| 1. | Seatback release lever and cable (LH/RH) | 2. | Seatback release lever finisher (LH/RH) | 3. | Headrest (LH) |
| 4. | Headrest (RH) | 5. | Headrest holders (RH) | 6. | Headrest holders (LH) |
| 7. | Seatback trim (RH) | 8. | Seatback pad (RH) | 9. | Seatback trim (LH) |
| 10. | Seatback pad (LH) | 11. | Seat cushion trim | 12. | Seat cushion pad |
| 13. | Seat belt buckle (RH) | 14. | Seat hinge finisher (center) | 15. | Seat bolt finisher |
| 16. | Seat belt buckle (LH) | 17. | Seat frame assembly | 18. | Seatback power return control unit |
| 19. | Seat hinge finisher (LH) | 20. | Seatback board (LH) | 21. | Seatback cargo hook |
| 22. | Tether anchor finisher | 23. | Seatback board (RH) | 24. | Seatback hinge finisher (RH) |
