LH Seat: Seatback: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH seat. Refer to REMOVAL AND INSTALLATION .
  2. Remove the LH seat cushion. Refer to SEAT CUSHION .
  3. Remove the armrest assembly. Refer to ARMREST ASSEMBLY .

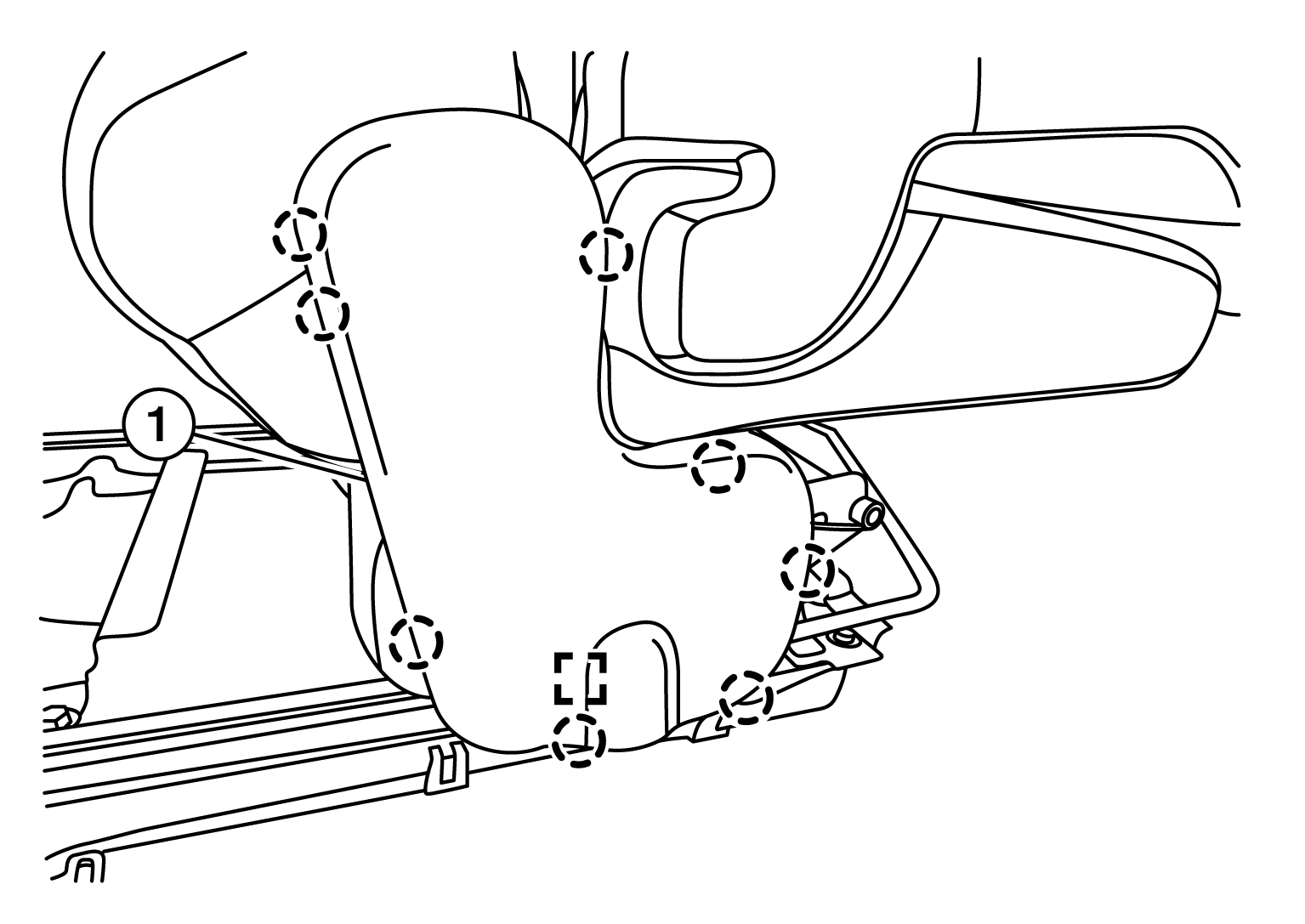

  4. Release pawls and metal clip, and remove the outer finisher (RH) (1).
    GNSALJIA0861ZZ-861Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    SHIKAKU-H : Metal clip

  5. Release the seatback heater harness (if equipped) from all attachments.
    NOTE:

    Take note of harness routing and attachment locations for correct installation.

  6. Release pawls and remove the recliner finisher (center) (1).
    G09578245Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  7. Release clip.

    SANKAKU-H : Clip

  8. Remove screws (ARROWF ), then release metal clips and remove the seat cushion latch finisher (2).

    SHIKAKU-H : Metal clip

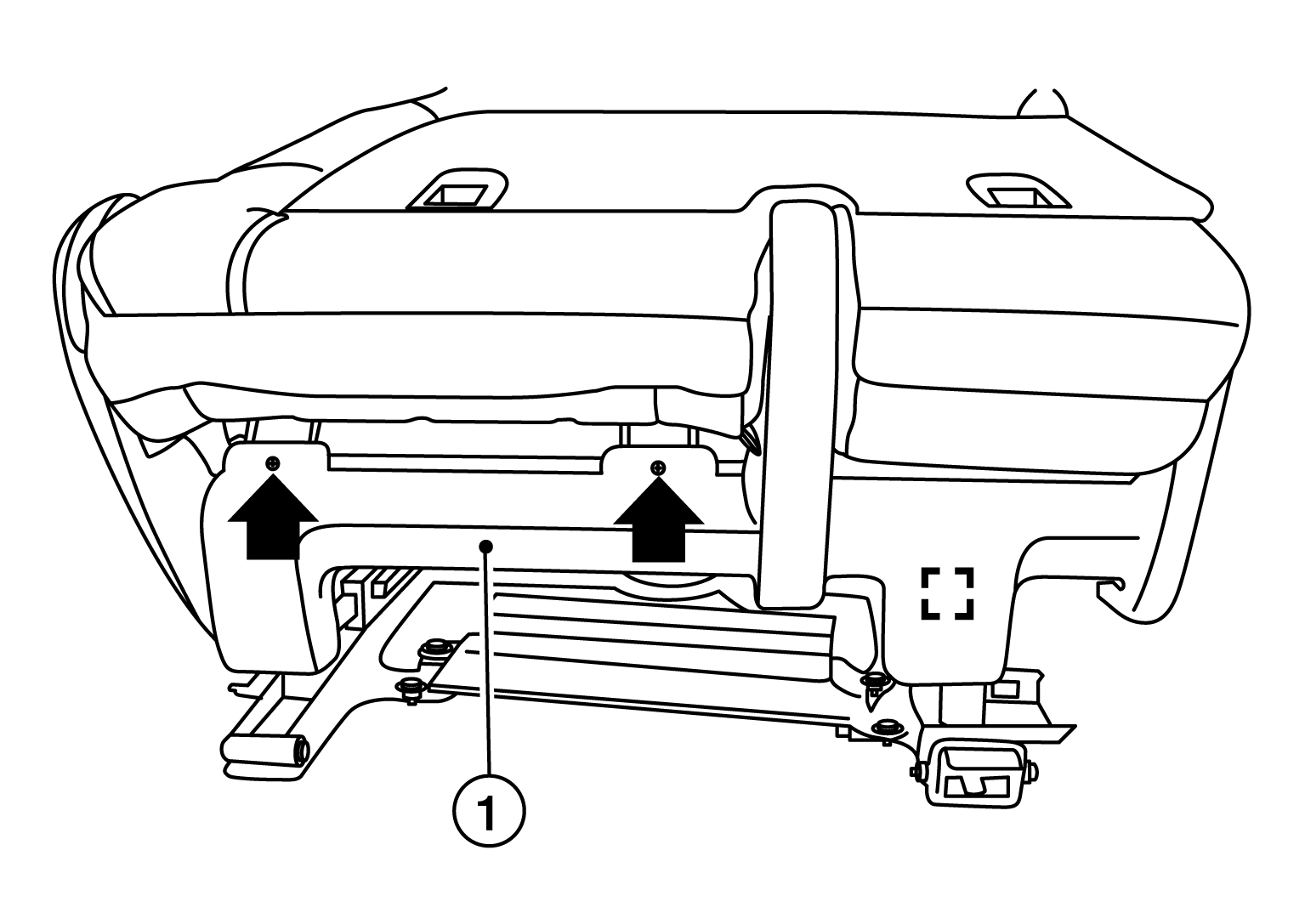

  9. Remove screws (ARROWF ), then release metal clip and remove the rear finisher (1).
    GNSALJIA0862ZZ-862Courtesy of NISSAN NORTH AMERICA, INC.

    SHIKAKU-H : Metal clip

  10. Remove seat belt retractor (center) bottom anchor bolt.
  11. Remove the headrest (LH).
  12. Reach up behind the seatback pad, release the headrest holder locks as shown in illustration and remove the headrest holders.
    G07024411Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Before removing/installing headrest holder, check its orientation (front/rear and right/left).

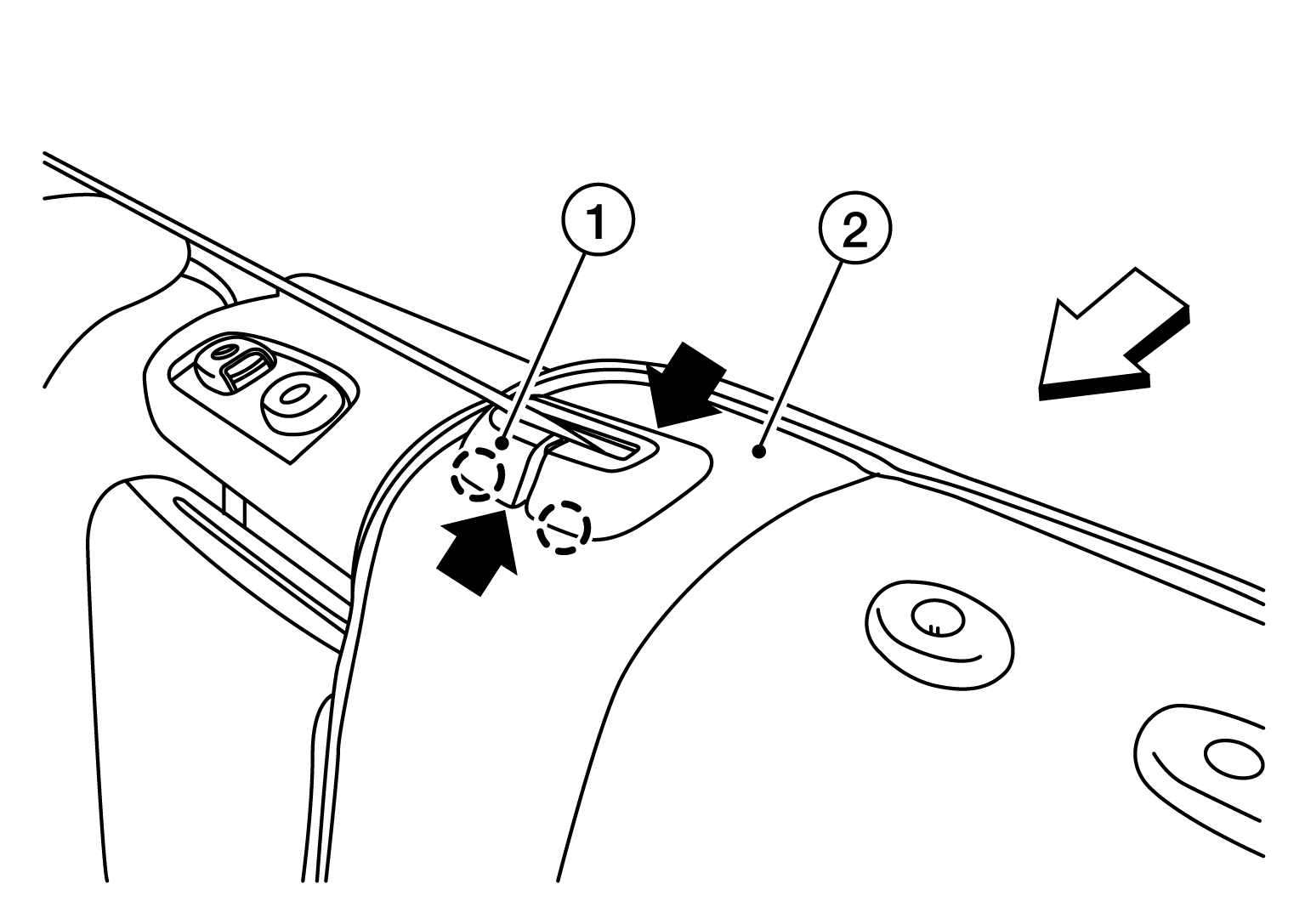

  13. Remove the seat belt retractor finisher (1) from seatback (2).
    G09578285Courtesy of NISSAN NORTH AMERICA, INC.
    1. Release pawls using a suitable tool and lift front (ARROWF ) of seat belt retractor finisher.

      MARU-H : Pawl

    2. Push on rear (ARROWF ) of seat belt retractor finisher to remove.

      ARROW : Front

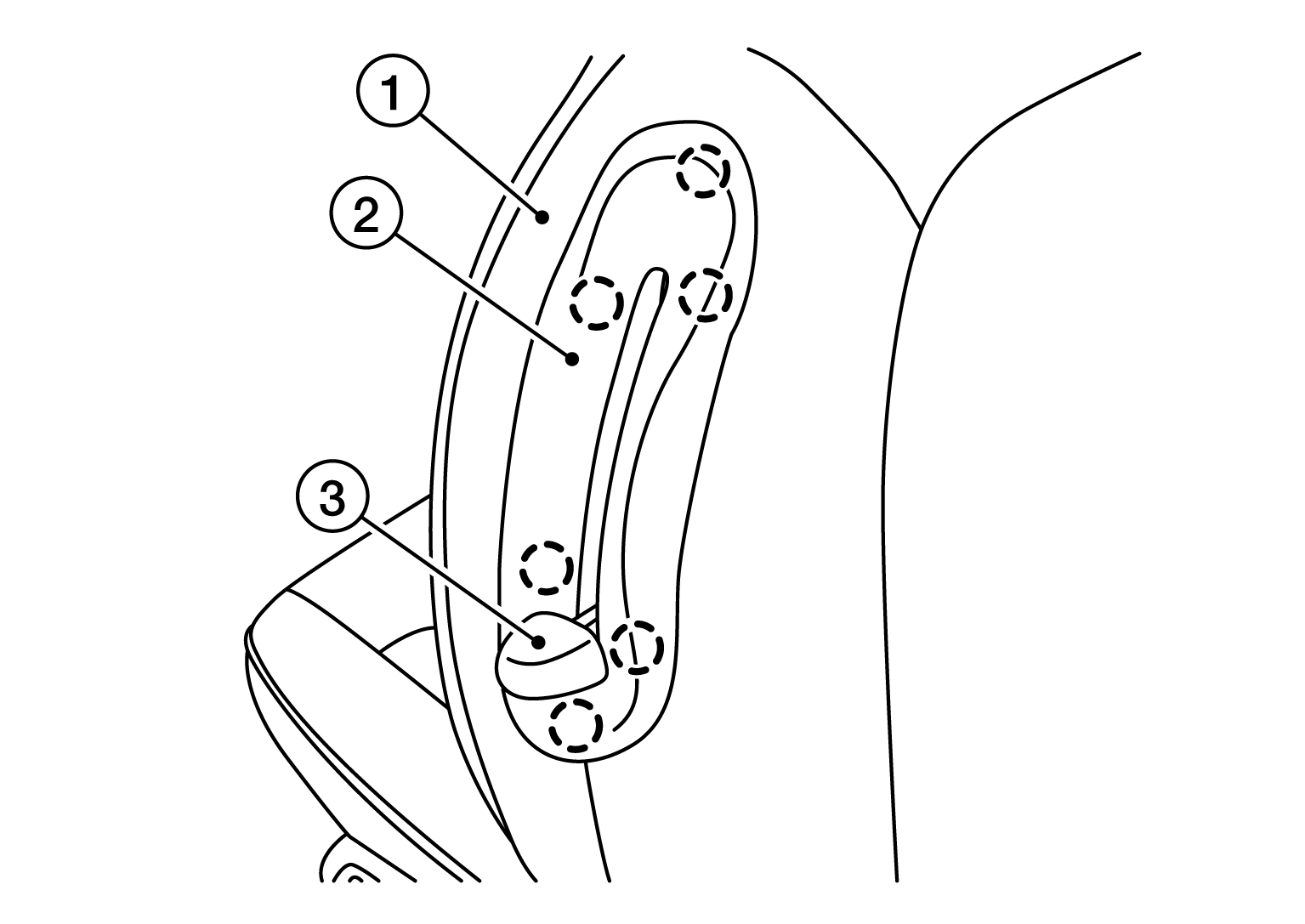

  14. Remove EZ entry lever finisher (3) by pulling firmly.
    GNSALJIA0849ZZ-849Courtesy of NISSAN NORTH AMERICA, INC.
  15. Release pawls and remove EZ entry finisher (2) from seatback (1).

    MARU-H : Pawl

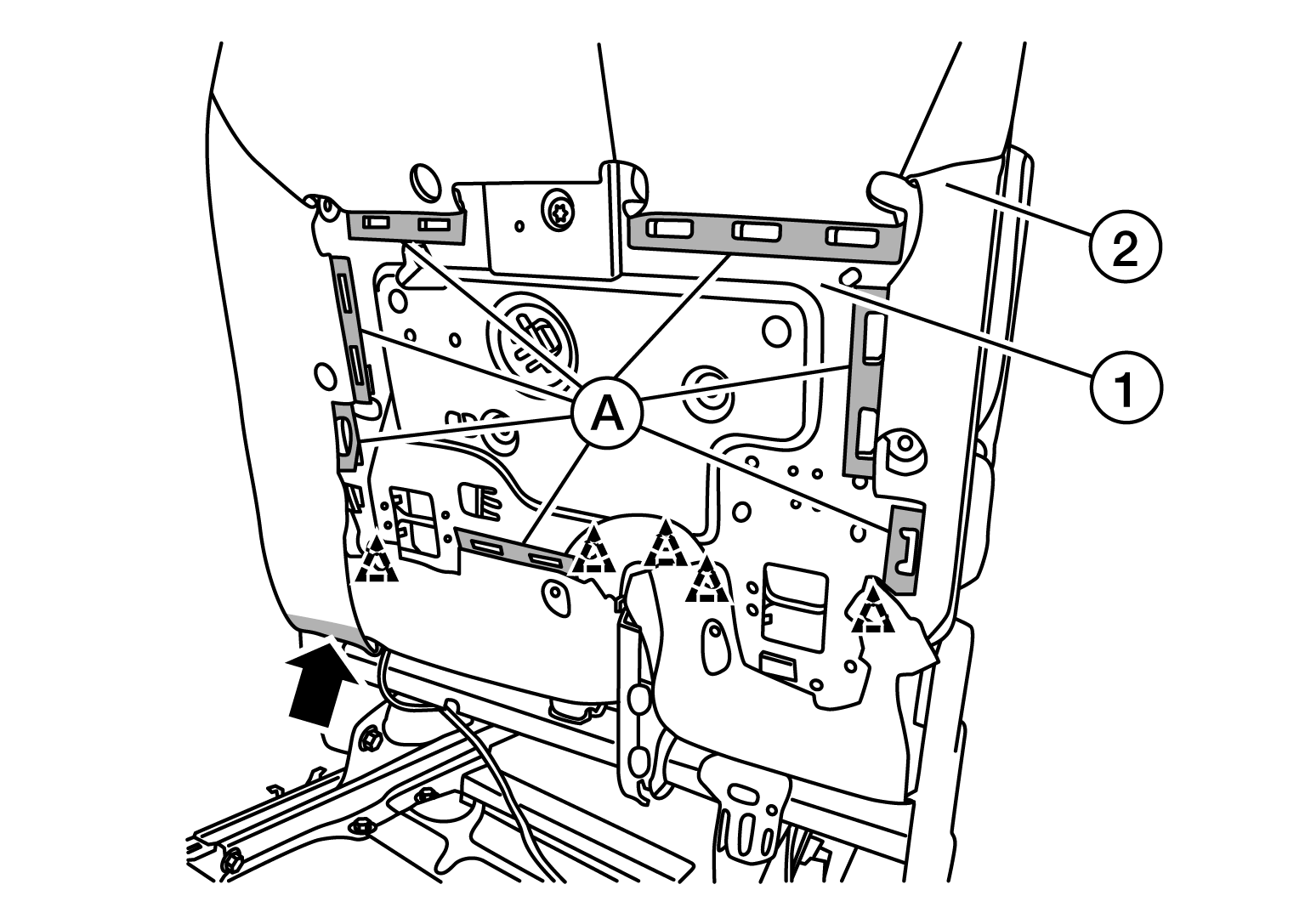

  16. Remove the seatback pad and seatback trim (2).
    G09578287Courtesy of NISSAN NORTH AMERICA, INC.
    1. Release the J-clip retainer (ARROWF ) at the rear lower edge of seatback.
    2. Remove five clips that retain seatback trim in place.

      SANKAKU-H : Clip

    3. Release retainer strips (A) from the seat frame assembly.
    4. Release clips that retain trim behind EZ entry finisher.
    5. Remove the seatback pad and seatback trim as an assembly from the seat frame assembly (1).
    6. Route the seat belt through the opening in the seatback trim.

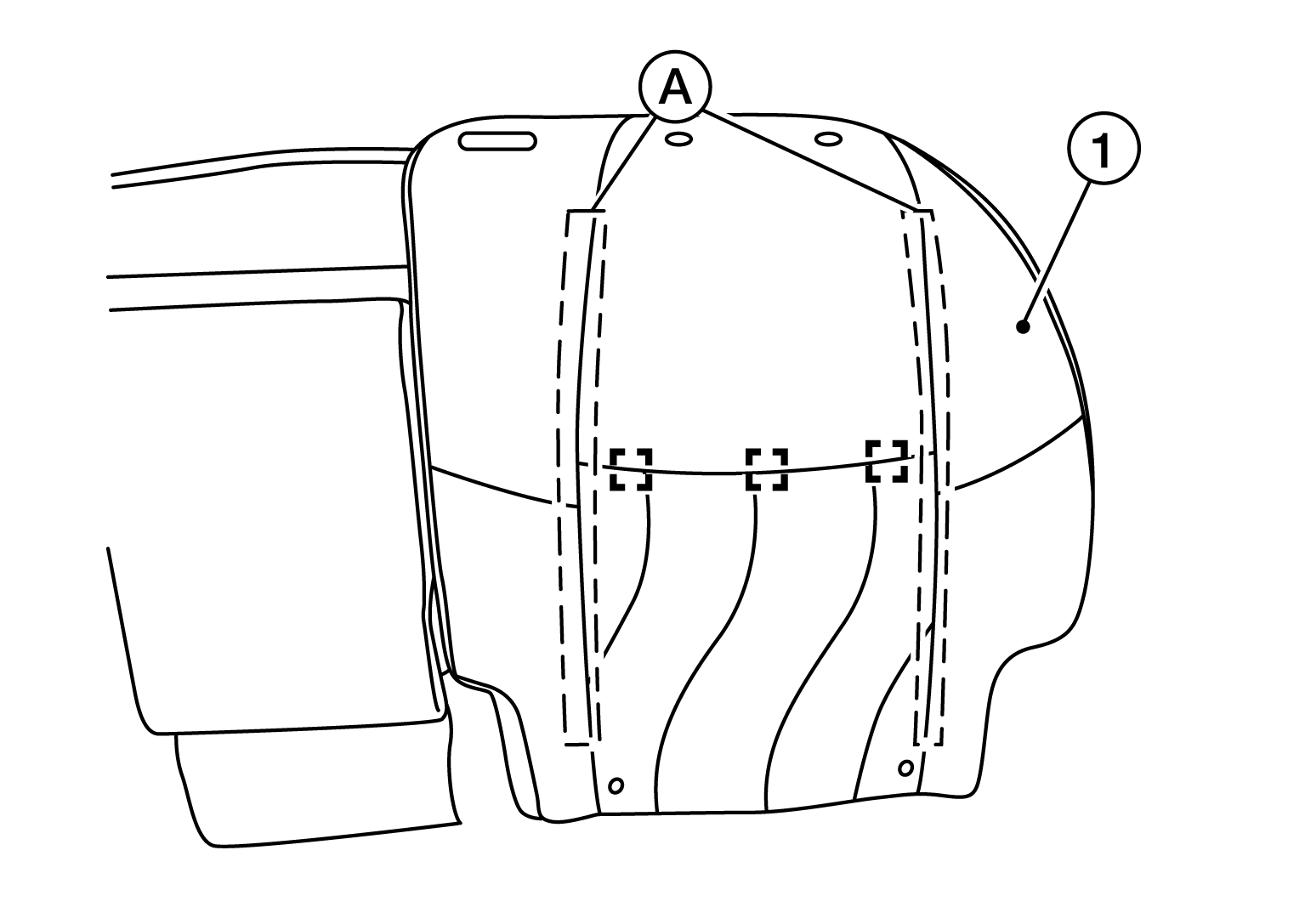

  17. Separate the seatback trim (1) from the seatback pad.
    GNSALJIA0864ZZ-864Courtesy of NISSAN NORTH AMERICA, INC.
    1. Pull seatback trim upward in front to release hook fasteners (A).
    2. Remove hog rings and separate the seatback trim from the seatback pad.
      NOTE:

      Remove all pieces of hog rings and discard them.

      SHIKAKU-H : Hog ring

    3. Route the seatback heater harness (if equipped) through the opening in the seatback trim.
