Seat Cushion: Disassembly

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH seat cushion. Refer to SEAT CUSHION .
  2. Remove support strut from the LH seat cushion.
  3. Remove the seat cushion pad and seat cushion trim (1).

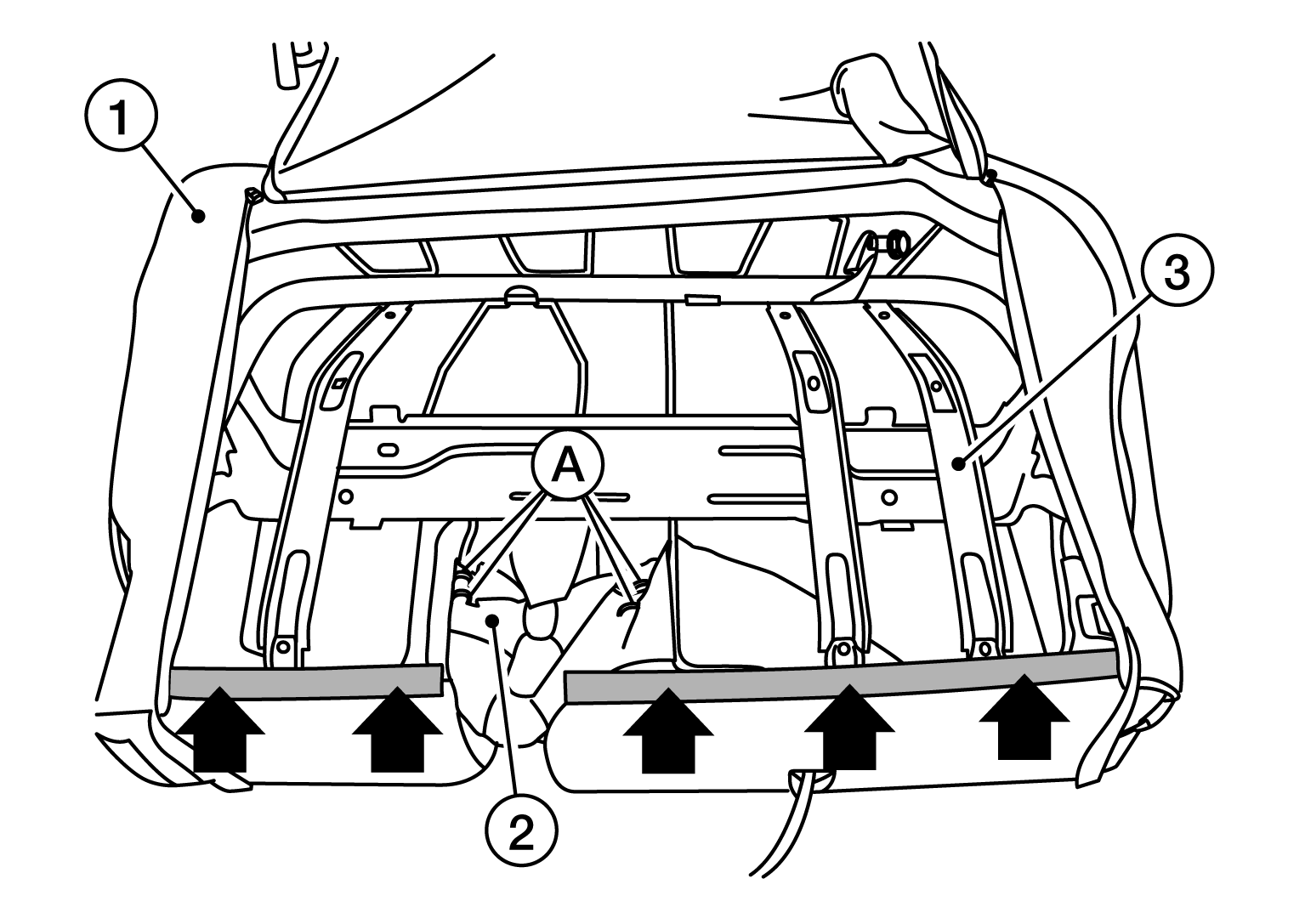

    G08853579Courtesy of NISSAN NORTH AMERICA, INC.
    1. Unzip the back trim cover and release the J-clip retainers (ARROWF ).
    2. Remove four hog rings (A) near seat belt opening, to release seat cushion trim (2).
      NOTE:

      Remove all pieces of hog rings and discard them.

    3. Remove the seat cushion pad and seat cushion trim as an assembly from the seat cushion frame (3).
  4. Separate the seat cushion trim (1) from the seat cushion pad.

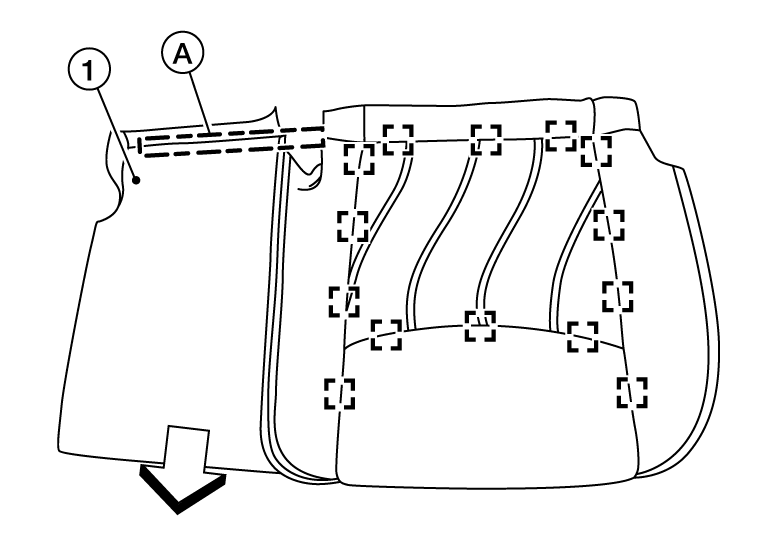

    G09578291Courtesy of NISSAN NORTH AMERICA, INC.
    1. Pull seat cushion trim up at rear to release hook fastener (A).

      ARROW : Front

    2. Remove hog rings and separate the seat cushion trim from the seat cushion pad.
      NOTE:

      Remove all pieces of hog rings and discard them.

      SHIKAKU-H : Hog ring

    3. Route the seat cushion heater harness (if equipped) through the opening in the seat cushion trim.
