Front Seat: Seatback: Assembly

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Install all seatback assembly bolts and tighten evenly in the order shown in illustration.

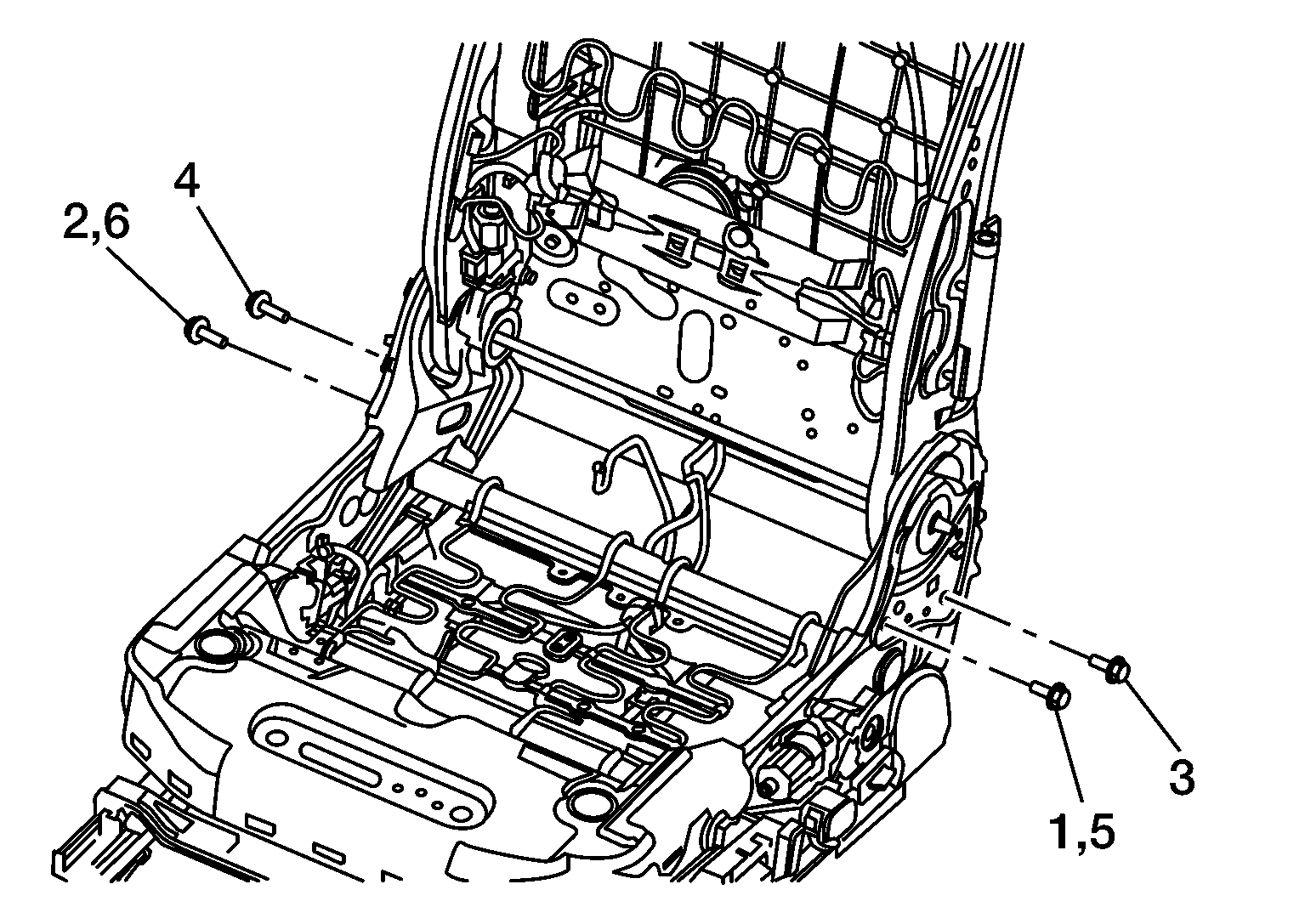

Fig 1: Seatback Assembly Bolts Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
Tighten the seatback assembly bolts to specification. Refer to EXPLODED VIEW .

CAUTION:

Always route side air bag module harness in original location. Replace any deformed or damaged clips with same type and color. Always install clips in the original location in the harness.
After work is completed, check that no system malfunction is detected causing the air bag warning lamp to illuminate.
If a malfunction is detected by the air bag warning lamp after repair or replacement of the malfunction parts, perform the SRS final check. Refer to SRS FINAL CHECK .
