Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

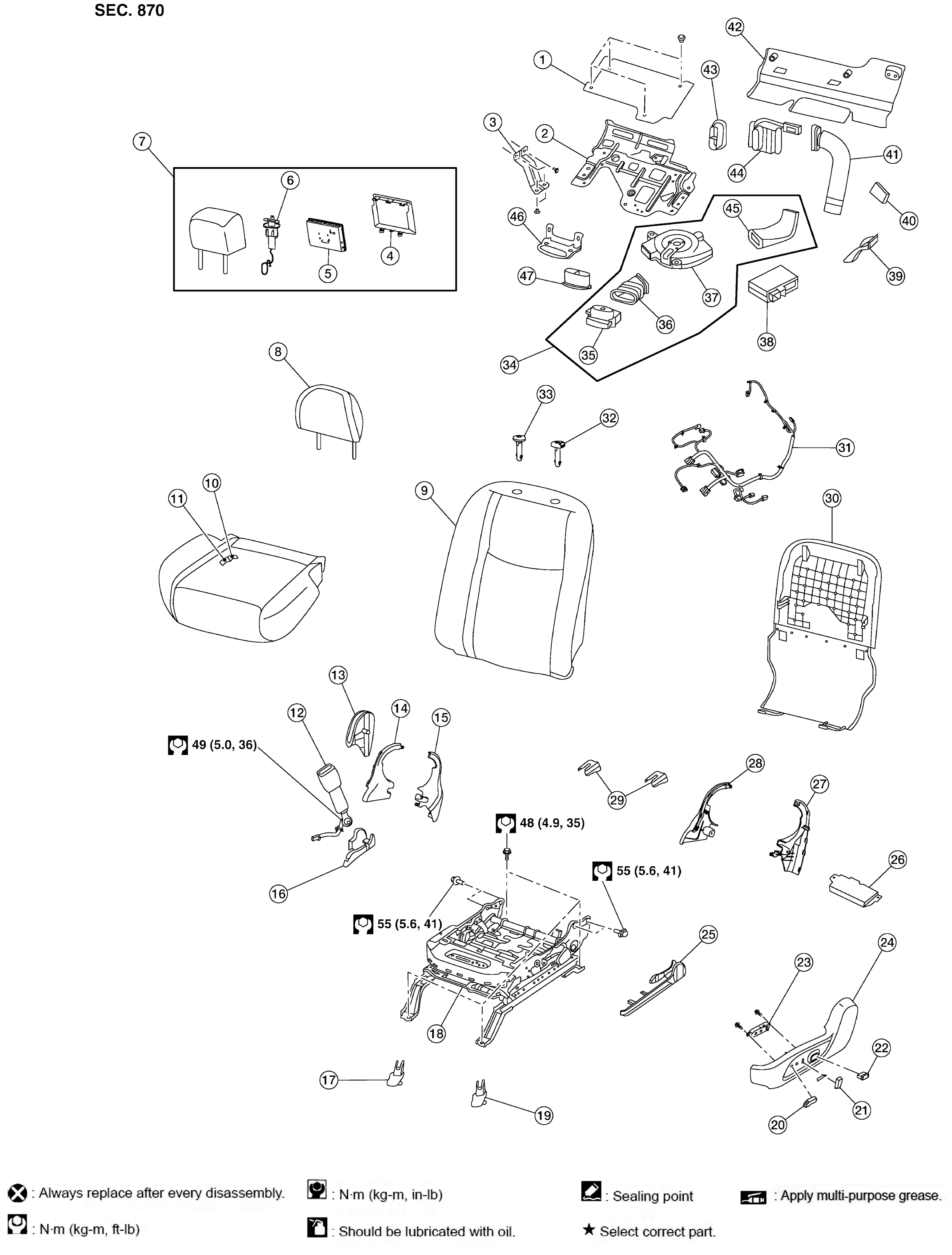

DRIVER SEAT WITH CLIMATE CONTROL
| 1. | Seat cushion protector | 2. | Blower motor bracket | 3. | Thermal electric device harness bracket |
| 4. | Headrest display unit finisher | 5. | Headrest display unit | 6. | Harness protector |
| 7. | Headrest assembly with display unit | 8. | Headrest without display unit | 9. | Seatback assembly |
| 10. | Seat cushion trim | 11. | Seat cushion pad | 12. | Seat belt buckle |
| 13. | Seat cushion outer finisher (RH) | 14. | Seat cushion inner finisher (RH) (front) | 15. | Seat cushion inner finisher (RH) (rear) |
| 16. | Slide finisher outer (RH) | 17. | Front slide finisher (RH) | 18. | Seat frame assembly |
| 19. | Front slide finisher (LH) | 20. | Seat slide knob | 21. | Seat recline knob |
| 22. | Lumbar support switch | 23. | Power seat switch | 24. | Seat cushion outer finisher (LH) |
| 25. | Slide finisher outer (LH) | 26. | Driver seat control unit | 27. | Seat cushion inner finisher (LH) (rear) |
| 28. | Seat cushion inner finisher (LH) (front) | 29. | Rear slide finisher | 30. | Seatback board |
| 31. | Seat harness | 32. | Headrest holder (locked) | 33. | Headrest holder (free) |
| 34. | Climate controlled seat blower motor assembly | 35. | Seat cushion thermal electric device | 36. | Lower blower duct |
| 37. | Blower motor with filter | 38. | Climate controlled seat control unit | 39. | Thermal electric device clip |
| 40. | Upper blower duct clip | 41. | Upper blower duct | 42. | Lower rear cover |
| 43. | Thermal electric device nozzle | 44. | Seatback thermal electric device | 45. | Angle duct |
| 46. | Thermal electric device bracket | 47. | Thermal electric device nozzle |

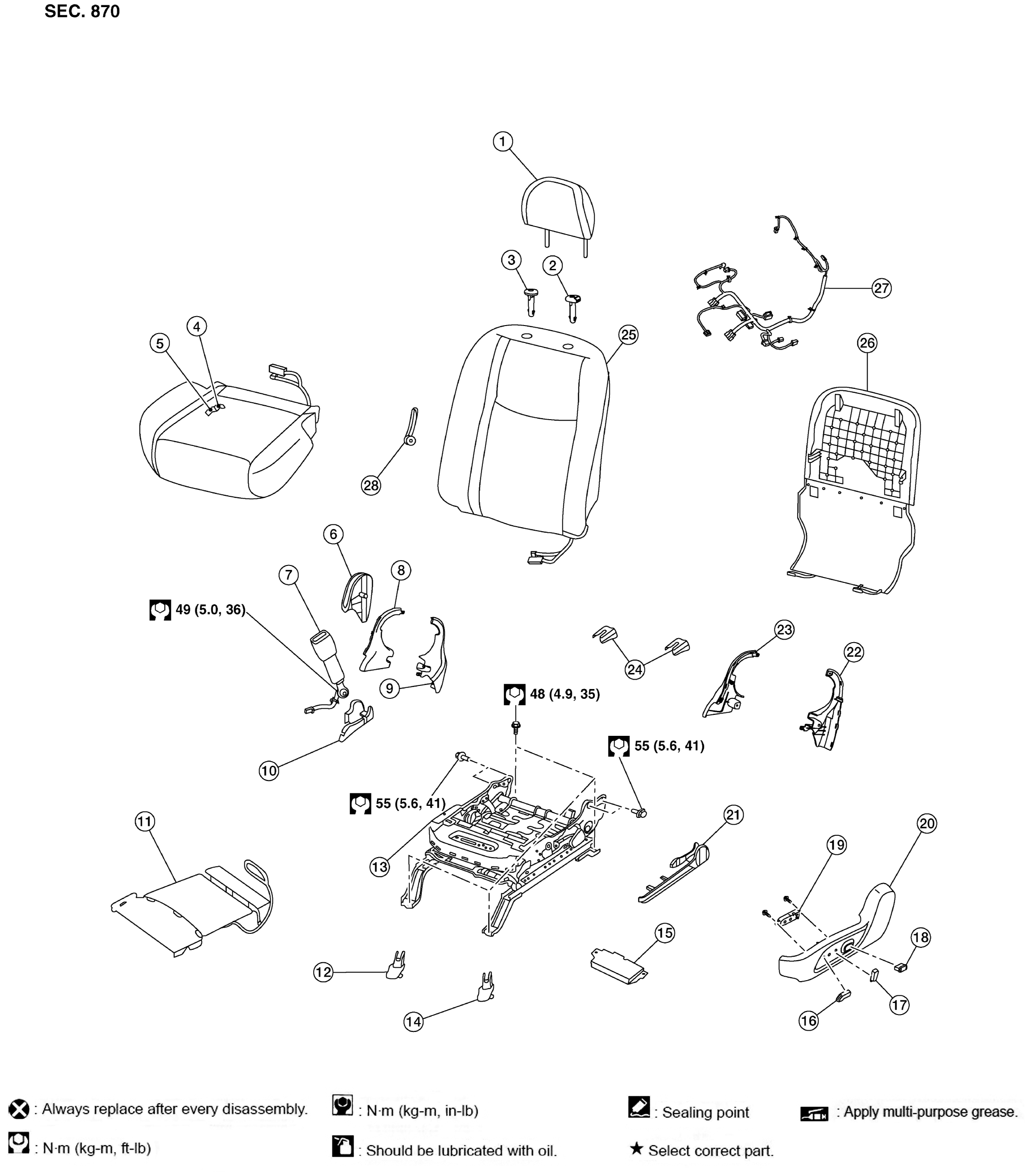

DRIVER SEAT WITHOUT CLIMATE CONTROL
| 1. | Headrest | 2. | Headrest holder (locked) | 3. | Headrest holder (free) |
| 4. | Seat cushion trim | 5. | Seat cushion pad | 6. | Seat cushion outer finisher (RH) |
| 7. | Seat belt buckle | 8. | Seat cushion inner finisher (RH) (front) | 9. | Seat cushion inner finisher (RH) (rear) |
| 10. | Slide finisher outer (RH) | 11. | Front seat heater | 12. | Front slide finisher (RH) |
| 13. | Seat frame assembly | 14. | Front slide finisher (LH) | 15. | Driver seat control unit (if equipped) |
| 16. | Seat slide knob | 17. | Seat recline knob | 18. | Lumbar support switch |
| 19. | Power seat switch | 20. | Seat cushion outer finisher (LH) | 21. | Slide finisher outer (LH) |
| 22. | Seat cushion inner finisher (LH) (rear) | 23. | Seat cushion inner finisher (LH) (front) | 24. | Rear slide finisher |
| 25. | Seatback assembly | 26. | Seatback board | 27. | Seat harness |
| 28. | Lumbar lever (if equipped) |

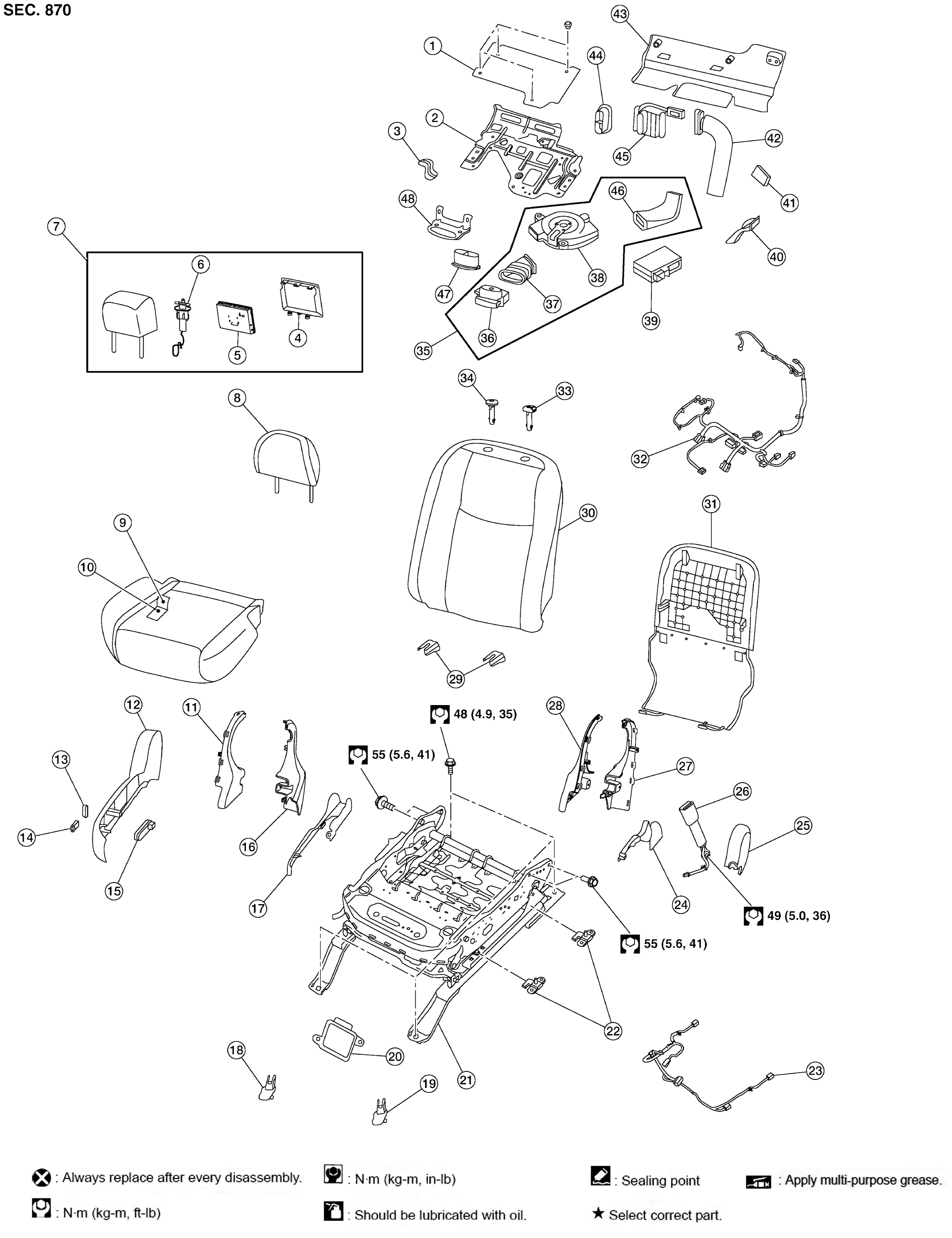

PASSENGER SEAT WITH CLIMATE CONTROL
| 1. | Seat cushion protector | 2. | Thermal electric device bracket | 3. | Thermal electric device harness bracket |
| 4. | Headrest display unit finisher | 5. | Headrest display unit | 6. | Harness protector |
| 7. | Headrest assembly with display unit | 8. | Headrest without display unit | 9. | Seat cushion trim |
| 10. | Seat cushion pad | 11. | Seat cushion inner finisher (RH) (front) | 12. | Seat cushion outer finisher (RH) |
| 13. | Seat recline knob | 14. | Seat slide knob | 15. | Power seat switch |
| 16. | Seat cushion inner finisher (RH) (rear) | 17. | Slide finisher outer (RH) | 18. | Front slide finisher (RH) |
| 19. | Front slide finisher (LH) | 20. | Occupant Classification System control unit | 21. | Seat frame assembly |
| 22. | Occupant Classification System sensor | 23. | Occupant Classification System harness | 24. | Slide finisher outer (LH) |
| 25. | Seat cushion outer finisher (LH) | 26. | Seat belt buckle | 27. | Seat cushion inner finisher (LH) (rear) |
| 28. | Seat cushion inner finisher (LH) (front) | 29. | Rear slide finisher | 30. | Seatback assembly |
| 31. | Seatback board | 32. | Seat harness | 33. | Headrest holder (locked) |
| 34. | Headrest holder (free) | 35. | Climate controlled seat blower motor assembly | 36. | Seat cushion thermal electric device |
| 37. | Lower blower duct | 38. | Blower motor with filter | 39. | Climate controlled seat control unit |
| 40. | Thermal electric device clip | 41. | Upper blower duct clip | 42. | Upper blower duct |
| 43. | Lower rear cover | 44. | Thermal electric device nozzle | 45. | Seatback thermal electric device |
| 46. | Angle duct | 47. | Thermal electric device nozzle | 48. | Blower motor bracket |

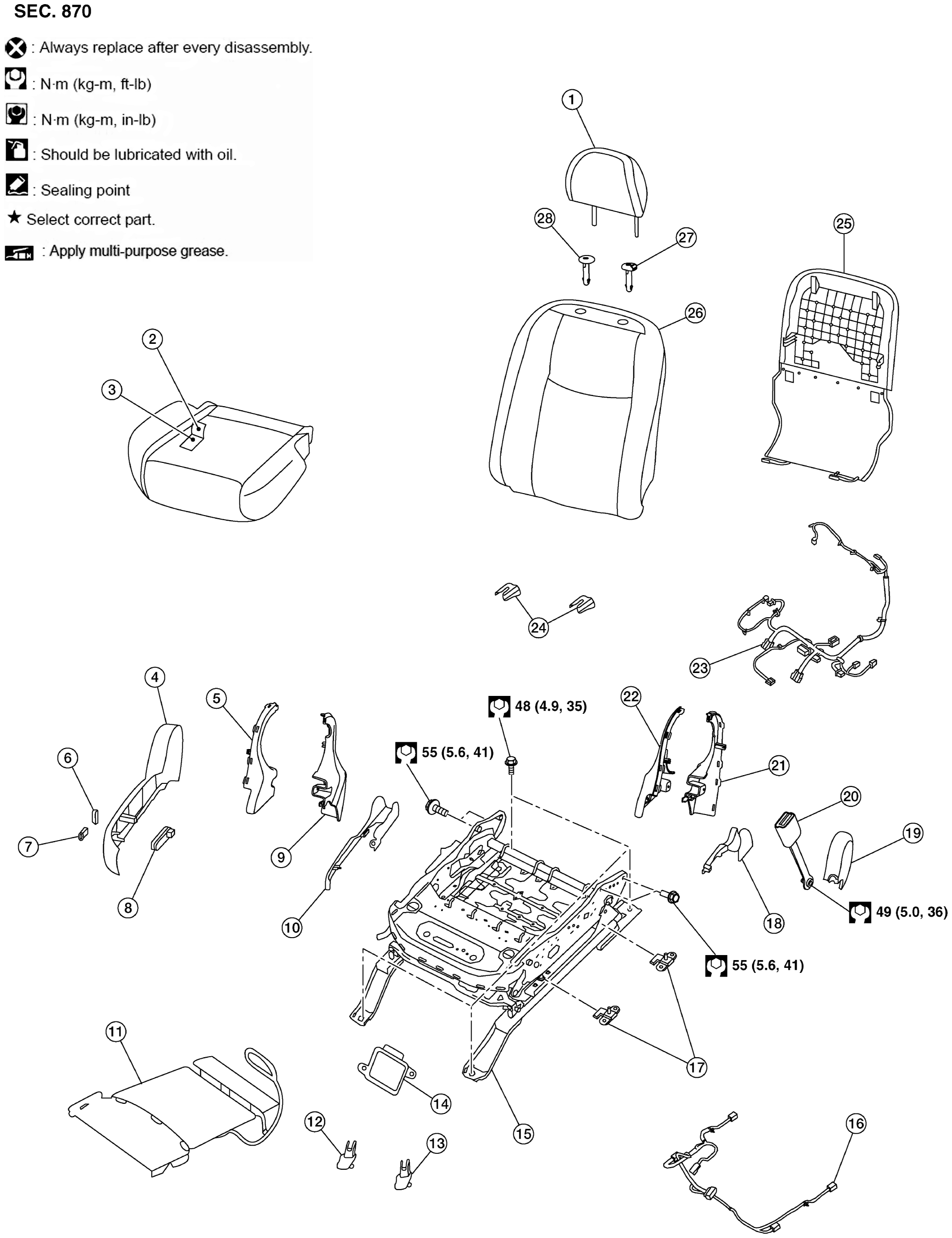

PASSENGER SEAT WITHOUT CLIMATE CONTROL
| 1. | Headrest | 2. | Seat cushion trim | 3. | Seat cushion pad |
| 4. | Seat cushion outer finisher (RH) | 5. | Seat cushion inner finisher (RH) (front) | 6. | Seat recline knob |
| 7. | Seat slide knob | 8. | Power seat switch | 9. | Seat cushion inner finisher (RH) (rear) |
| 10. | Slide finisher outer (RH) | 11. | Front seat heater | 12. | Front slide finisher (RH) |
| 13. | Front slide finisher (LH) | 14. | Occupant Classification System control unit | 15. | Seat frame assembly |
| 16. | Occupant Classification System harness | 17. | Occupant Classification System sensor | 18. | Slide finisher outer (LH) |
| 19. | Seat cushion outer finisher (LH) | 20. | Seat belt buckle | 21. | Seat cushion inner finisher (LH) (rear) |
| 22. | Seat cushion inner finisher (LH) (front) | 23. | Seat harness | 24. | Rear slide finisher |
| 25. | Seatback board | 26. | Seatback assembly | 27. | Headrest holder (locked) |
| 28. | Headrest holder (free) |
