Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

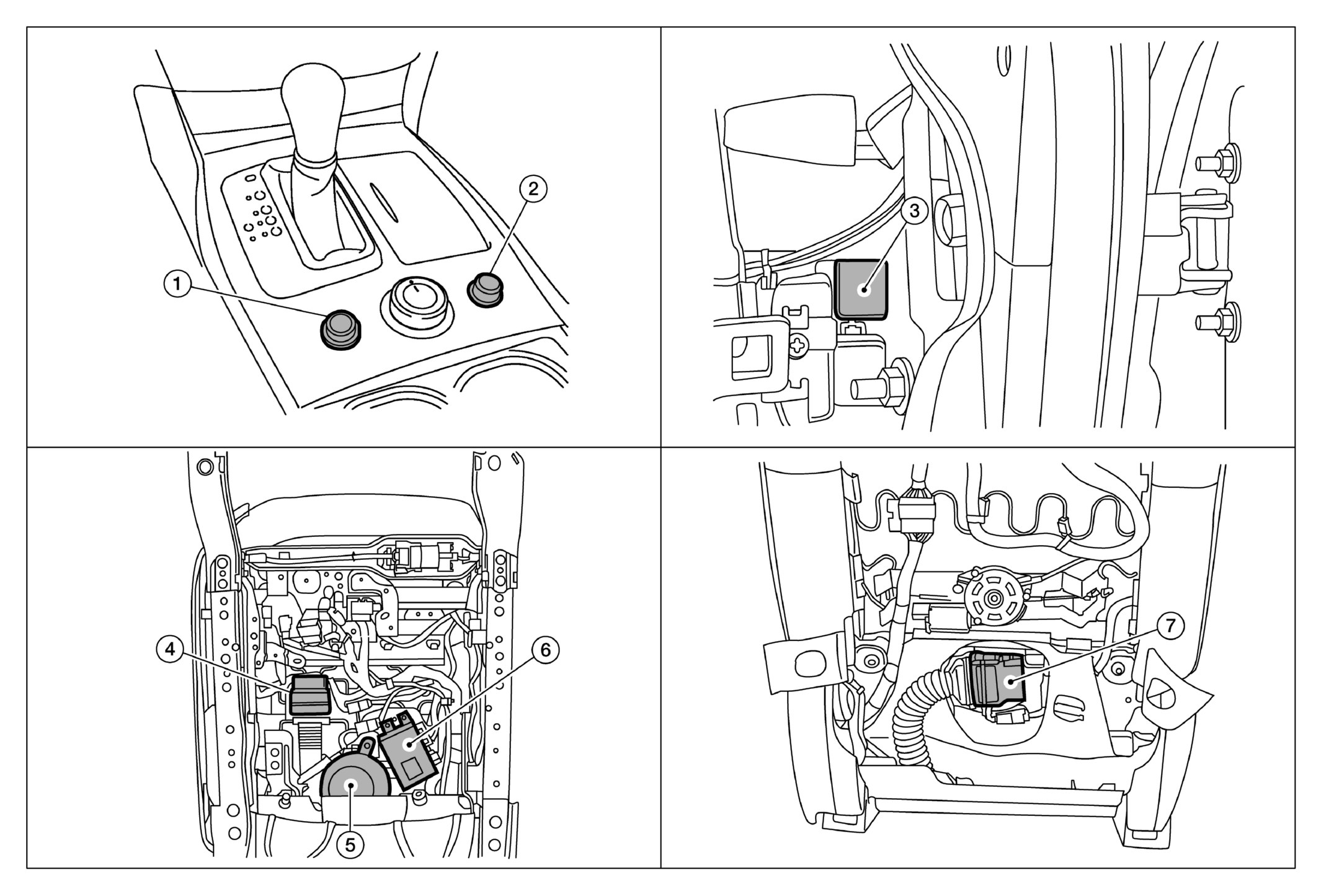

| 1. | Climate controlled seat switch (driver seat) | 2. | Climate controlled seat switch (passenger seat) | 3. | Climate controlled seat relay (view with instrument panel RH removed) |
| 4. | Seat cushion thermal electric device | 5. | Climate controlled seat blower motor | 6. | Climate controlled seat control unit |
| 7. | Seat back thermal electric device |
