Second Row Heated Seat Switch: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear center ventilator duct. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect harness connector from second row heated seat switch.

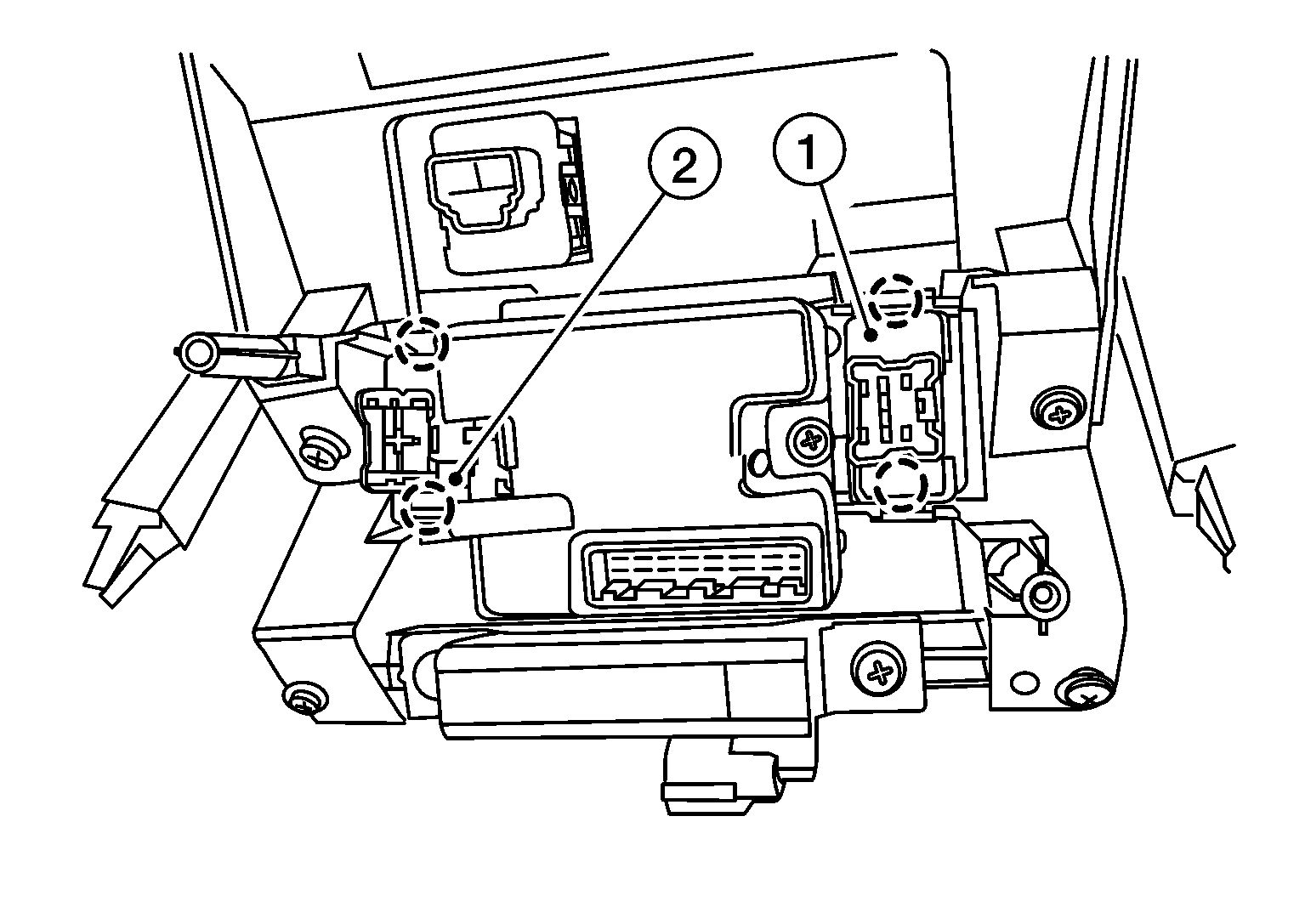

  3. Release pawls and remove second row heated seat switch (1, 2).
    GNSALJIA1483ZZ-483Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl
