RH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Remove RH seat cushion. Refer to SEAT CUSHION .
Remove the recline lever.

Courtesy of NISSAN NORTH AMERICA, INC.
1. Remove snap ring (2) upward using a suitable tool.
2. Remove recline lever (3).
Remove screw ( ) and the seat cushion outer finisher (RH) (1).
: Pawl

: Metal clip
Remove screws ( ) and lift seat cushion latch finisher (1) to remove.

Courtesy of NISSAN NORTH AMERICA, INC.

: Metal clip
Remove two screws and the rear finisher.

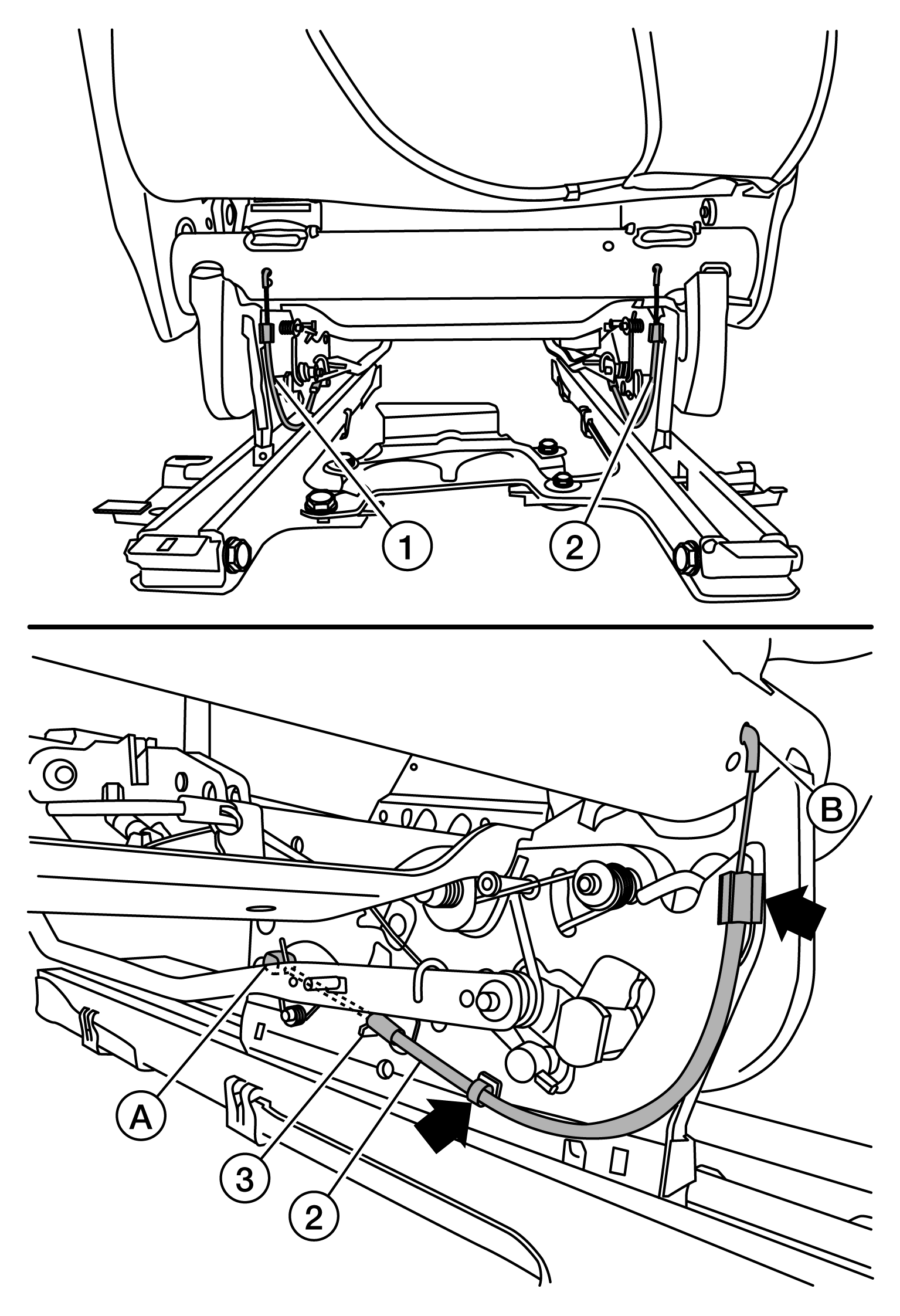

Remove the seat slide release cable (1) or (2) as necessary, from the seat frame assembly (3).

Courtesy of NISSAN NORTH AMERICA, INC.
1. Release ( ) the seat slide release cable (1).
  CAUTION:
  Note the cable routing for correct installation.
2. Separate the seat slide release cable (1) from the seat frame assembly (3).
3. Release cable end (A) and remove the seat slide release cable (1)
