LH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove LH seat cushion. Refer to SEAT CUSHION .
  2. Release pawls and remove the recline finisher (center) (1).
    G09578245Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  3. Release clip.

    SANKAKU-H : Clip

  4. Remove screws (ARROWF ) and lift the seat cushion latch finisher (2) to remove.

    SHIKAKU-H : Metal clip

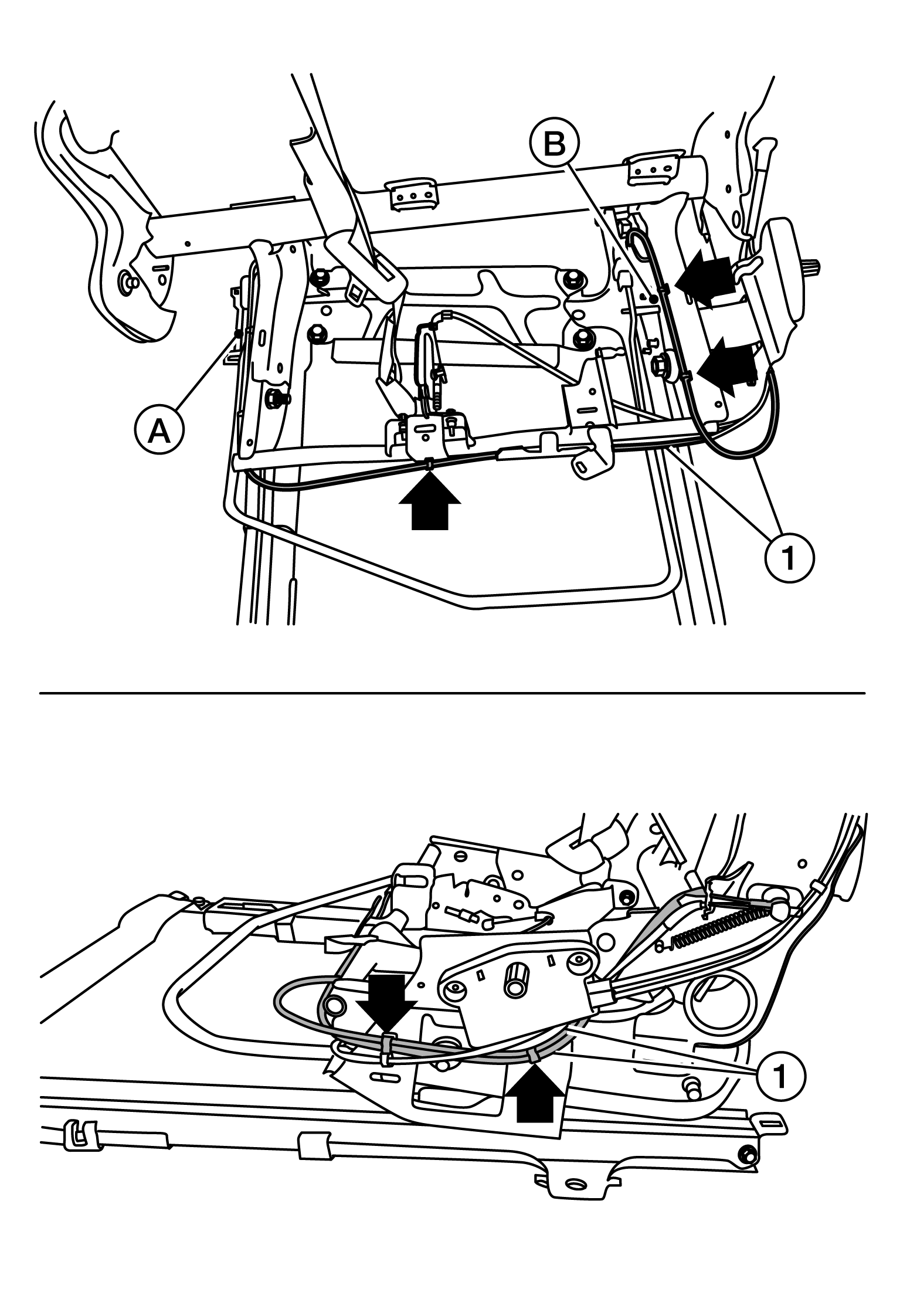

  5. Remove the seat slide release cable (1) from both RH side (A) and LH side (B) of seat frame assembly.
    G08853541Courtesy of NISSAN NORTH AMERICA, INC.
    1. Release (ARROWF ) the seat slide release cable (1) from the seat frame assembly.
      CAUTION:

      Note the cable routing for correct installation.

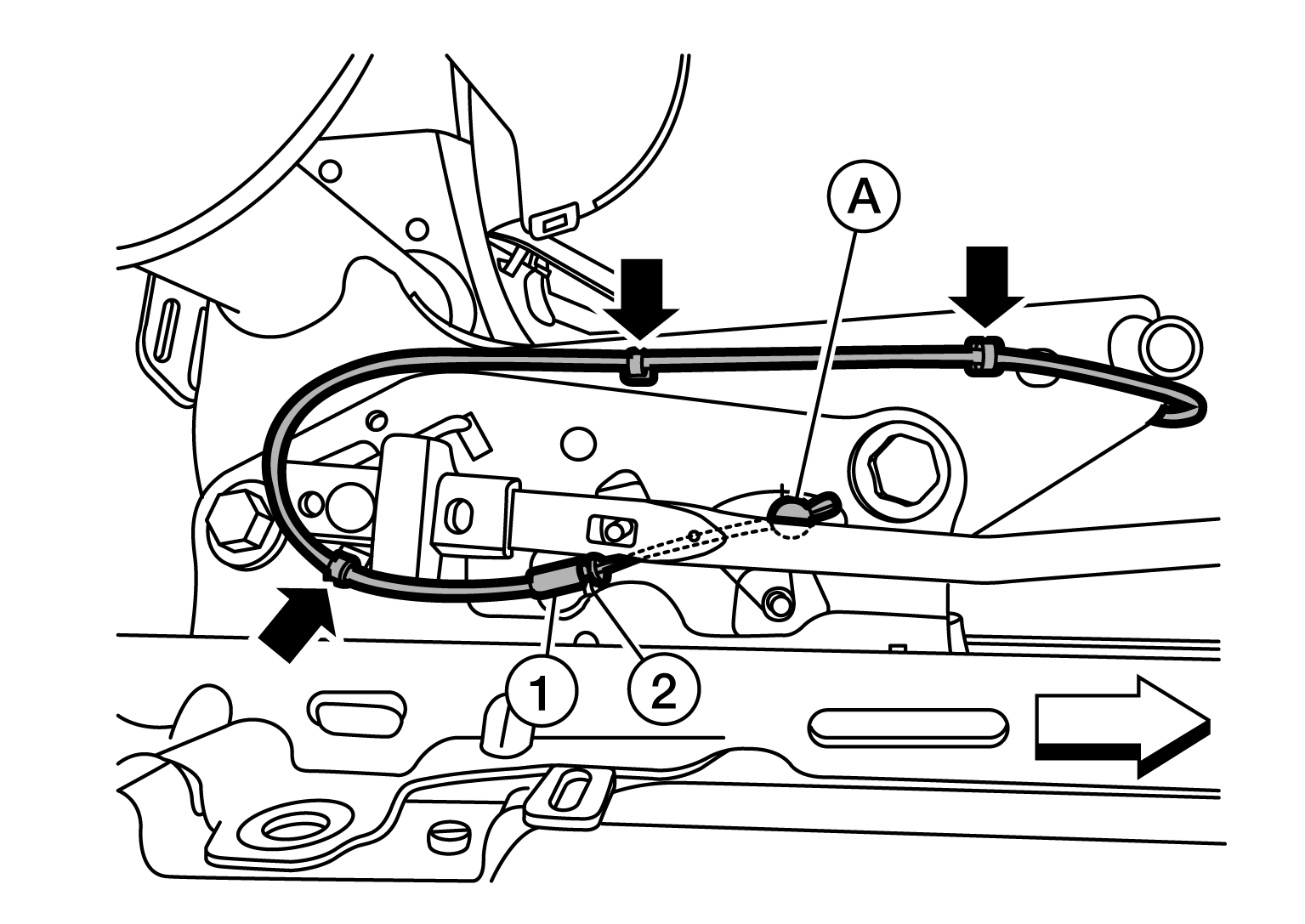

    2. Release (ARROWF ) the seat slide release cable (1).
      GNSALJIA1111ZZ-111Courtesy of NISSAN NORTH AMERICA, INC.
    3. Separate the seat slide release cable (1) from the seat frame assembly (2).
    4. Release cable end (A).
      • RH side shown in illustration, LH side similar.

        ARROW : Front

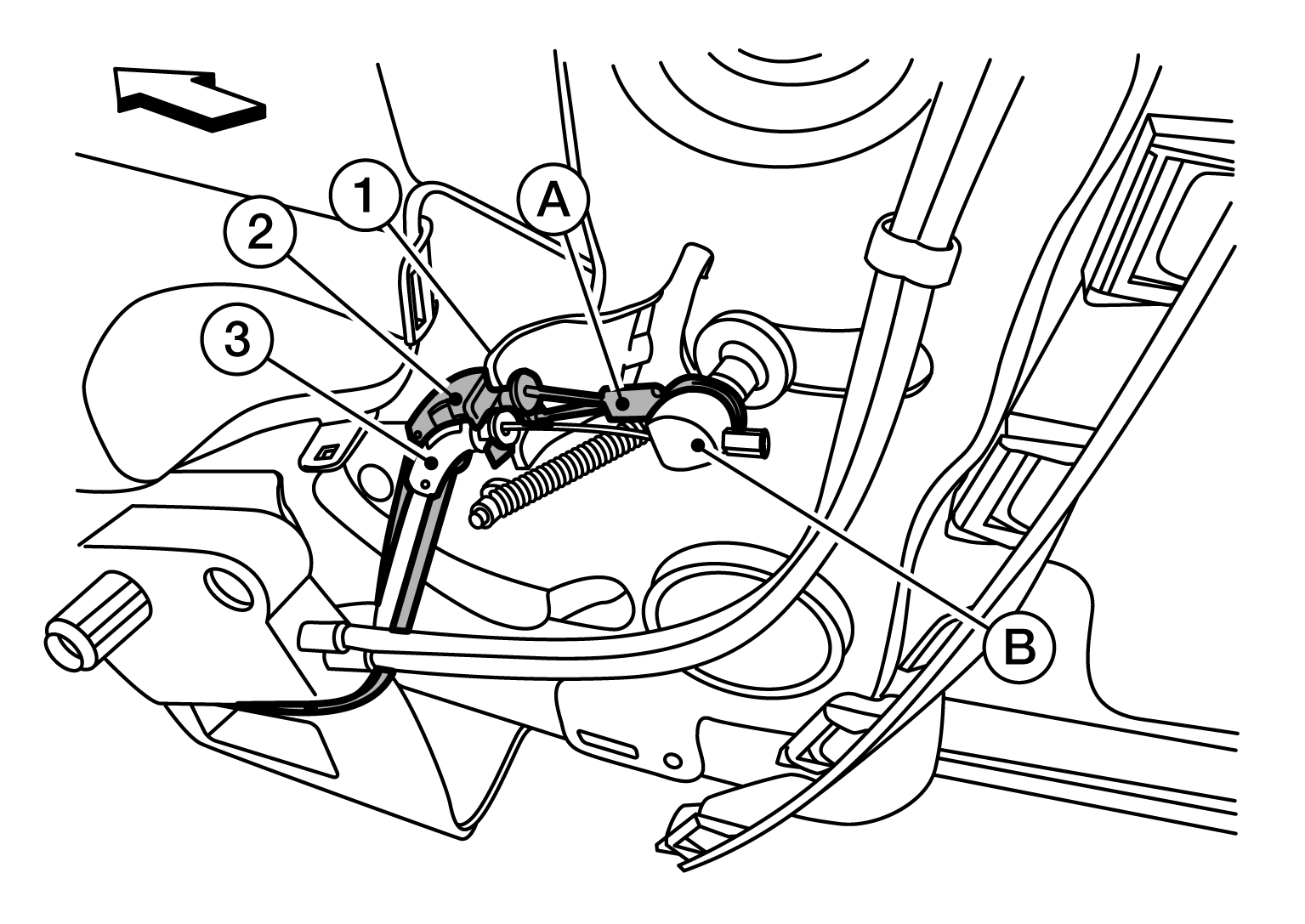

  6. Separate the seat cushion release cable (3) from the seat slide release cable (2).
    G09516066Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

  7. Release cable end (B) and position the seat cushion release cable (3) aside.
  8. Separate the seat slide release cable (2) from the seat frame assembly (1).
  9. Remove the seat slide release cable end (A) and the seat slide release cable.
