RH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the LH seat to the full forward position and slide the RH seat to the full rearward position.

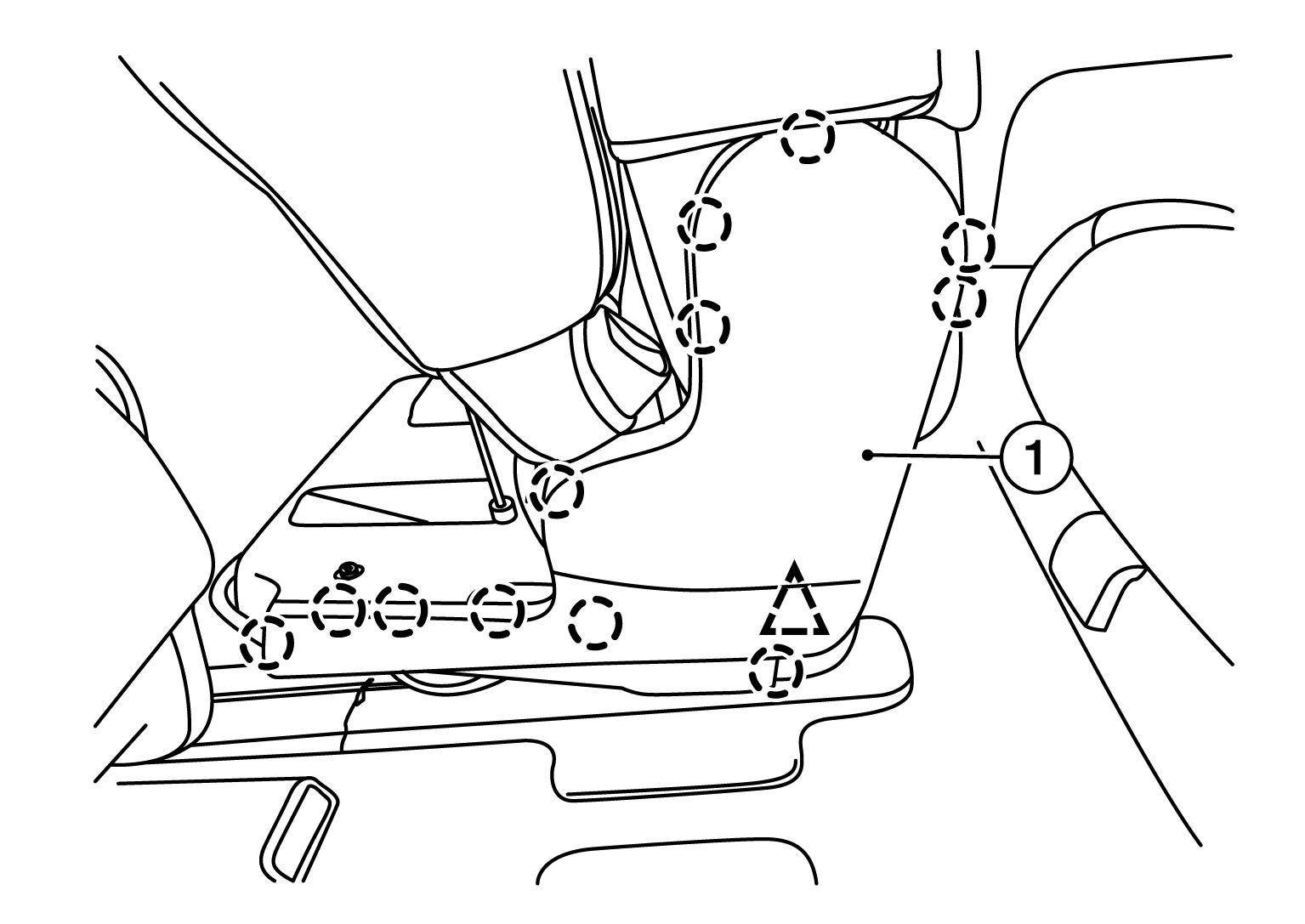

  2. Remove outer finisher (LH) (1).
    G09425599Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    SANKAKU-H : Clip

  3. Pull seat belt buckle through bottom of RH seat cushion.
  4. Disconnect the harness connectors from the RH seat cushion heater (if equipped) and release the harness from attachments.
    NOTE:

    Take note of harness routing and attachment location for correct installation.

  5. Remove the support strut at bottom.

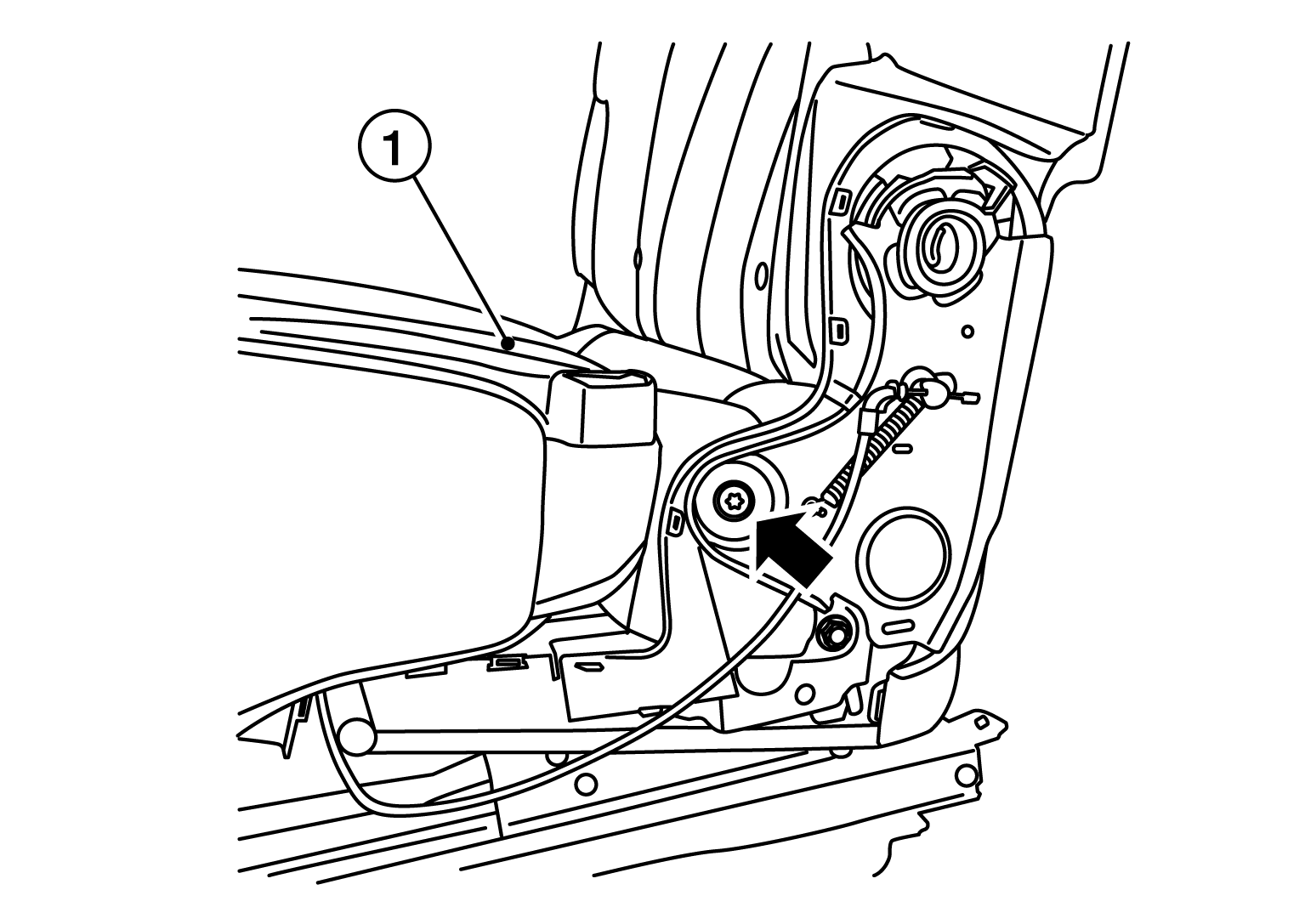

  6. Remove seat cushion pivot bolt (ARROWF ), then the RH seat cushion (1).
    G08853534Courtesy of NISSAN NORTH AMERICA, INC.
