LH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

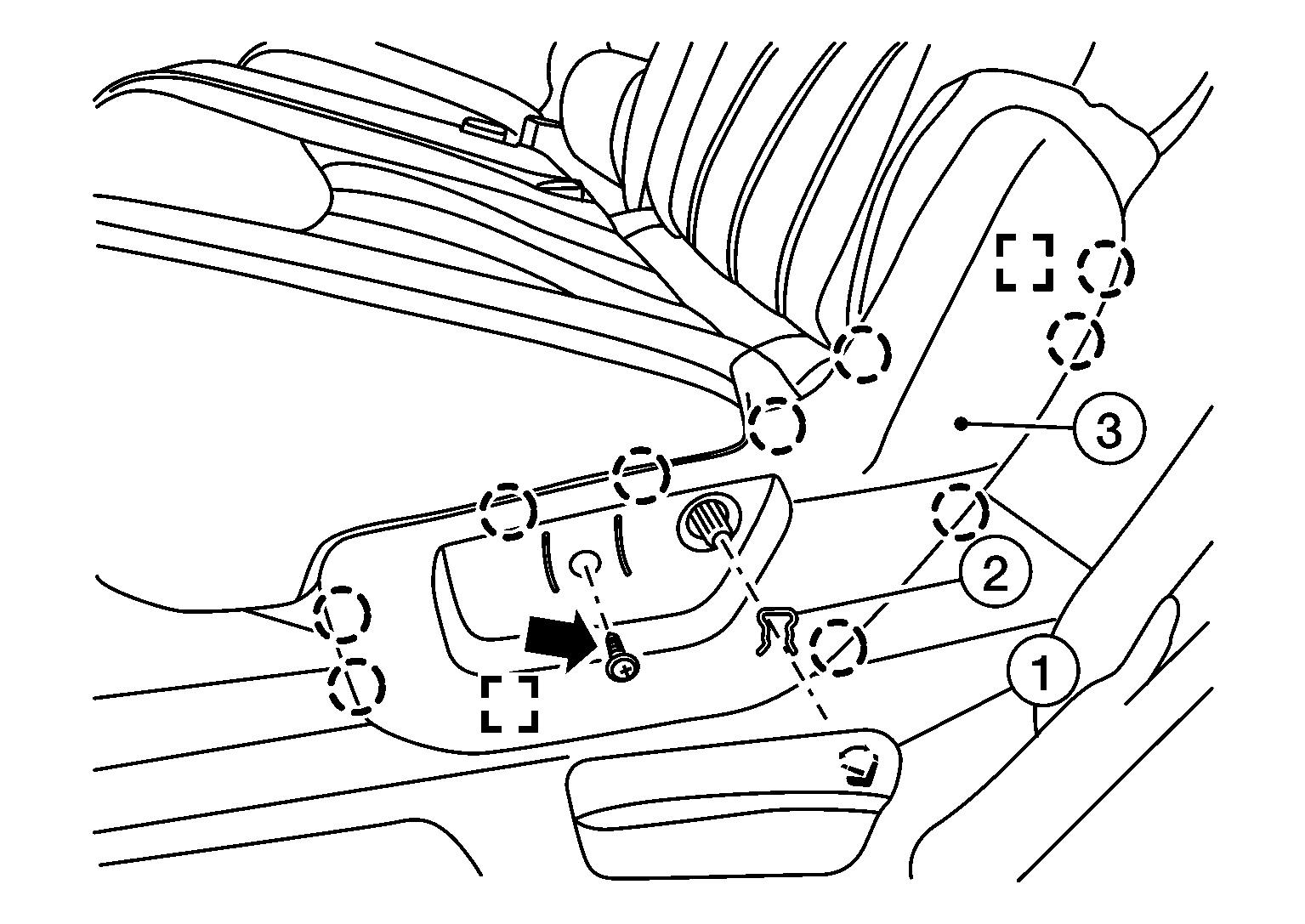

  1. Remove the recline lever.
    GNSAWJIA0965ZZ-965Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove snap ring (2) upward using a suitable tool.
    2. Remove the recline lever (1).
  2. Remove screw (ARROWF ) and seat cushion outer finisher (LH) (3).

    MARU-H : Pawl

    SHIKAKU-H : Metal clip

  3. Pull seat belt buckles through bottom of LH seat cushion.
  4. Disconnect the harness connectors from the LH seat cushion heater (if equipped) and release the harness from attachments.
    NOTE:

    Take note of harness routing and attachment location for correct installation.

  5. Remove the support strut at bottom.

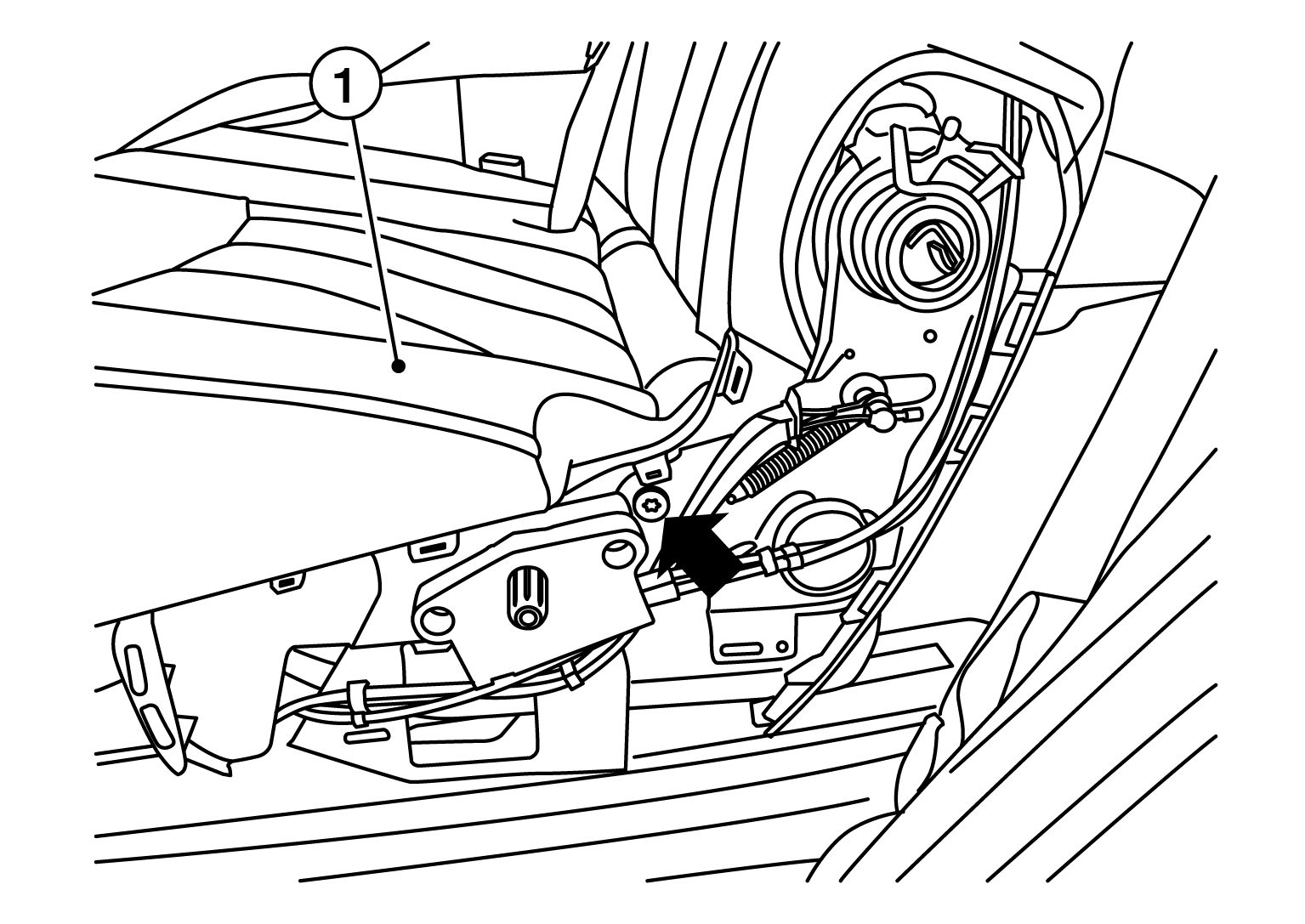

  6. Remove seat cushion pivot bolt (ARROWF ), then the LH seat cushion (1).
    G08853532Courtesy of NISSAN NORTH AMERICA, INC.
