RH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Remove RH seat cushion. Refer to SEAT CUSHION .

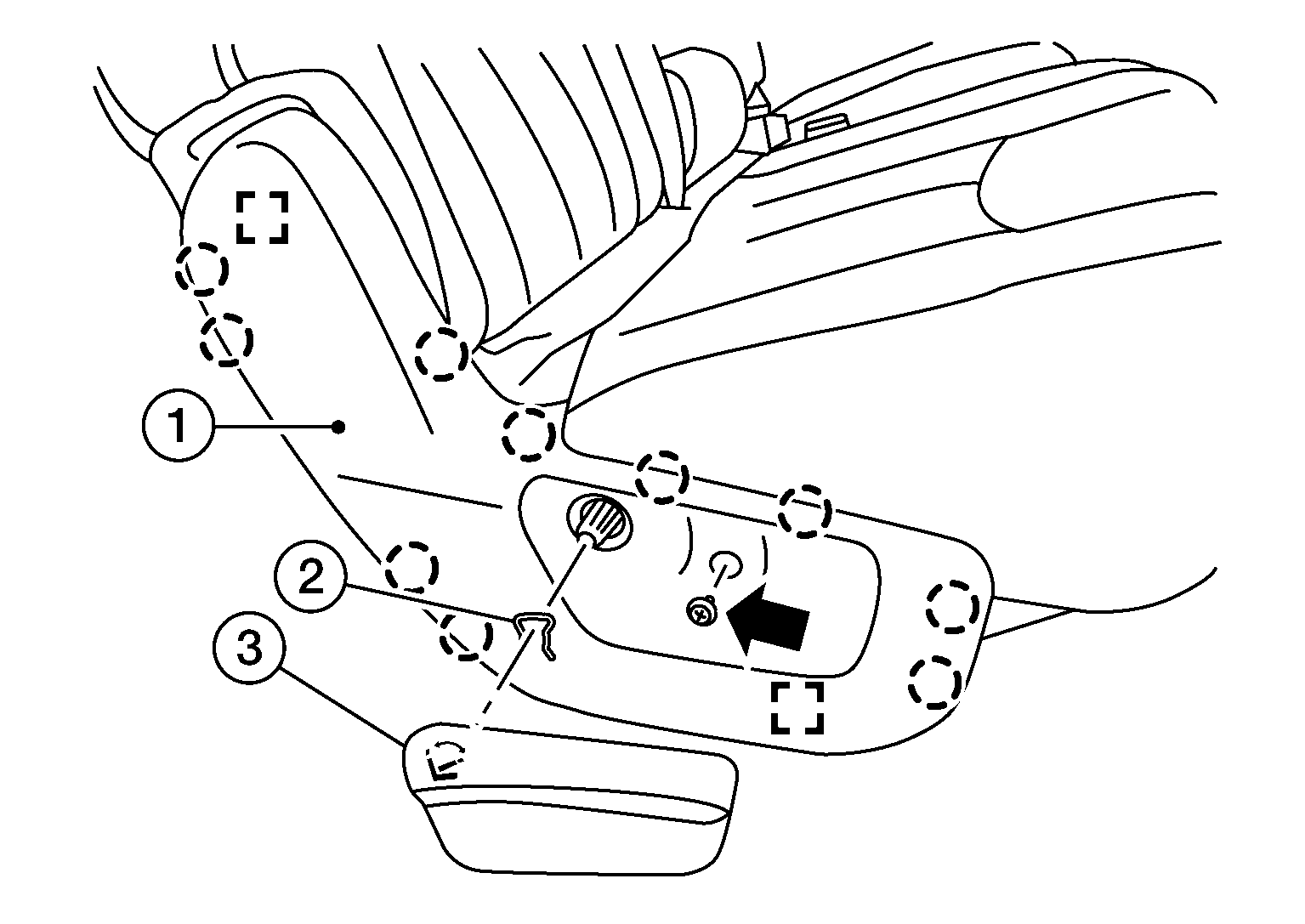

Remove the recline lever.

Courtesy of NISSAN NORTH AMERICA, INC.
1. Remove snap ring (2) upward using a suitable tool.
2. Remove recline lever (3).
Remove screw ( ) and the seat cushion outer finisher (RH) (1).
: Pawl

: Metal clip

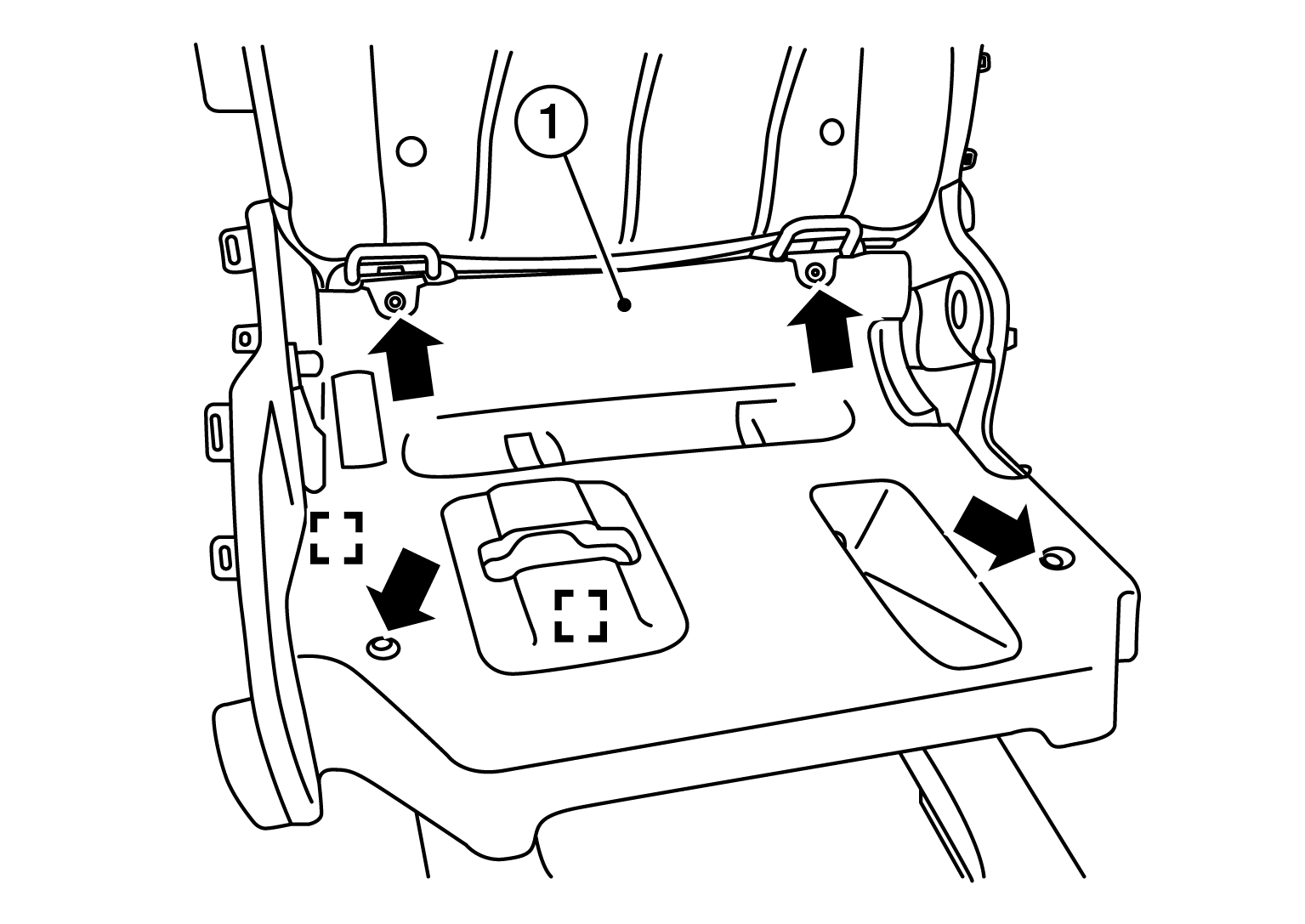

Remove screws ( ) and lift seat cushion latch finisher (1) to remove.

Courtesy of NISSAN NORTH AMERICA, INC.

: Metal clip
Release ( ) the seat cushion release cable (1) from the seat frame assembly (3).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
Note the cable routing for correct installation.

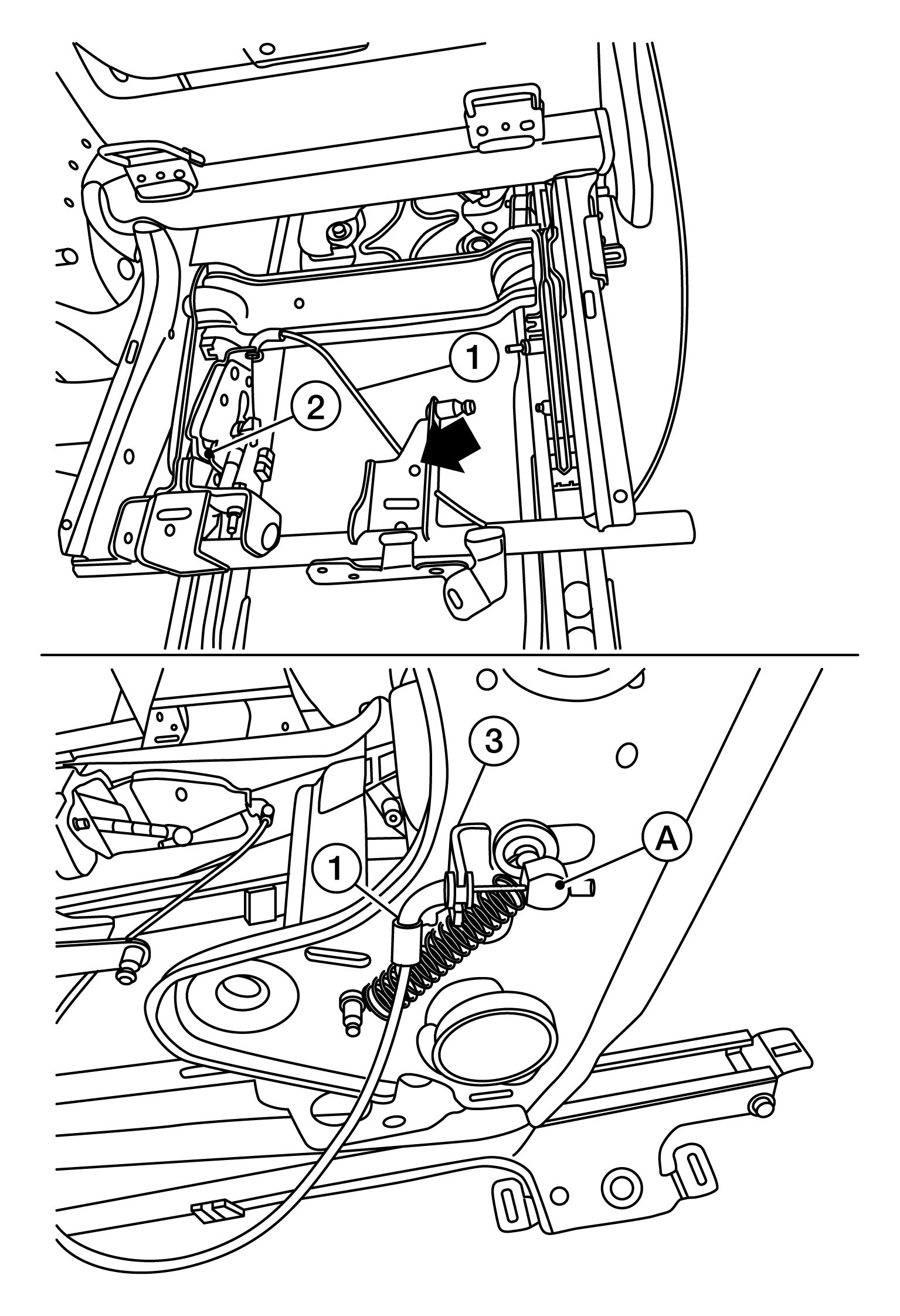

1. Remove the seat cushion release cable (1) from the seat cushion latch (2).
2. Separate the cushion release cable (1) from the seat frame assembly (3).
3. Release cable end (A) and remove seat cushion release cable (1).
