LH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH seat cushion. Refer to SEAT CUSHION .

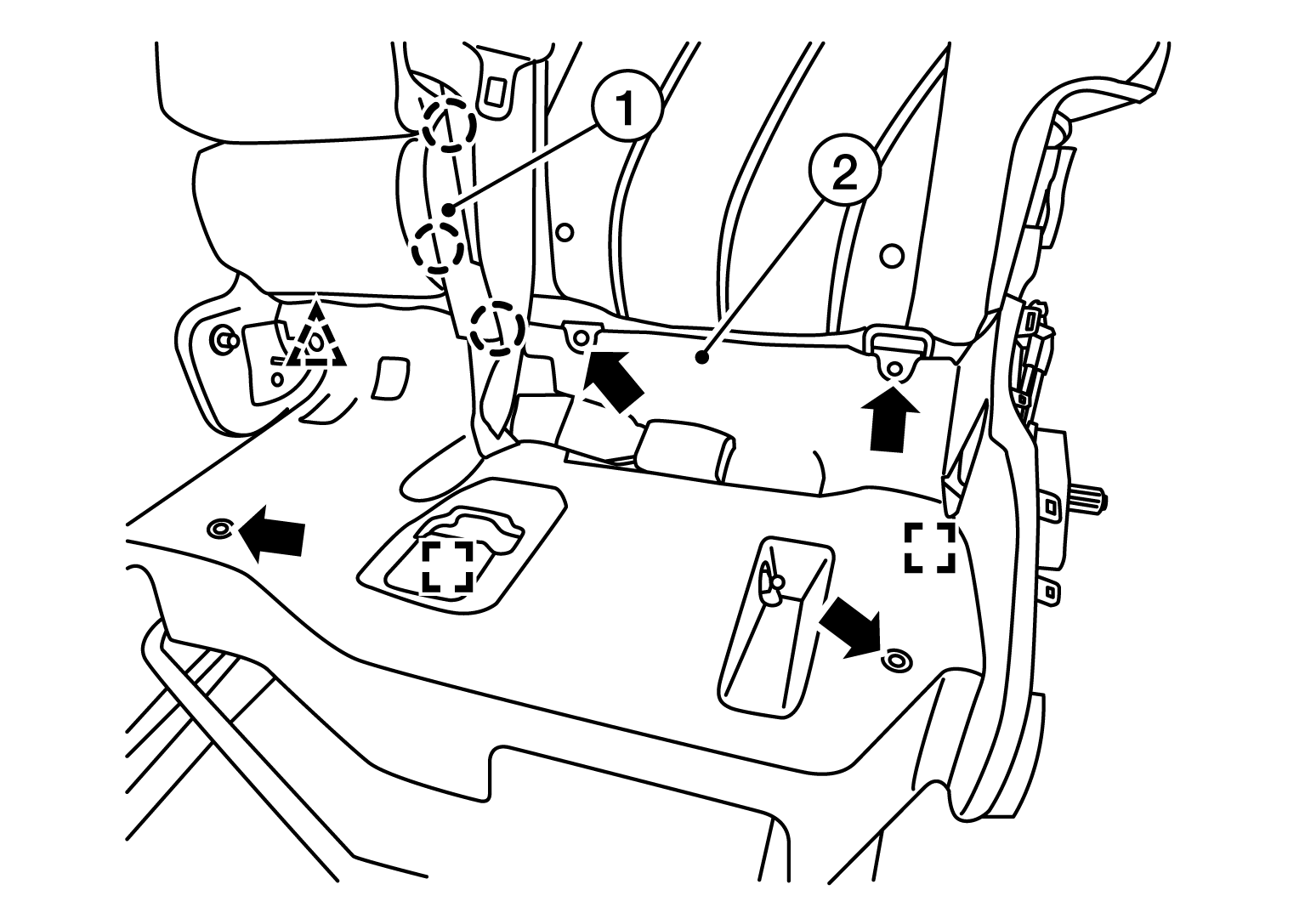

  2. Release pawls and remove the recline finisher (center) (1).
    G09578245Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

  3. Release clip.

    SANKAKU-H : Clip

  4. Remove screws (ARROWF ) and lift seat cushion latch finisher (2) to remove.

    SHIKAKU-H : Metal clip

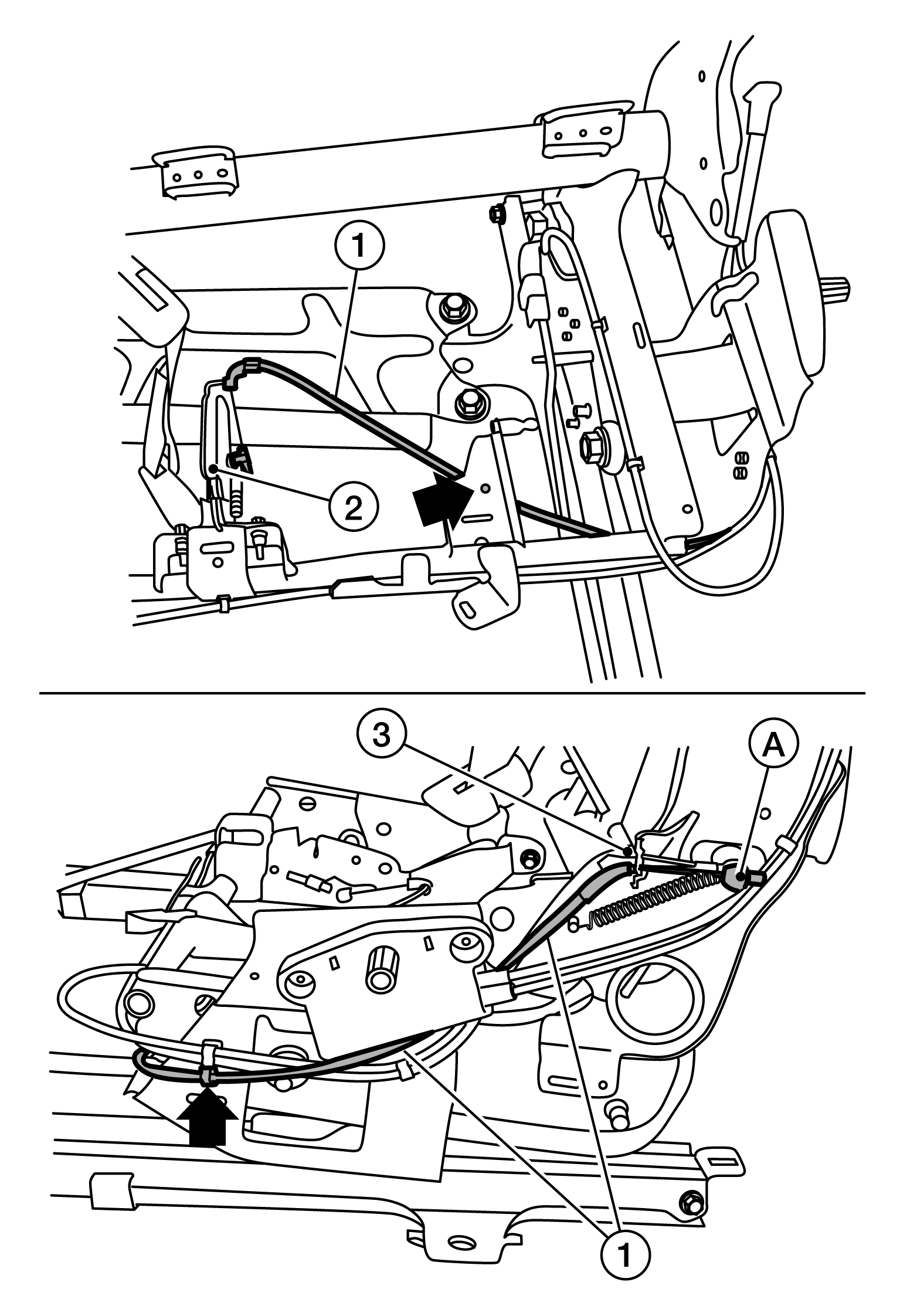

  5. Remove the seat cushion release cable (1) from seat cushion latch (2).
    G08853536Courtesy of NISSAN NORTH AMERICA, INC.
  6. Release (ARROWF ) the seat cushion release cable (1) from the seat frame assembly (3).
    CAUTION:

    Note the cable routing for correct installation,

  7. Release cable end (A) and remove seat cushion release cable.
