LH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Before removal and installation, use shop cloths to protect parts from damage.
  • During removal and installation, an assistant is required to protect against injury or damage.
  1. Remove the rear kicking plate (LH). Refer to REMOVAL AND INSTALLATION - REAR KICKING PLATE .
  2. Remove the headrests (LH/RH).
  3. Slide the seat to the full rearward position.
  4. Remove the front slide finishers (LH/RH).
    1. Pull up on the front edge to release pawls.
    2. Then slide forward to remove from seat track.

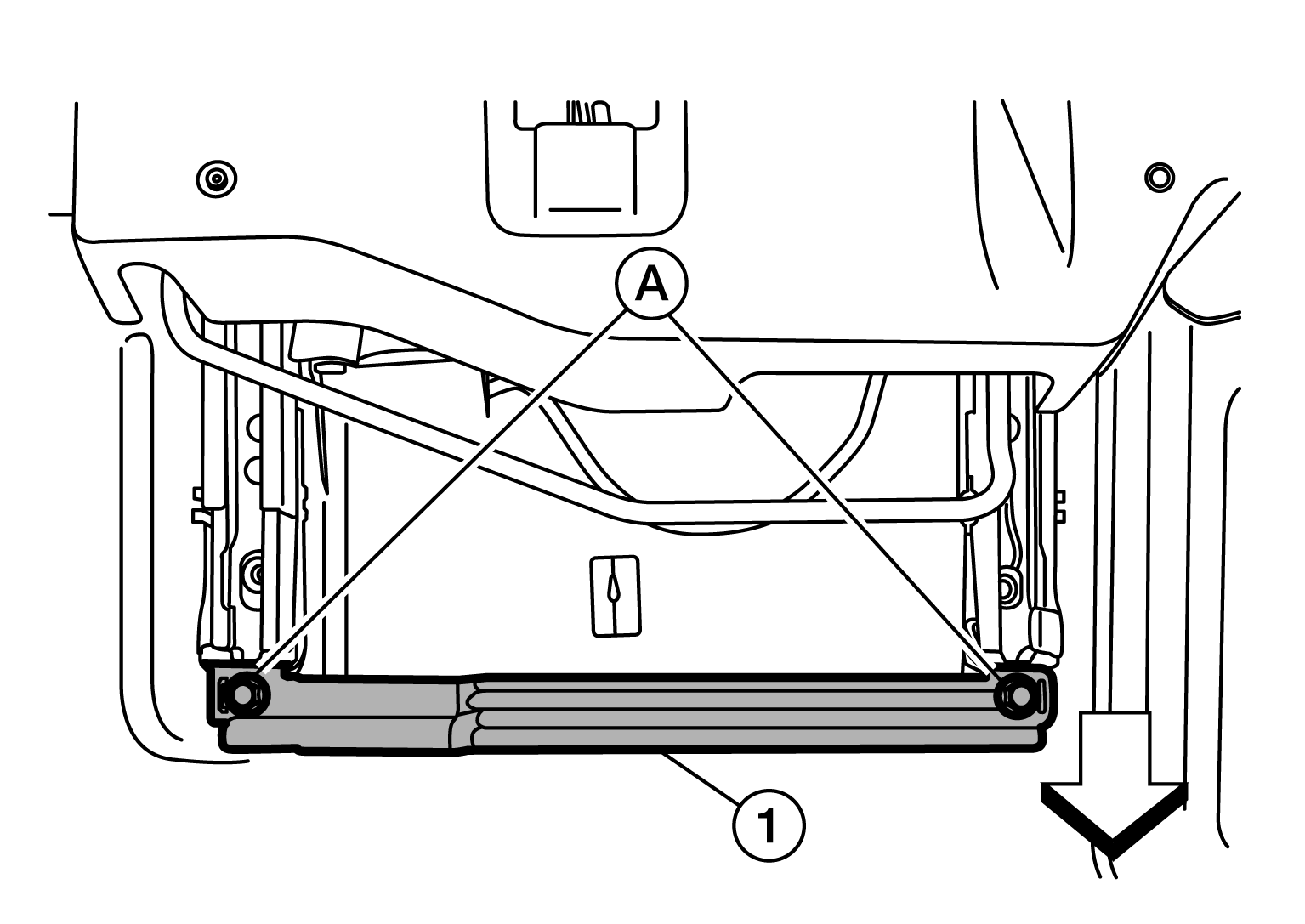

  5. Place the front cross brace (1) from Seat Fixture Kit [SST: - (J-51030)] over the track alignment holes, then insert the two LH threaded bolts (A) through the brace into the track and tighten.
    GNSALJIA1106ZZ-106Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

  6. Disconnect the harness connector (if equipped), then release from seat frame assembly.
  7. Remove the two seat front bolts.
  8. Slide the seat to the full forward position.
  9. Remove the rear slide finishers (LH/RH).
    1. Pull up on the rear edge to release pawls.
    2. Then slide forward to remove from seat track.

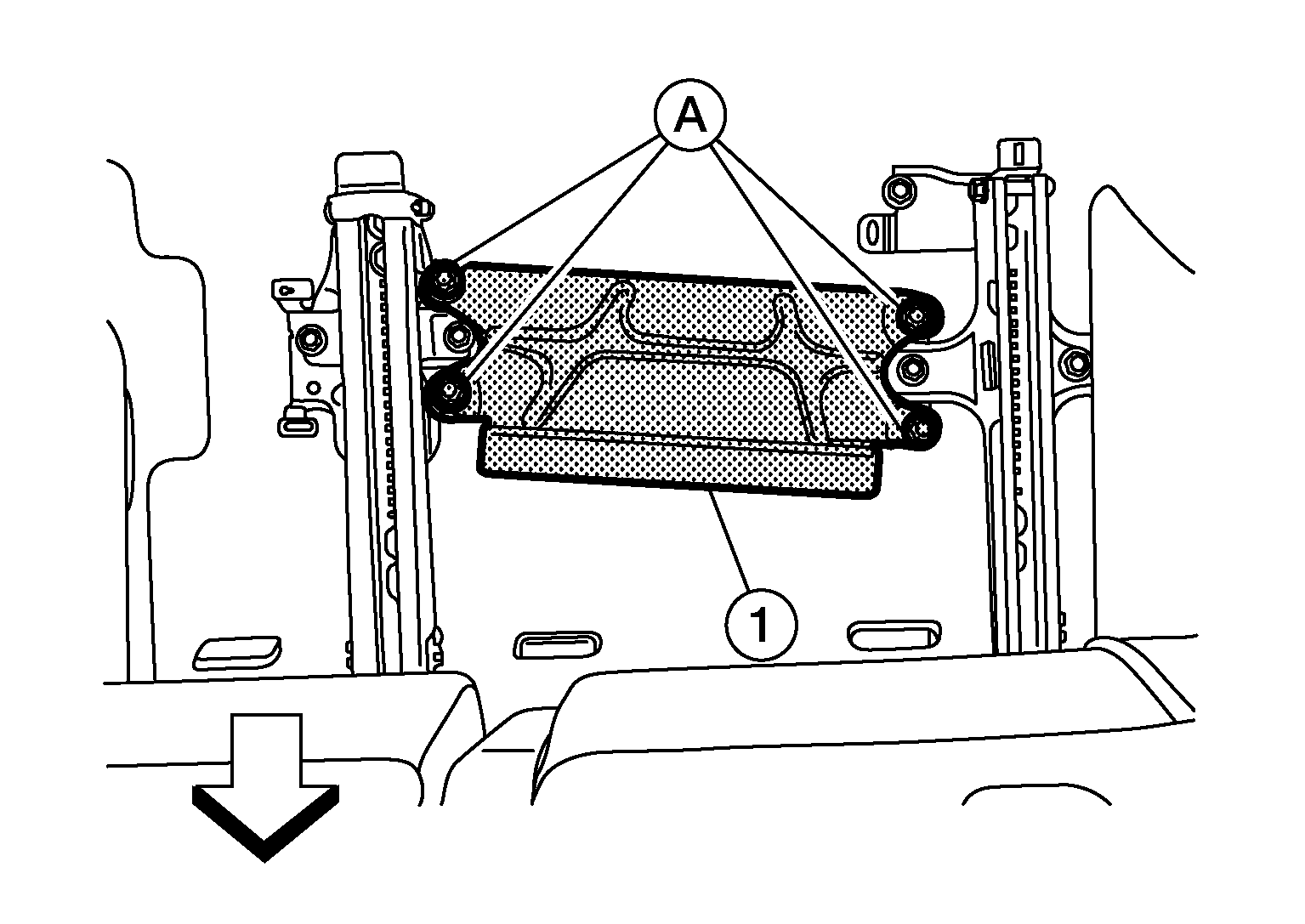

  10. Place the rear cross brace (1) from Seat Fixture Kit [SST: - (J-51030)] over the track alignment holes, then insert the four LH threaded bolts (A) through the brace into the track and tighten.
    GNSAWJIA0954ZZ-954Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

  11. Remove the five seat rear bolts.
  12. Fold the seatback in the flat position, then remove the seat from the vehicle.
