RH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH seat seatback. Refer to SEATBACK .
    NOTE:

    It is not necessary to separate the seatback trim from the seatback pad.

  2. Remove the support finisher.

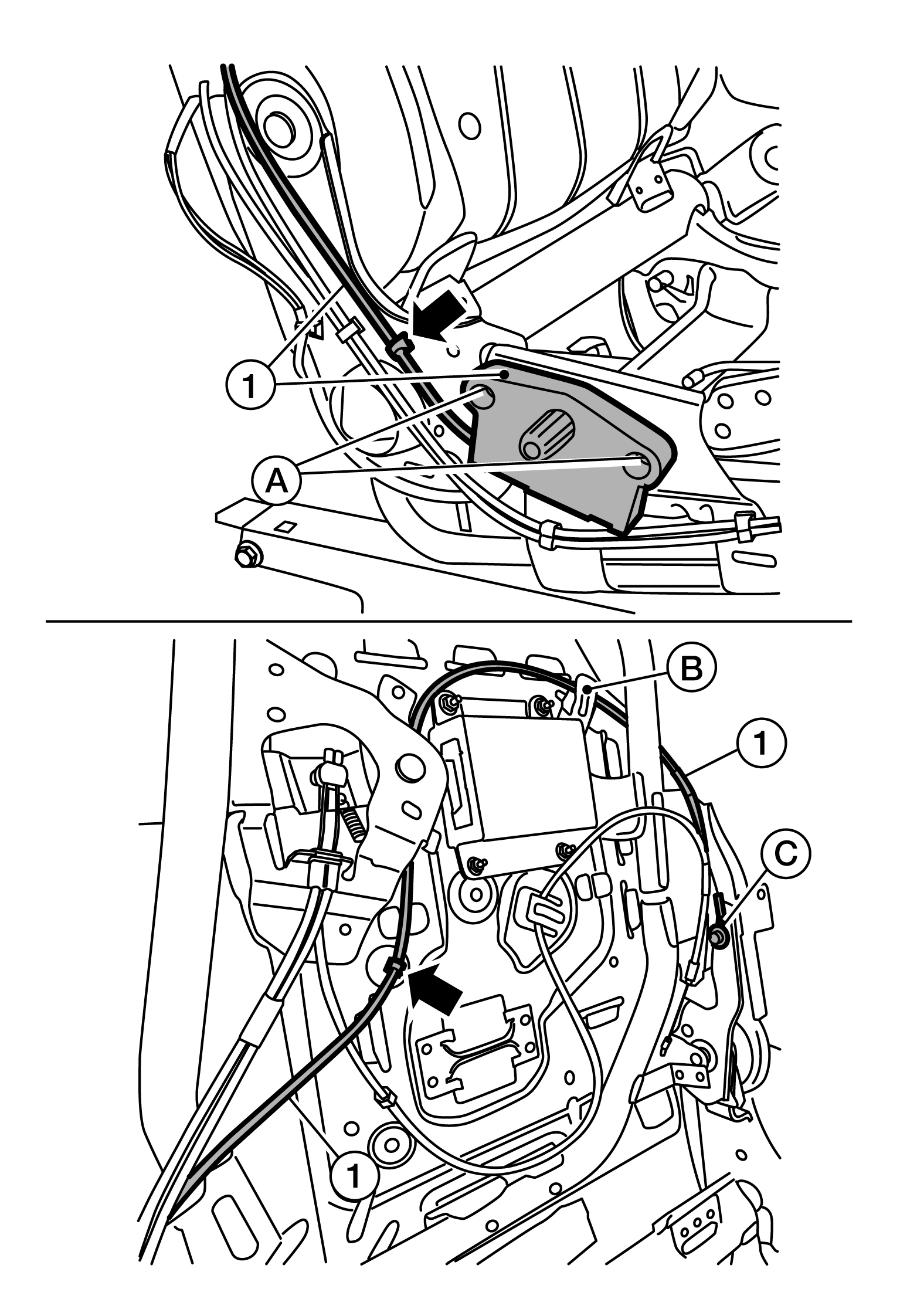

  3. Remove the recline release cable assembly screws (A).
    G08853549Courtesy of NISSAN NORTH AMERICA, INC.
  4. Release (ARROWF ) the recline release cable assembly (1) from the seat frame assembly.
    CAUTION:

    Note the cable routing for correct installation.

  5. Remove the recline release cable assembly (1) from routing guide (B).
  6. Remove the recline release cable assembly end (C) and the recline release cable assembly (1).
