LH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the LH seat seatback. Refer to SEATBACK .
    NOTE:

    It is not necessary to separate the seatback trim from the seatback pad.

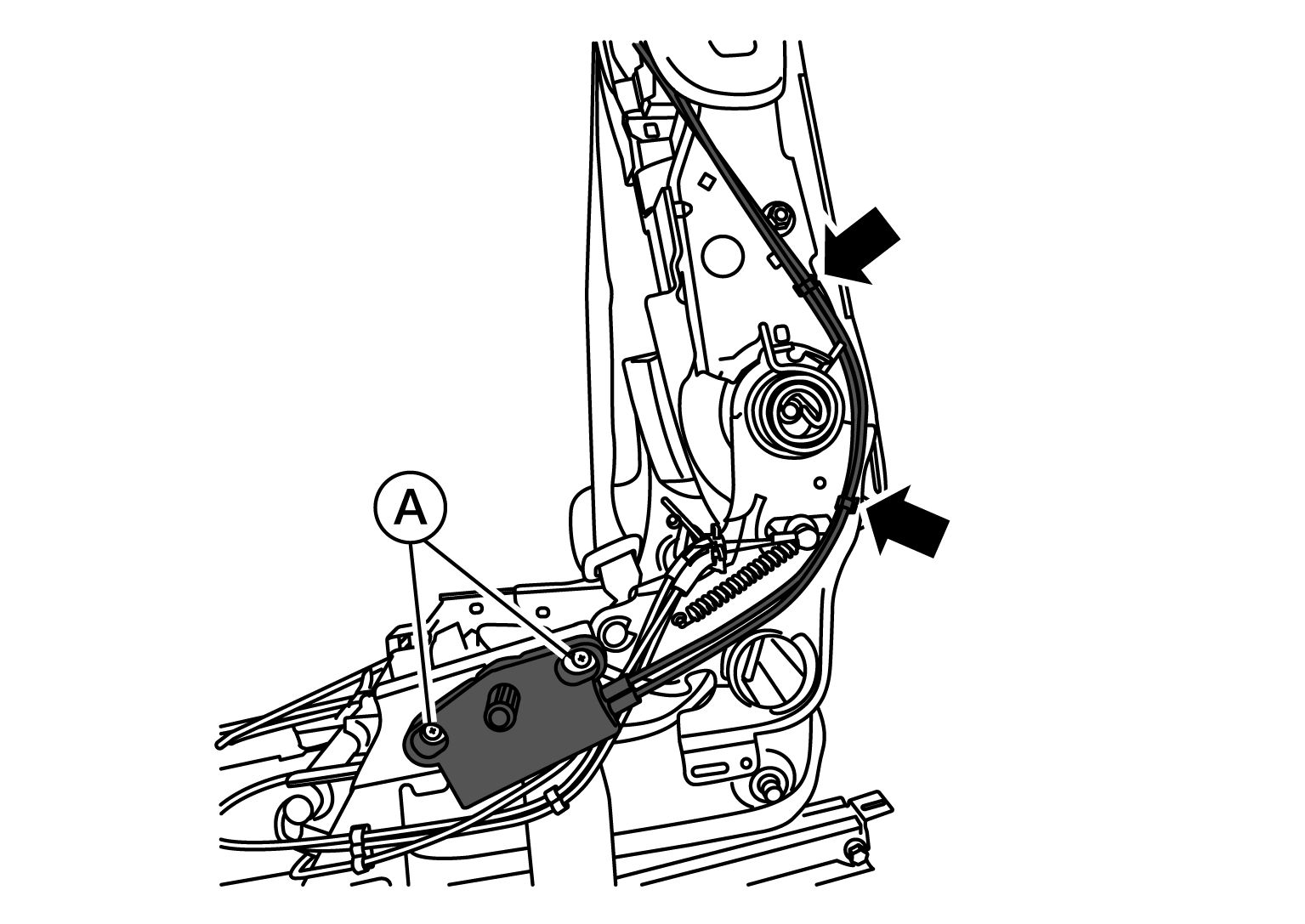

  2. Remove screws (A).
    G08853547Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release (ARROWF ) the recline release cable assembly from the seat frame assembly.
    CAUTION:

    Note the cable routing for correct installation.

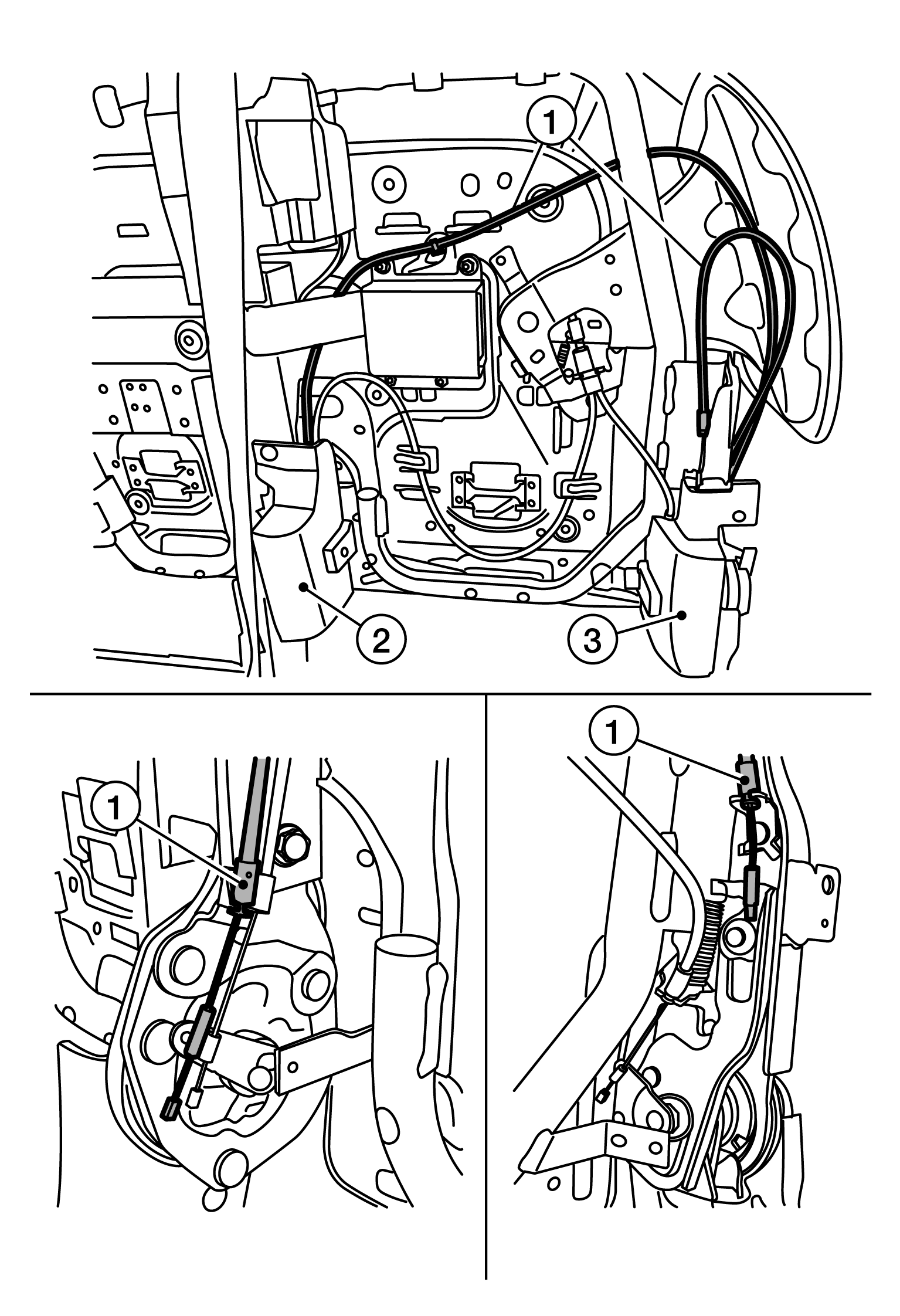

  4. Remove the support finishers (2) and (3).
    G08853548Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove the recline release cable assembly (1) from the RH side.
  6. Remove the recline release cable assembly (1) from the LH side.
