LH Seat: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove LH seat seatback. Refer to SEATBACK .
    NOTE:

    It is not necessary to separate the seatback trim from the seatback pad.

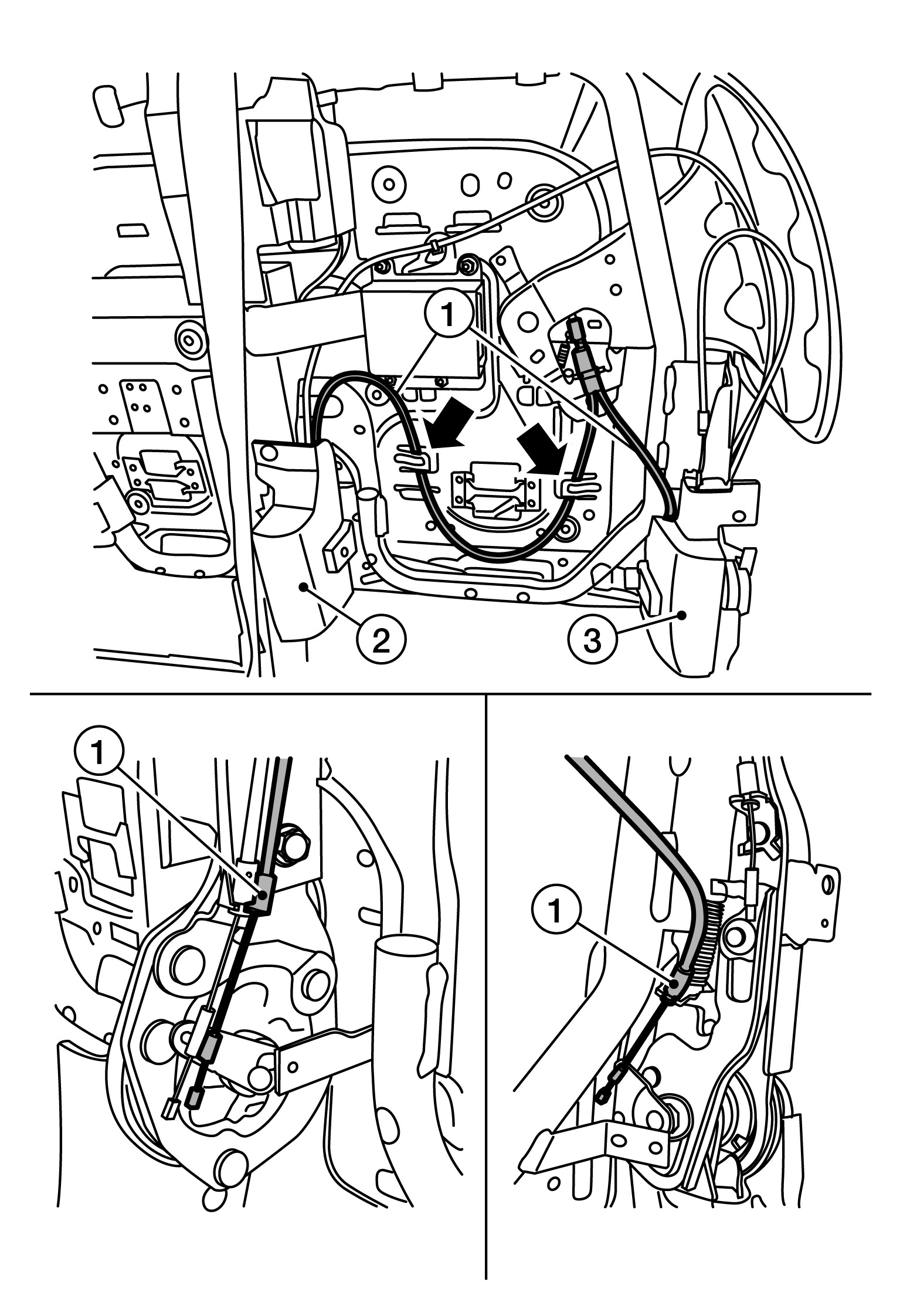

  2. Remove support finishers (2) and (3).
    G08853550Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove EZ entry cable (1) from routing guides (ARROWF ).
    CAUTION:

    Note the cable routing for correct installation

  4. Remove the EZ entry cable (1) from the RH side.
  5. Remove the EZ entry cable (1) from the LH side.
  6. Remove the EZ entry cable.
