Armrest Assembly: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

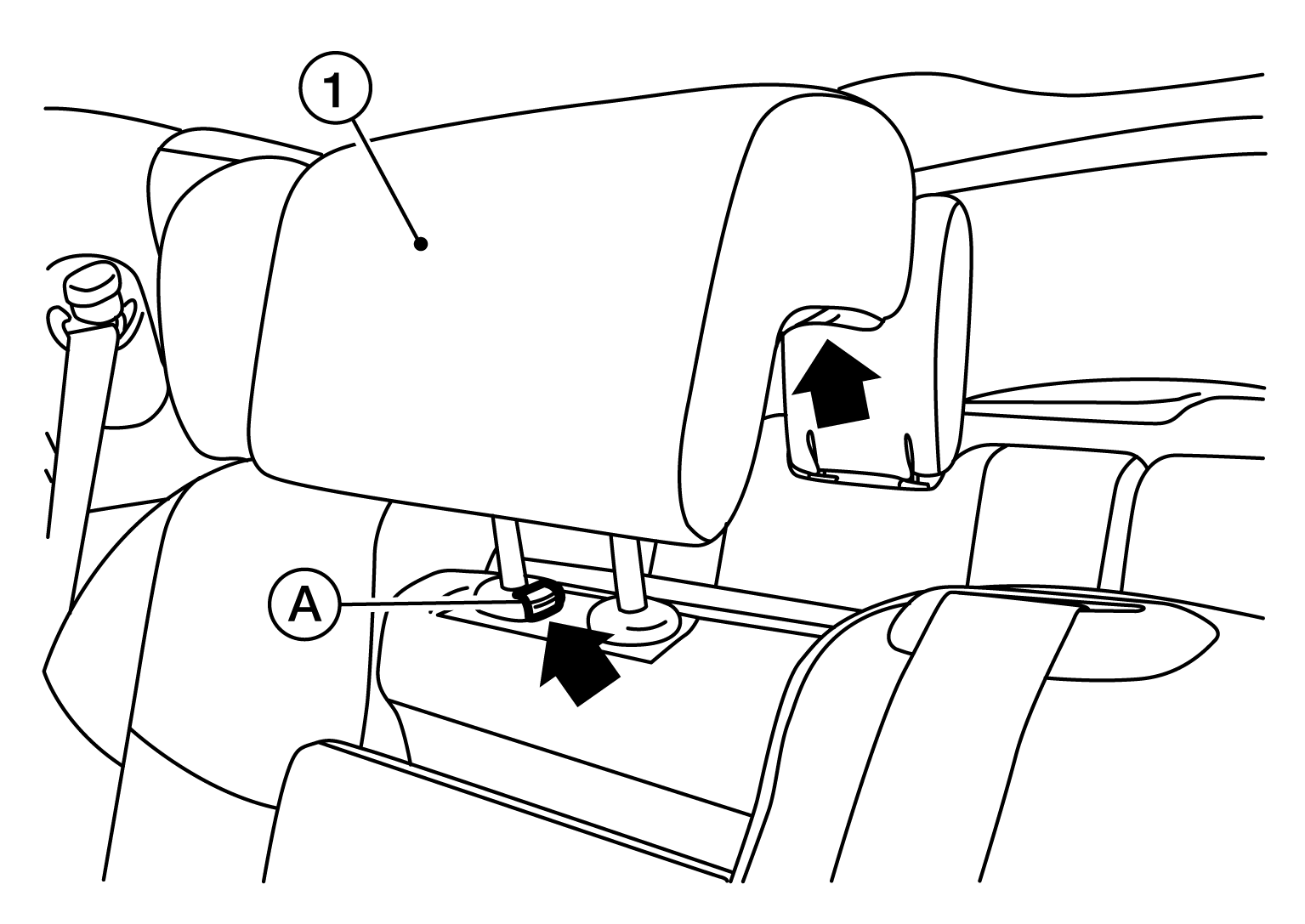

  1. Press in the headrest holder button (A), then remove LH seat headrest (RH) (1).
    G08853527Courtesy of NISSAN NORTH AMERICA, INC.

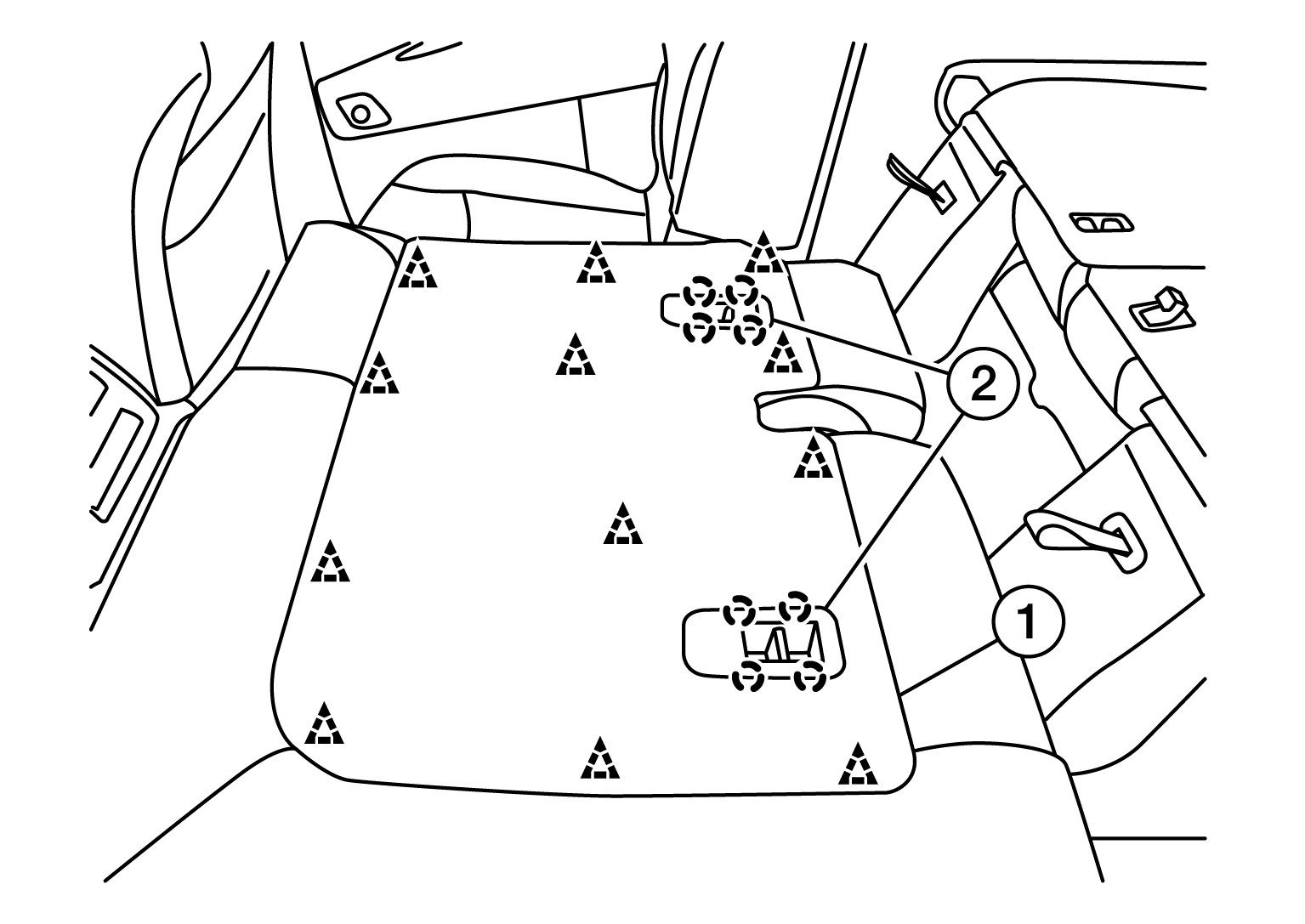

  2. Remove the tether anchor finishers (2).
    GNSAWJIA0846ZZ-846Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove seatback board (1).

    SANKAKU-H : Clip

    MARU-H : Pawl

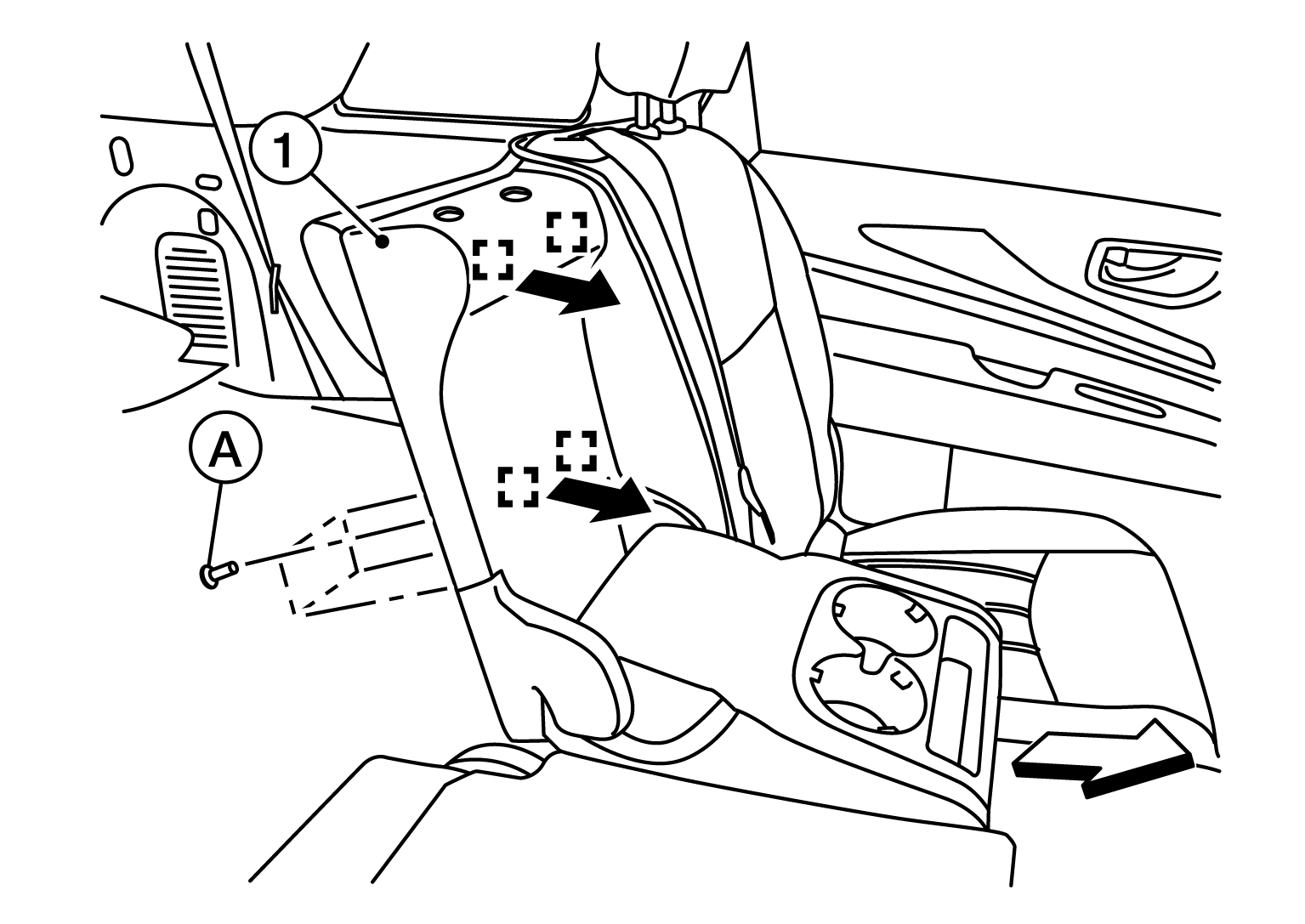

  4. Remove four armrest assembly bolts (A) and pull the armrest assembly (1) forward (ARROWF ) to release clips.
    GNSAWJIA0849ZZ-849Courtesy of NISSAN NORTH AMERICA, INC.

    SHIKAKU-H : Metal clip

    ARROW : Front

  5. Reach up behind the armrest assembly, release the headrest holder locks as shown in illustration and remove the headrest holders.
    G07024411Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Before removing/installing headrest holder, check its orientation (front/rear and right/left).

  6. Remove the armrest assembly.
