Seatback Thermal Electric Device: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seatback board. Refer to SEATBACK BOARD .

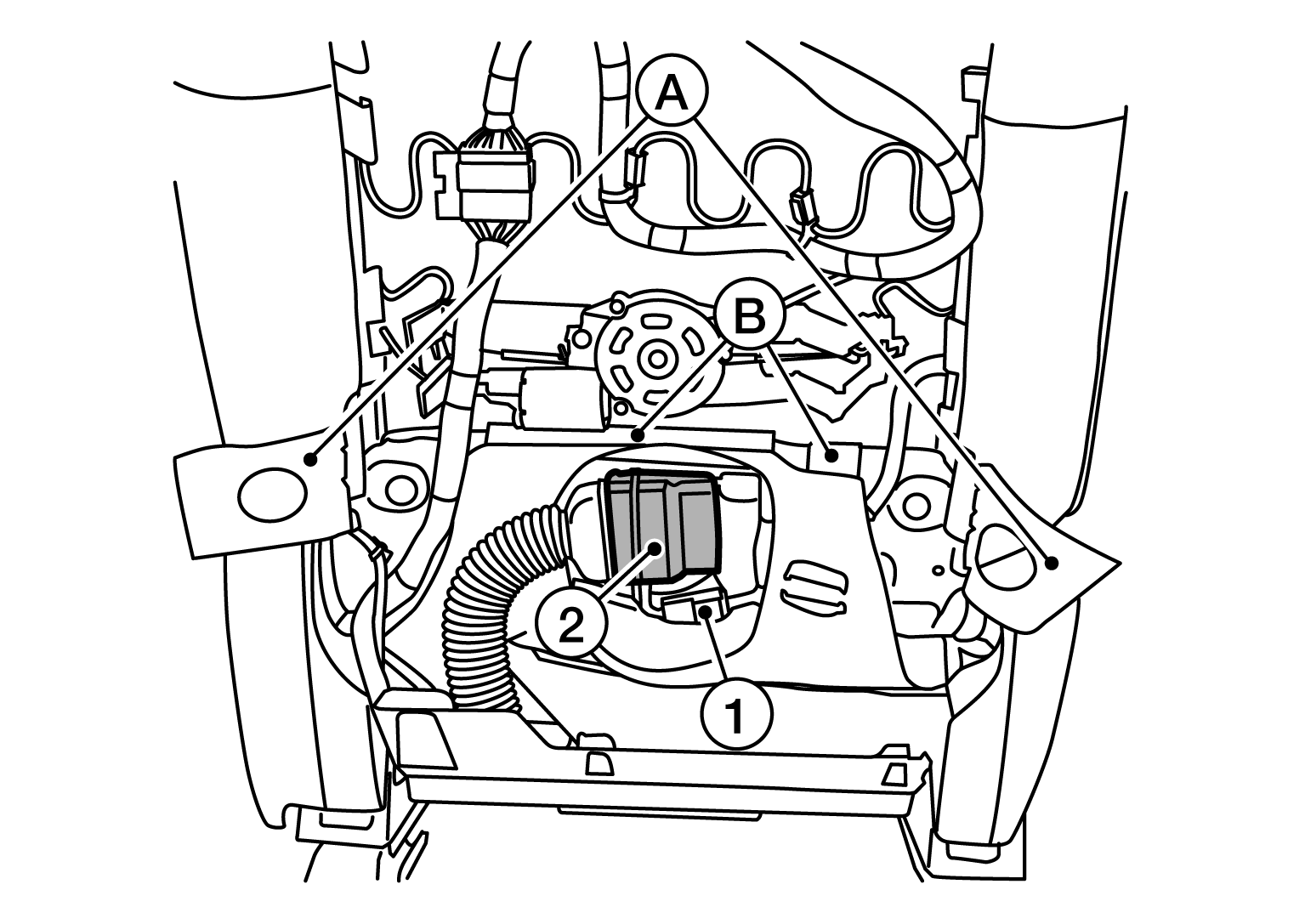

  2. Release the seatback hook fastener straps (A).
    G08853513Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the seatback J-clip retainers (B) holding the seatback trim to the seatback frame.
  4. Disconnect the harness connector (1) from the seatback thermal electric device (2).
  5. Remove the tie straps and seatback thermal electric device (2) from the upper blower duct and seatback frame.
