Seatback Board: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:
  • When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.
  • Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then wait at least three minutes.
  1. Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to REMOVAL AND INSTALLATION .

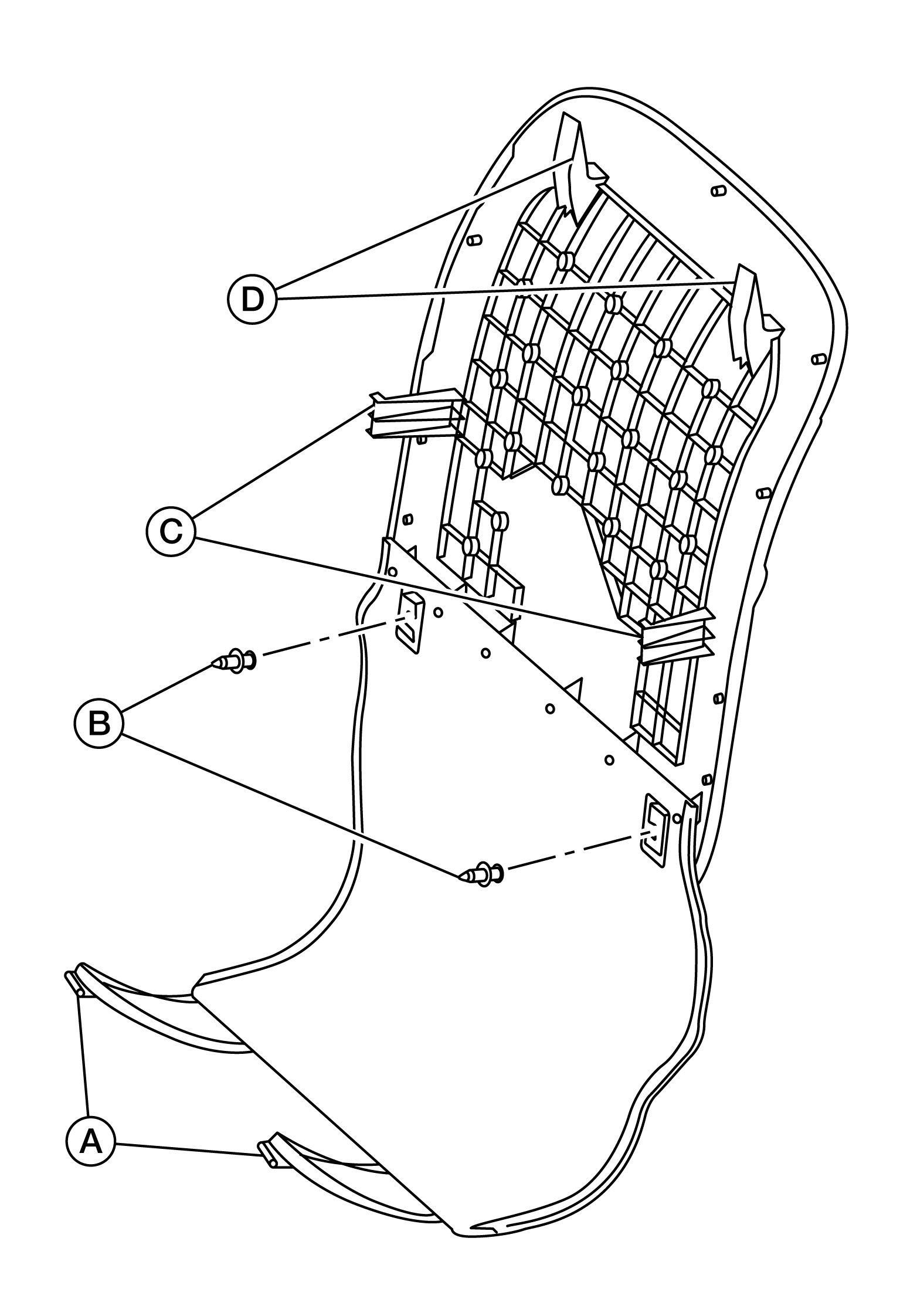

  2. Release the two J-hook retainers (A) from the seatback frame.
    G08853512Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release the seatback board lower clips (B).
    CAUTION:

    Do not reuse seatback board lower clips.

  4. Reach behind the seatback board and press the center clips (C) inward and release from the seatback frame.
  5. Pull the seatback board down releasing the upper clips (D) and remove.
