Seat Cushion Thermal Electric Device: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to REMOVAL AND INSTALLATION .
  2. Remove the tie strap and lower blower duct (3) from the seat cushion thermal electric device (2).

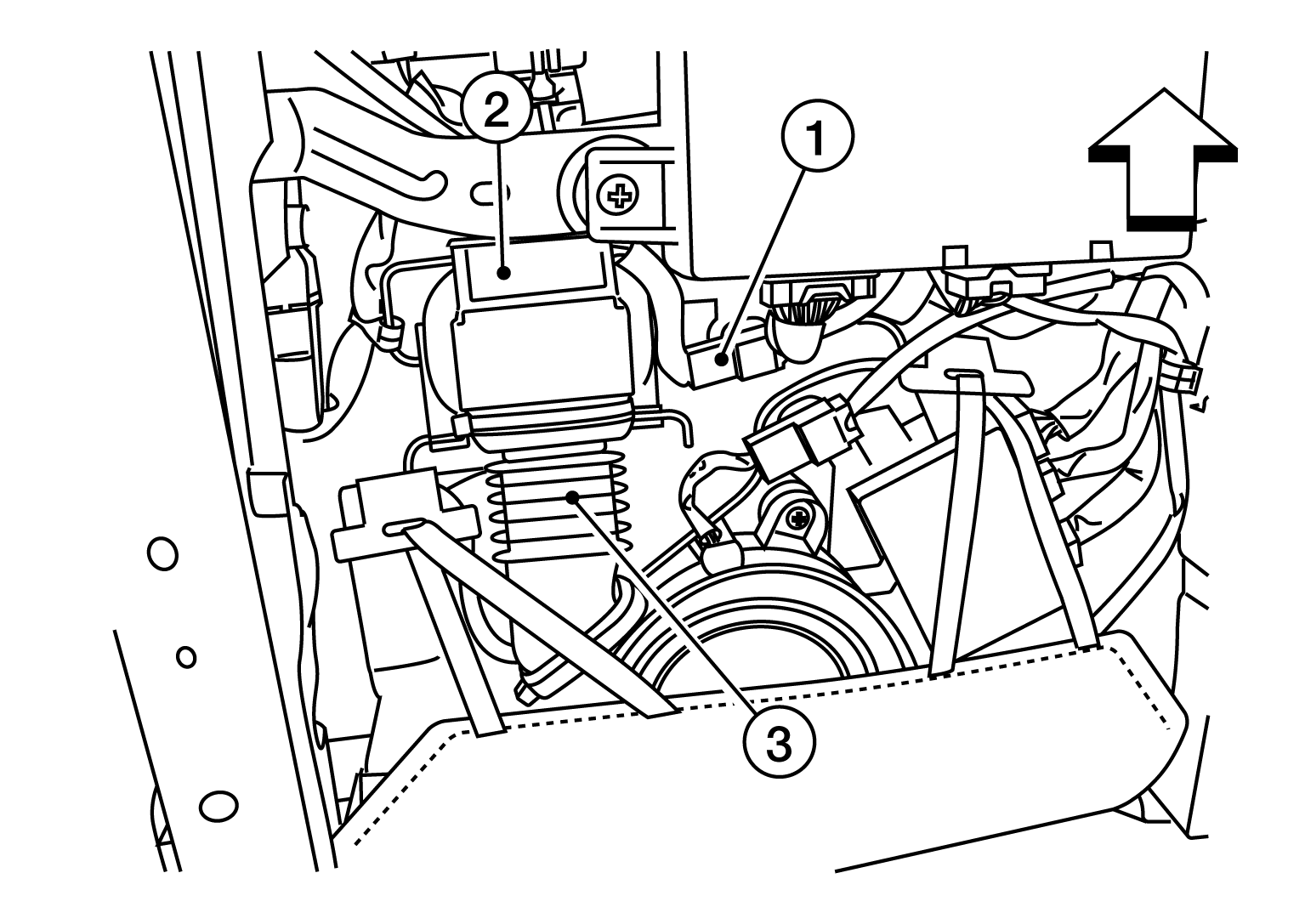

    GNSALJIA0811ZZ-811Courtesy of NISSAN NORTH AMERICA, INC.

    ARROW : Front

  3. Disconnect the harness connector (1) from the seat cushion thermal electric device (2).
  4. Release the retaining clip and remove the seat cushion thermal electric device (2) from the seat frame assembly.
