Front Seat Climate Controlled Switch: Removal

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release clip and pawls using a suitable tool and remove center console side finisher (LH/RH).
    G09425931Courtesy of NISSAN NORTH AMERICA, INC.

    SANKAKU-H : Clip

    MARU-H : Pawl

    ARROW : Front

  2. Remove front console mat from front console tray.
  3. Remove front console tray screw (A).
    G09425932Courtesy of NISSAN NORTH AMERICA, INC.
  4. Release front console tray clips using a suitable tool, disconnect the harness connector and remove.
  5. Remove shift selector handle. Refer to EXPLODED VIEW .
  6. Release shift selector finisher clips and pawls using a suitable tool, then disconnect harness connectors and remove.
  7. Release pawls using a suitable tool and remove climate controlled seat switch (1, 2).

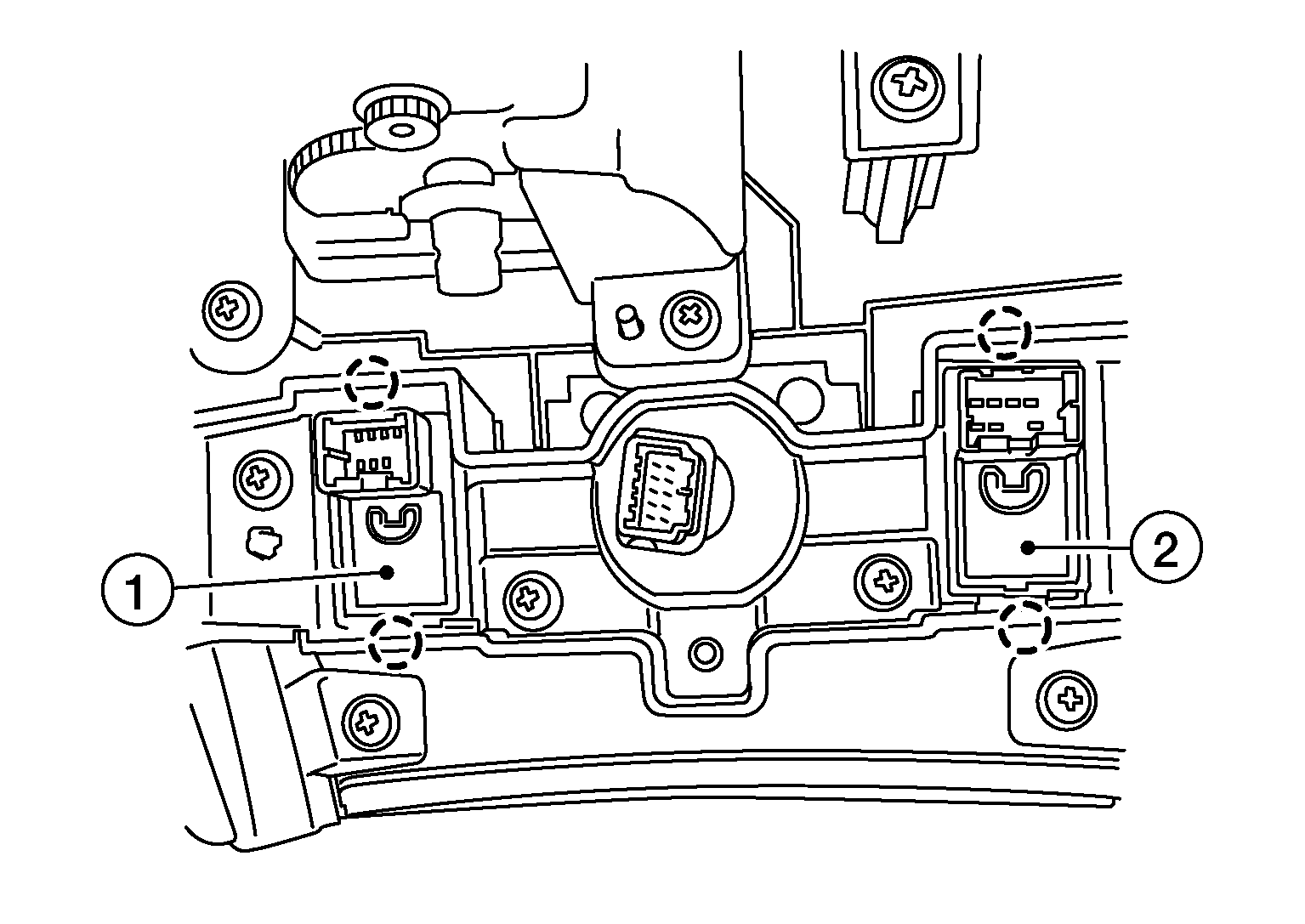

    GNSALJIA1482ZZ-482Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H :Pawl
