Component Inspection

WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

  1. CHECK CLIMATE CONTROLLED SEAT RELAY

    1. Turn ignition switch OFF.
    2. Remove climate controlled seat relay.
    3. Check the continuity between climate controlled seat relay terminals under the following conditions.

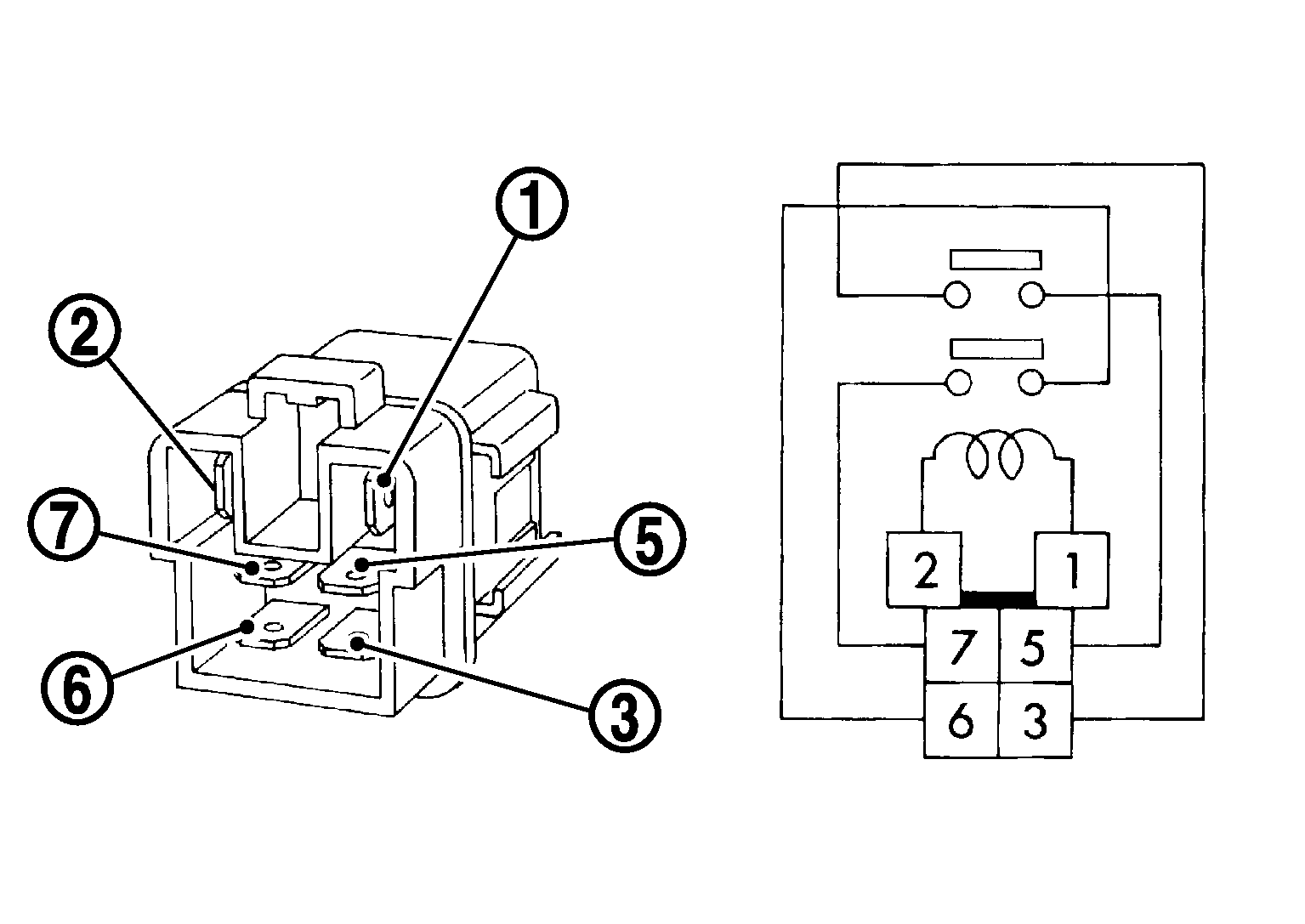

    G05974144Courtesy of NISSAN NORTH AMERICA, INC.
    Terminal Condition Continuity
    3 5 12 V direct current supply between terminals 1 and 2. Yes
    No current supply No
    6 7 12 V direct current supply between terminals 1 and 2. Yes
    No current supply No

    Is the inspection result normal?

    YES

    Inspection End.

    NO

    Replace climate controlled seat relay.
