Direct Connect
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
The following SRS components use direct-connect style harness connectors.
- Driver front air bag module
- Passenger front air bag module
- LH side curtain air bag module
- RH side curtain air bag module
- Front LH seat belt pre-tensioner
- Front RH seat belt pre-tensioner

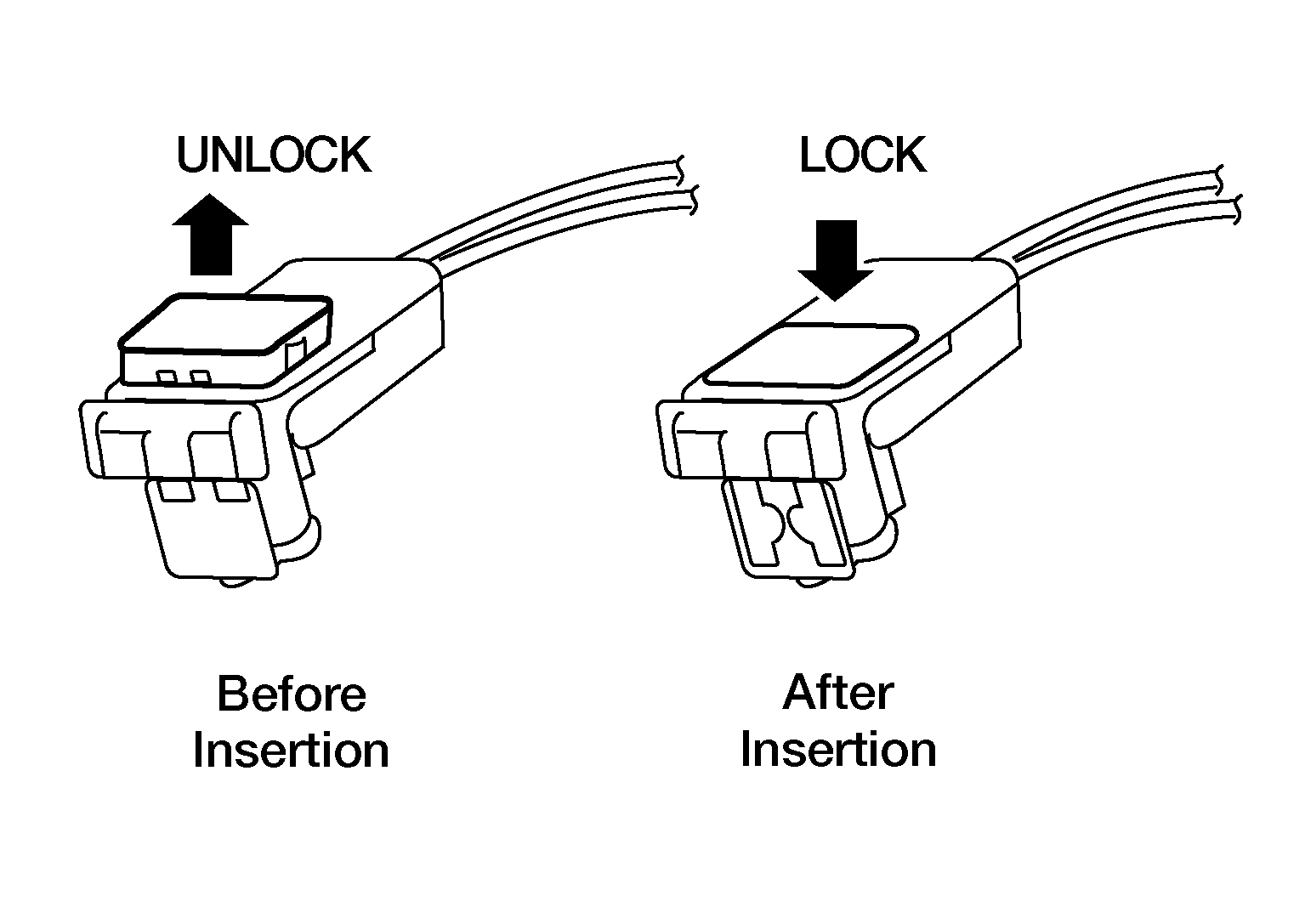

Always pull up to release locking tab prior to removing connector from SRS component.
Always push down to lock locking tab after installing connector to SRS component. When locked, the locking tab is level with the connector housing.
