Component Parts Location
WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

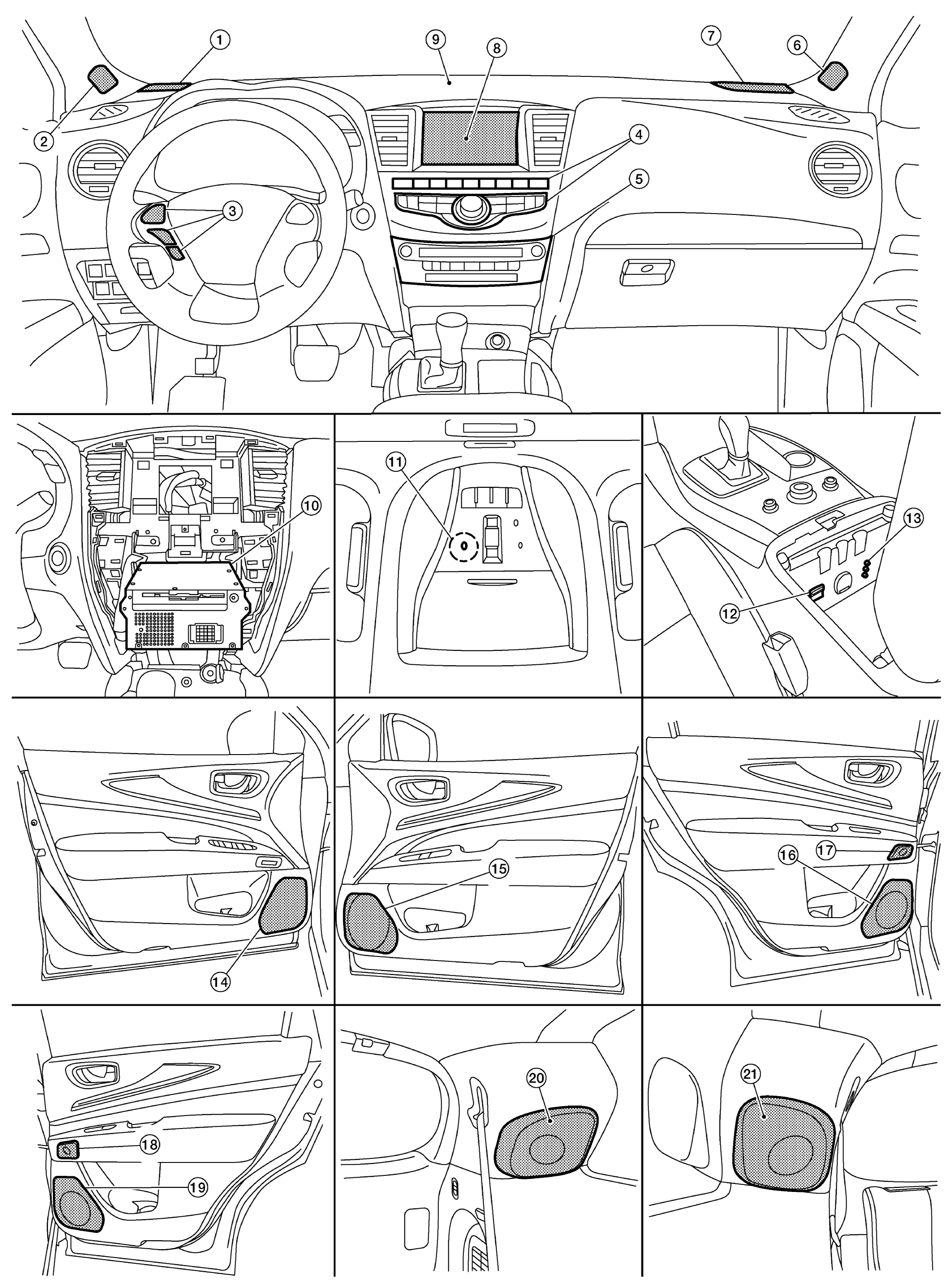

| 1. | Instrument panel tweeter LH | 2. | Front tweeter LH | 3. | Steering switch |
| 4. | Multifunction switch | 5. | Preset switch | 6. | Front tweeter RH |
| 7. | Instrument panel tweeter RH | 8. | Display unit | 9. | Center speaker |
| 10. | AV control unit (view with center stack removed) | 11. | Microphone | 12. | USB interface |
| 13. | Front auxiliary input jacks | 14. | Front door speaker LH | 15. | Front door speaker RH |
| 16. | Rear door speaker LH | 17. | Rear door tweeter LH | 18. | Rear door tweeter RH |
| 19. | Rear door speaker RH | 20. | Rear side speaker LH | 21. | Rear side speaker RH |

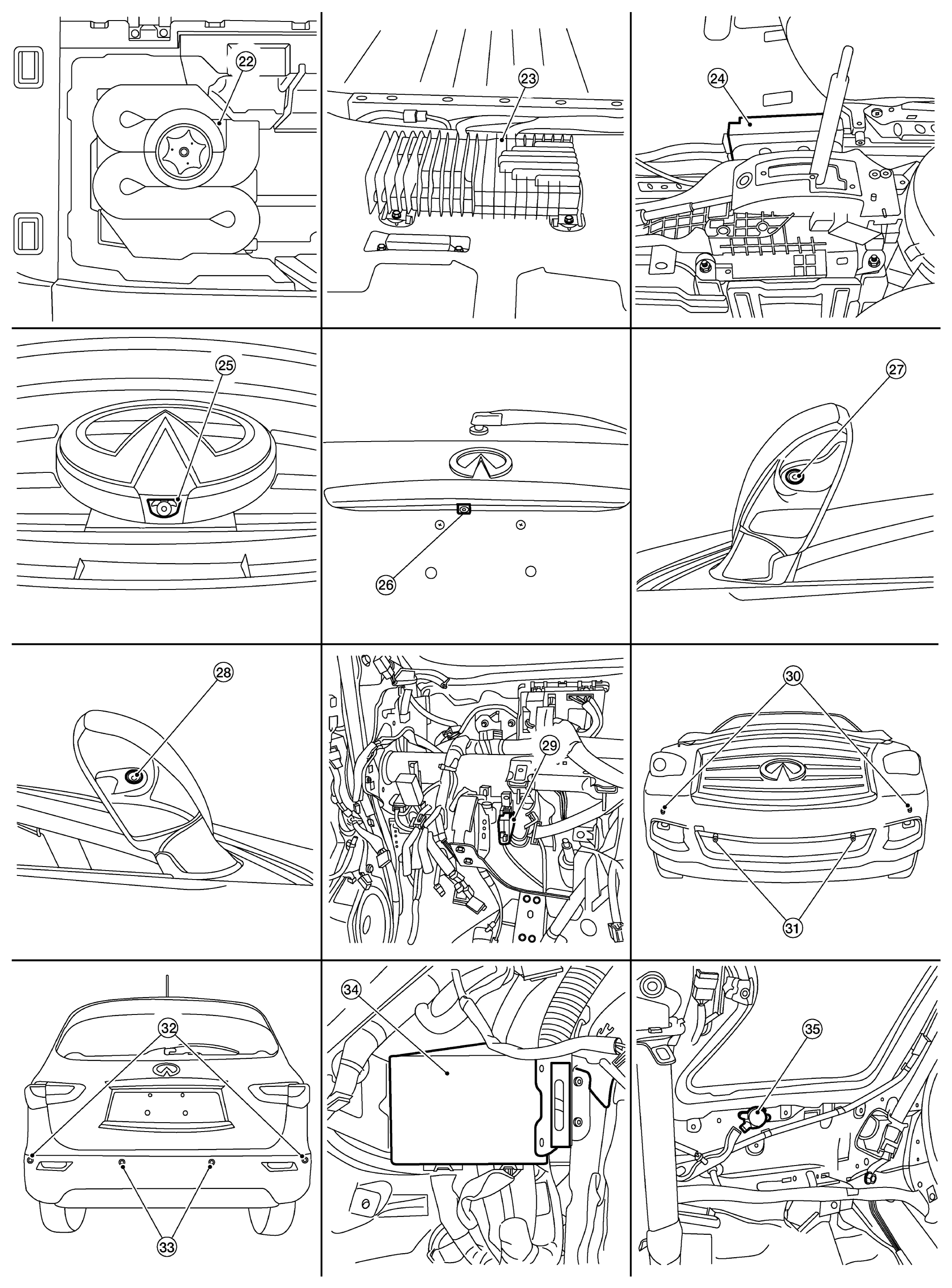

| 22. | Subwoofer | 23. | Bose speaker amp. | 24. | Around view monitor control unit |
| 25. | Front camera | 26. | Rear view camera | 27. | Door mirror LH (side camera) |
| 28. | Door mirror RH (side camera) | 29. | Sonar control unit | 30. | Front sonar sensors outer |
| 31. | Front sonar sensors inner (if equipped) | 32. | Rear sonar sensors outer | 33. | Rear sonar sensors inner (if equipped) |

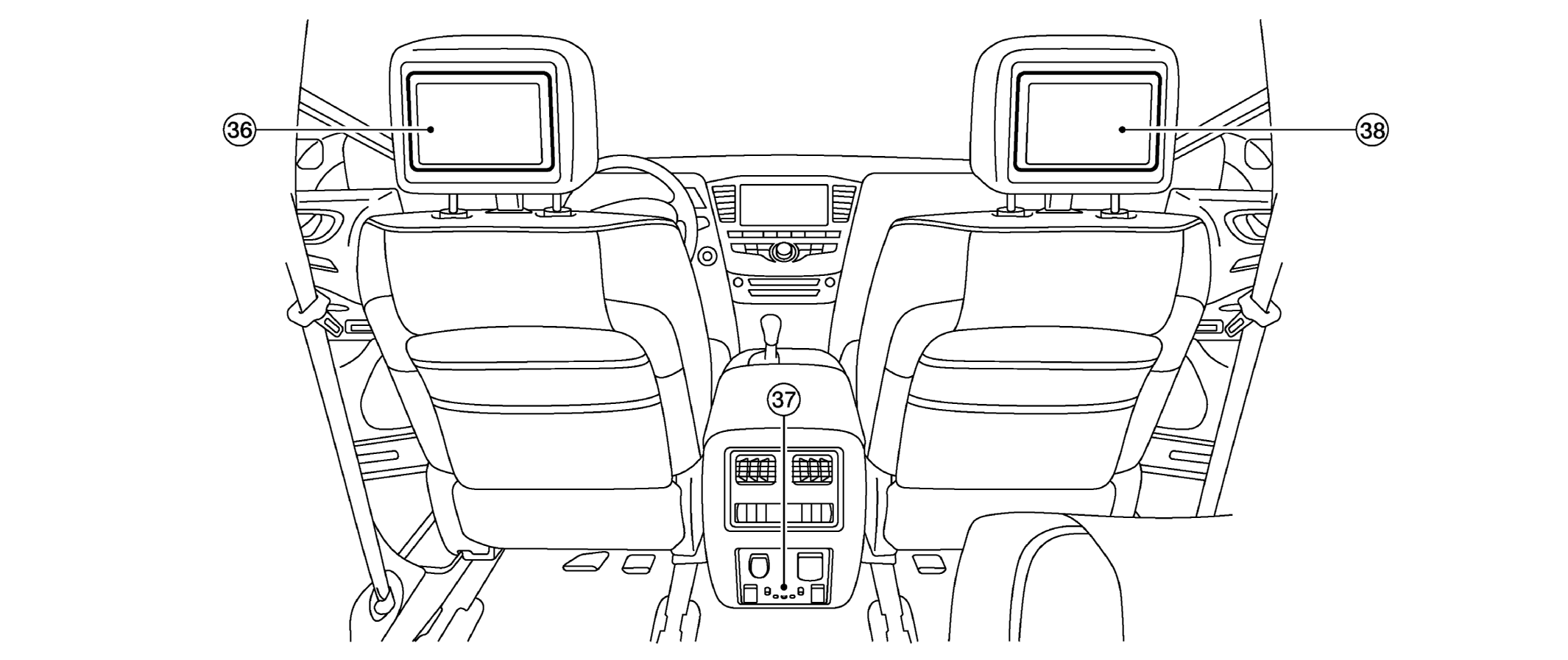

| 34. | Video distributor (if equipped) | 35. | Sonar buzzer | 36. | Headrest display unit (driver seat) (if equipped) |
| 37. | Rear auxiliary input jacks (if equipped) | 38. | Headrest display unit (passenger seat) (if equipped) |
