WARNING: This page is about a different car, the 2016 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
RH Side

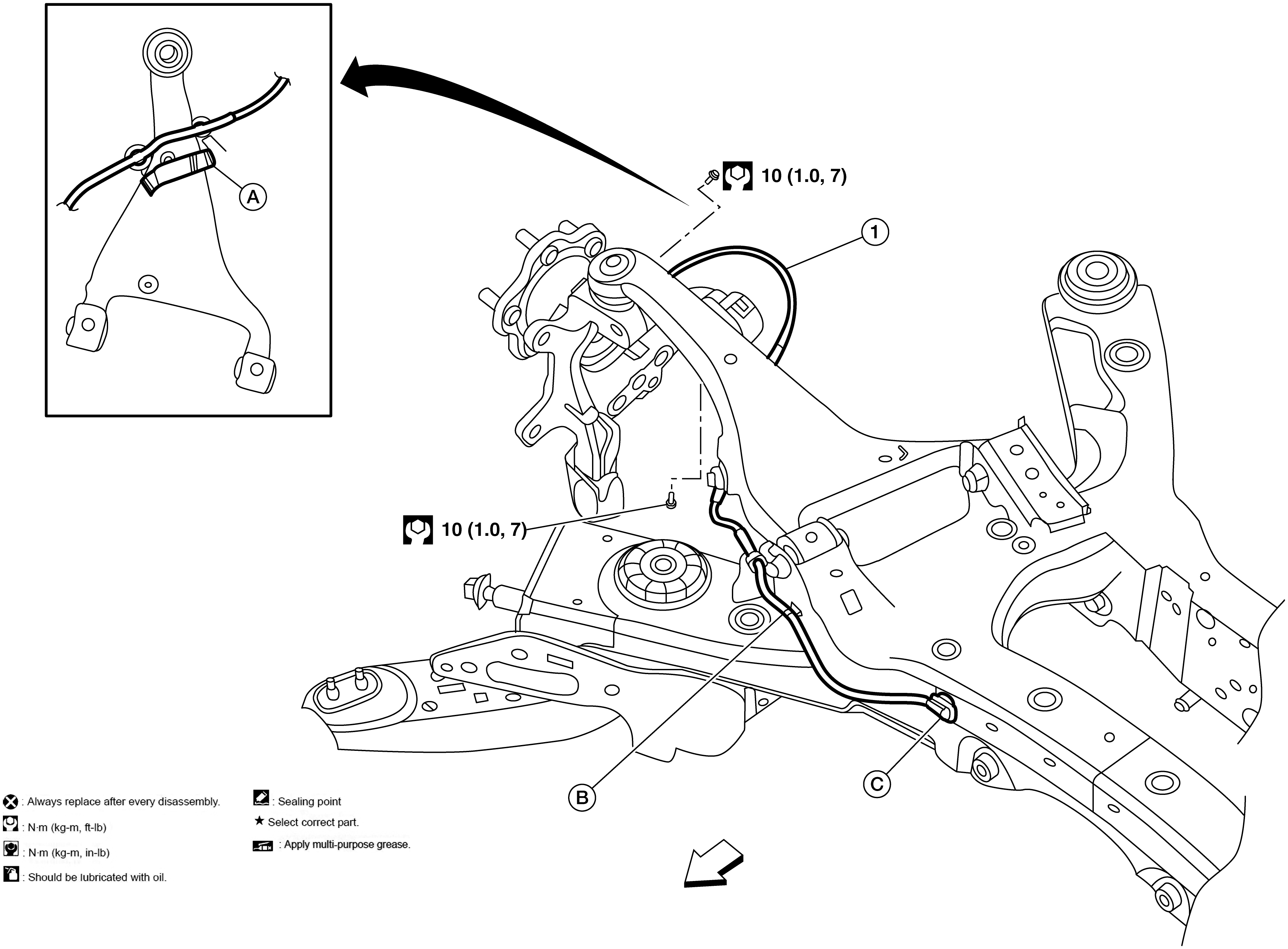

Fig 1: Rear Wheel Sensor With Torque Specifications (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Rear wheel sensor
A.
Rear wheel sensor bracket
B.
Clip
C.
Rear wheel sensor connector
Front
LH Side

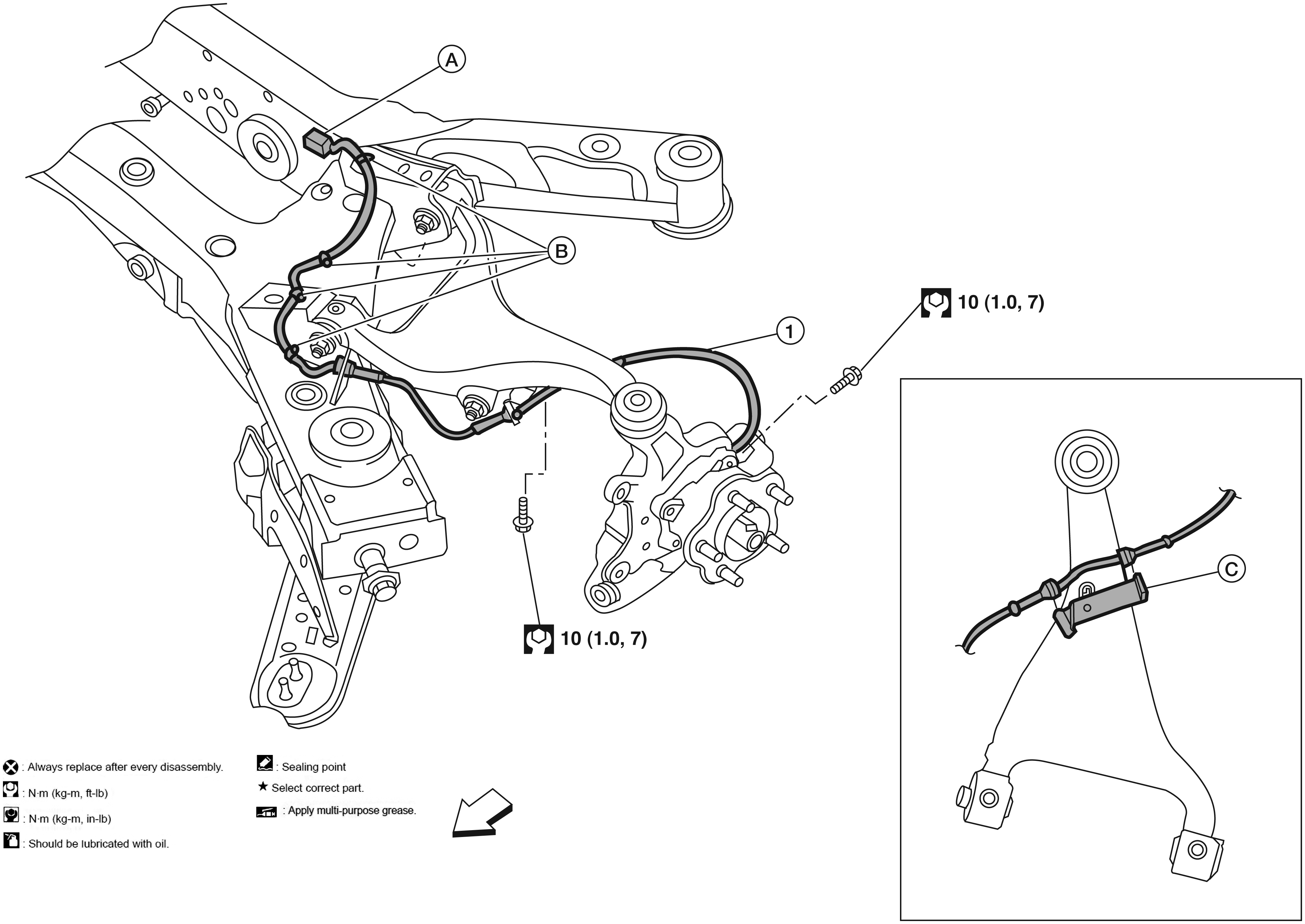

Fig 2: Rear Wheel Sensor With Torque Specifications (2 Of 2)
